Запчасти Case IH 1620 (3-04) - FUEL FILTER AND LIFT PUMP, 6T-590 ENGINE (02) - FUEL SYSTEM

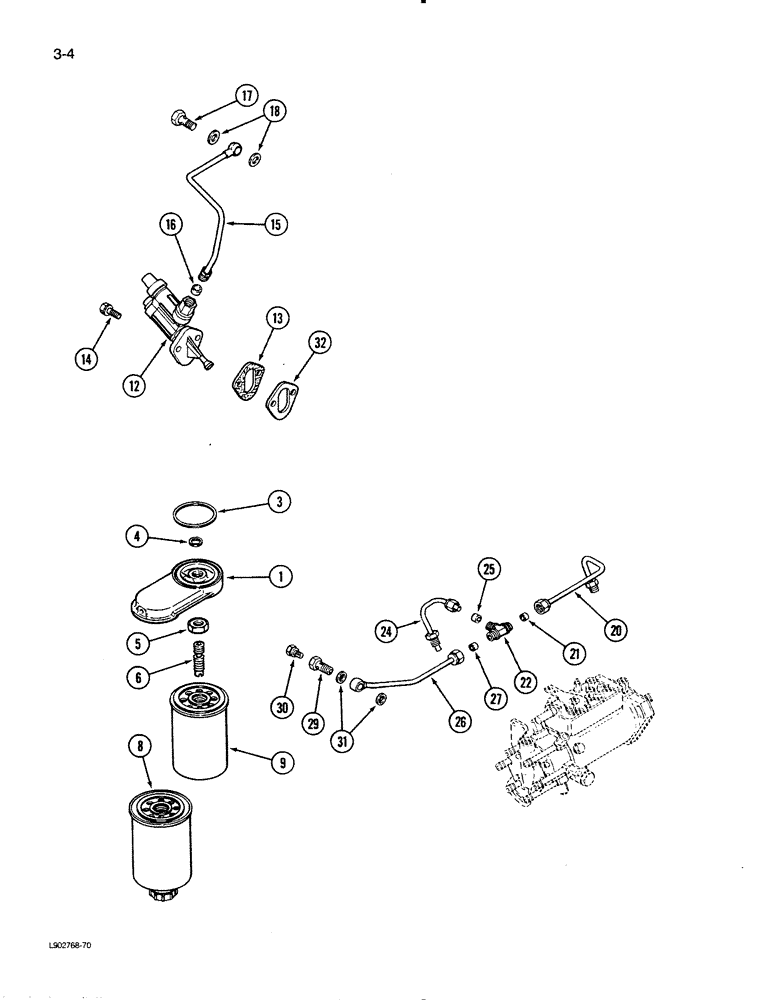

Схема запчастей Case IH 1620 - (3-04) - FUEL FILTER AND LIFT PUMP, 6T-590 ENGINE (02) - FUEL SYSTEM
25
12
14
9
30
13
32
18
31
16
27
26
22
1
21
24
17
4
15
29
6
3
20
8
5

Артикул

Название

Примечание

Количество

1

J915240

SUPPORT

HEAD ASSEMBLY - fuel filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID

1шт.

5

J903293

JAM NUT

- hex, M16 x 2 mm

1шт.

6

J903845

BANJO BOLT

ADAPTER - fuel filter

1шт.

8

J903410

FILTER

- fuel, primary

1шт.

9

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

12

J918076

PUMP

ASSEMBLY - lift, fuel

1шт.

13

J914304

GASKET

- mounting, pump

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- hex flange, 8 - 1.25 x 25 mm

2шт.

15

J914753

FUEL TUBE,8 mm OD x 292.3 mm L

TUBE ASSEMBLY - fuel supply, lift pump, Includes: Ref. 16

1шт.

16

222-103

SLEEVE,5/16" Tube

- tube, 5/16 inch

1шт.

17

J903035

BANJO BOLT

BOLT - banjo hex, 12 mm - 1.5 x 24 mm

1шт.

18

J903037

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

2шт.

20

J905363

FUEL TUBE,8 mm OD x 256.8 mm L

TUBE ASSEMBLY - fuel supply, tee to front of injection pump, Includes: Ref. 21

1шт.

21

222-103

SLEEVE,5/16" Tube

- tube, 5/16 inch

1шт.

22

222-123

TEE,5/16" Flex Tubing

(All 3 ends) 5/16" Flex Tubing

1шт.

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - hex, 1/2-24 inch thread (Discard before assembly)

3шт.

24

J905375

FUEL TUBE,8 mm OD x 137.6 mm L

TUBE ASSEMBLY - fuel supply, tee to rear of injection pump, Includes: Ref. 25

1шт.

25

222-103

SLEEVE,5/16" Tube

- tube, 5/16 inch

1шт.

26

J905364

FUEL TUBE

TUBE ASSEMBLY - fuel supply, filter to tee, Includes: Ref. 27

1шт.

27

222-103

SLEEVE,5/16" Tube

- tube, 5/16 inch

1шт.

J905860

BANJO BOLT

BOLT - banjo hex, special, Includes: Ref. 29 and 30

1шт.

29

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex special (Order J905860)

1шт.

30

NSS

NOT SOLD SEPARAT

SCREW - hex special, vent (Order J905860)

1шт.

31

J918191

PACKING RING

WASHER - sealing, 12 x 18 x 1 mm

2шт.

32

J914284

SPACER

- lift pump mounting

1шт.

Выбрано товаров: 27
