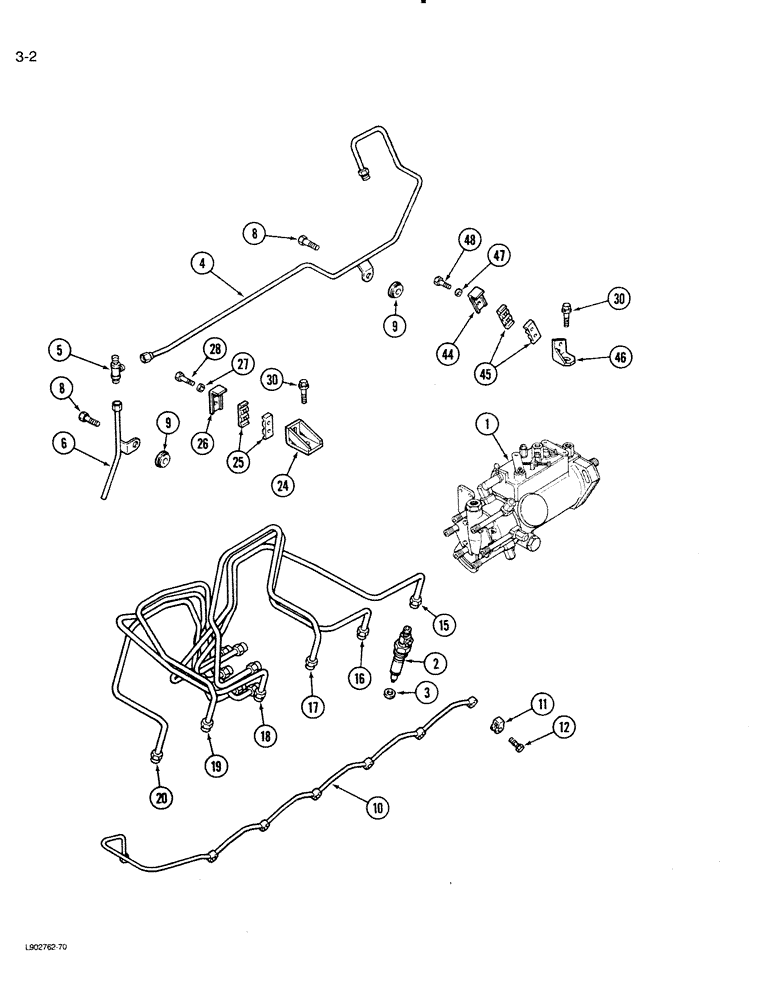

Запчасти Case IH 1620 (3-02) - FUEL INJECTION SYSTEM, 6T-590 ENGINE (02) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel (See Figure 3-6)

6шт.

3

J900808

SEAL

GASKET - injector

6шт.

4

J905709

FUEL TUBE

TUBE ASSEMBLY - fuel drain

1шт.

5

222-121

TEE,3/16", Flex Tubing

3/16", Flex Tubing - connecting, 7/16"-24 thd (Remove and discard hex nuts and sleeves at assembly)

1шт.

6

J905692

FUEL TUBE

TUBE ASSEMBLY - fuel return

1шт.

8

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- hex flange head, 8 mm - 1.25 x 20 mm

2шт.

9

J900267

SEAL

CUSHION - mounting, tube

2шт.

10

J909696

TUBE

TUBE ASSEMBLY - manifold, fuel drain

1шт.

11

J903380

SEAL

- connector

6шт.

12

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

15

J914047

FUEL TUBE

TUBE ASSEMBLY - fuel injector, No. 1 cylinder

1шт.

16

J914048

FUEL TUBE

TUBE ASSEMBLY - fuel injector, No. 2 cylinder

1шт.

17

J914049

FUEL TUBE

TUBE ASSEMBLY - fuel injector, No. 3 cylinder

1шт.

18

J914050

FUEL TUBE

TUBE ASSEMBLY - fuel injector, No. 4 cylinder

1шт.

19

J914051

FUEL TUBE

TUBE ASSEMBLY - fuel injector, No. 5 cylinder

1шт.

20

J914052

FUEL TUBE

TUBE ASSEMBLY - fuel injector, No. 6 cylinder

1шт.

A77494

BRACKET

ASSEMBLY - fuel tube, Includes: Ref. 24 - 28

2шт.

24

J906584

BRACE

BRACKET - fuel tube

1шт.

25

J914339

CLAMP

ISOLATOR - fuel tube

2шт.

26

J904519

SUPPORT

PLATE - clamp

1шт.

27

J903723

WASHER

- lock, 5 mm

2шт.

28

J903609

SCREW

BOLT - hex

2шт.

30

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Intake manifold Hex Flg Hd, M8 x 1.25 x 25

2шт.

A77529

BRACKET

ASSEMBLY - fuel tube, Includes: Ref. 44 - 48

1шт.

44

J904519

SUPPORT

PLATE - clamp

1шт.

45

J914339

CLAMP

ISOLATOR - fuel tube

2шт.

46

J906651

BRACE

- fuel tube

1шт.

47

J903723

WASHER

- flat

2шт.

48

J903609

SCREW

- hex cap

2шт.
