Запчасти Case IH 1620 (2-52) - ENGINE RAILS AND SUPPORTS (01) - ENGINE

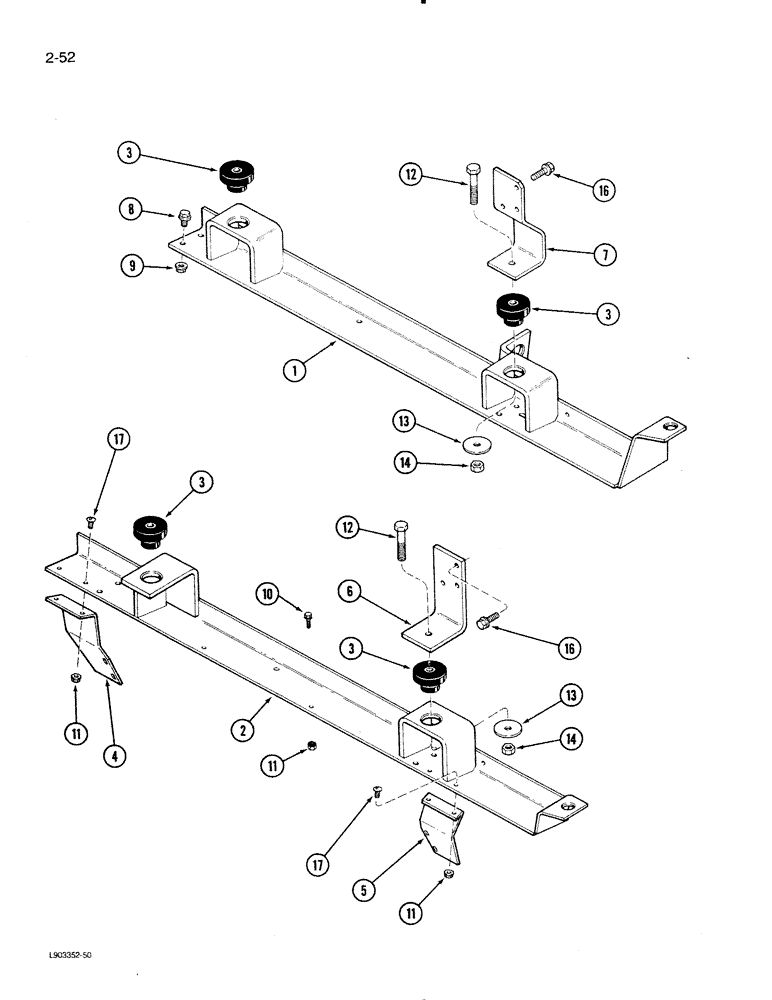

Схема запчастей Case IH 1620 - (2-52) - ENGINE RAILS AND SUPPORTS (01) - ENGINE
7
16
16
8
2
3
5
12
14
3
3
17
1
3
11
6
13
13
9
11
11
14
12
4
17
10

Артикул

Название

Примечание

Количество

1

1346932C1

RAIL ASSY.

RAIL ASSEMBLY - engine left

1шт.

2

1346934C1

RAIL ASSY.

RAIL ASSEMBLY - engine right

1шт.

3

194915C2

ISOLATOR,13.72mm ID x 45.97mm OD x 50.04mm L

INSULATOR - engine, front and rear

4шт.

4

1330005C1

SUPPORT

- engine rail, left

1шт.

5

1330006C1

SUPPORT

- engine rail, right

1шт.

6

1329937C1

SUPPORT

- engine front, right

1шт.

7

1329938C1

SUPPORT

- engine front, left

1шт.

8

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex head flange, 1/2 NC x 1 inch

8шт.

9

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

8шт.

10

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex head flange, 3/8 NC x 3/4 inch

2шт.

11

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flange lock, 3/8 inch NC

10шт.

12

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

4шт.

13

107813R1

WASHER

- flat, 21/32 x 2-1/2 x 11/64 inch

4шт.

14

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

16

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- hex head flange, 12 mm - 1.75 x 25 mm Grade 10.9

6шт.

17

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

8шт.

Выбрано товаров: 16
