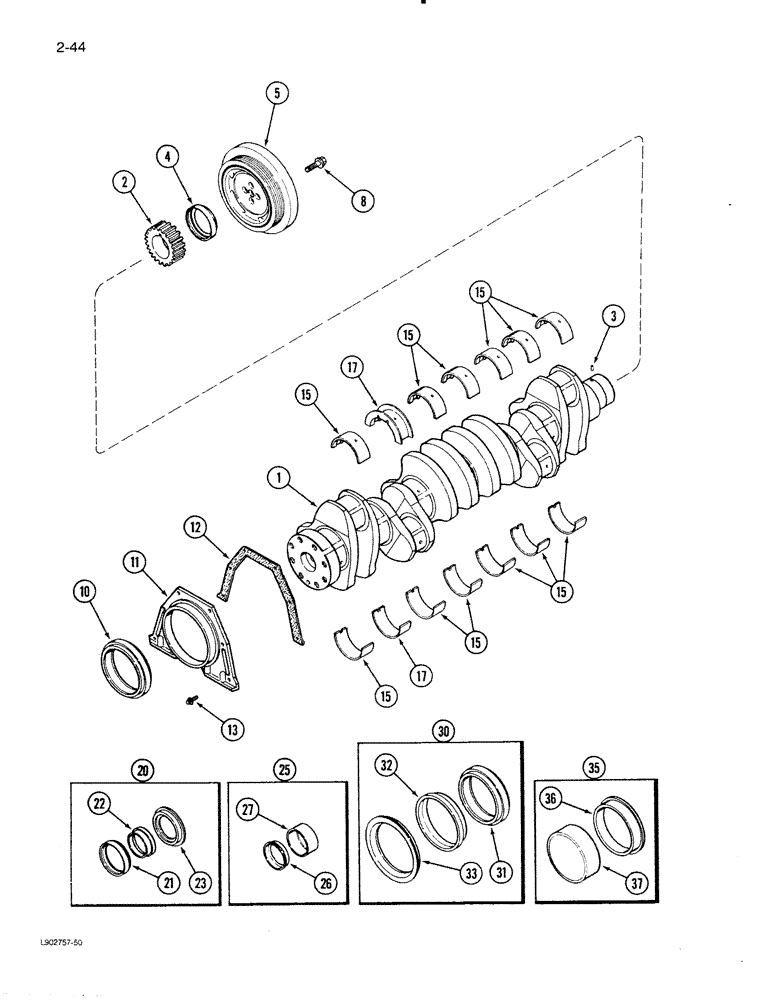

Запчасти Case IH 1620 (2-44) - CRANKSHAFT, 6T-590 ENGINE (01) - ENGINE

1

J918324

CRANKSHAFT

CRANKSHAFT ASSEMBLY - engine (New), Includes: Ref. 1 and 2

1шт.

JR918324

CRANKCASE

CRANKSHAFT ASSEMBLY - engine (Remanufactured) (North America only), Includes: Ref. 1 and 2

1шт.

JC918324

CRANK

RETURN NUMBER - crankshaft assembly (Use this part number to return crankshaft core for credit), Includes: Ref. 1 and 2

1шт.

1989096C2R

ENGINE, EXCHANGE

ENGINE (EXCHANGE) Remanufactured, For N.A. Only

1шт.

2

J912883

PINION

GEAR - crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

PIN - dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front (Order Ref. 20)

1шт.

5

J914454

DAMPER

PULLEY - crankshaft dampener

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

BOLT - hex flange head, 12 x 36 mm

4шт.

10

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft rear (Order Ref. 30)

1шт.

11

J913447

SEAL RETAINER

RETAINER - rear seal

1шт.

12

J914386

GASKET

GASKET - seal retainer

1шт.

13

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

BOLT, Hex Flg, M6 x 15, 8.8, Full Thd

6шт.

15

A77405

CRANKSHAFT BEARING

BEARING KIT - main (Set) upper and lower, standard

6шт.

15

A77472

BEARING SET

BEARING KIT - main (Set) upper and lower, 0.25 mm undersize

6шт.

15

A77474

BEARING SET

BEARING KIT - main (Set) upper and lower, 0.5 mm undersize

6шт.

15

A77476

BEARING SET

BEARING KIT - main (Set) upper and lower, 0.75 mm undersize

6шт.

15

A77478

BEARING SET

BEARING KIT - main (Set) upper and lower, 1.0 mm undersize

6шт.

17

A77406

CRANKSHAFT BEARING

BEARING KIT - thrust, main (Set) upper and lower, standard

1шт.

17

A77473

THRUST BEARING

BEARING KIT - thrust, main (Set) upper and lower, 0.25 mm undersize

1шт.

17

A77475

THRUST BEARING

BEARING KIT - thrust, main (Set) upper and lower, 0.5 mm undersize

1шт.

17

A77477

THRUST BEARING

BEARING KIT - thrust, main (Set) upper and lower, 0.75 mm undersize

1шт.

17

A77479

THRUST BEARING

BEARING KIT - thrust, main (Set) upper and lower, 1.0 mm undersize

1шт.

20

J904353

GASKET KIT

SEAL KIT - oil, crankshaft front, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

22

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

25

J906080

PACKAGE, REPAIR

WEAR SLEEVE KIT - crankshaft front, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

27

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

30

J909410

GASKET KIT

SEAL KIT - oil, crankshaft rear, Includes: Ref. 31 - 33

1шт.

31

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

32

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

33

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

35

J906081

SLEEVE

WEAR SLEEVE KIT - crankshaft rear, Includes: Ref. 36 and 37

1шт.

36

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

37

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.
