Запчасти Case IH 1620 (2-34) - CYLINDER HEAD AND VALVE MECHANISM, 6T-590 ENGINE (01) - ENGINE

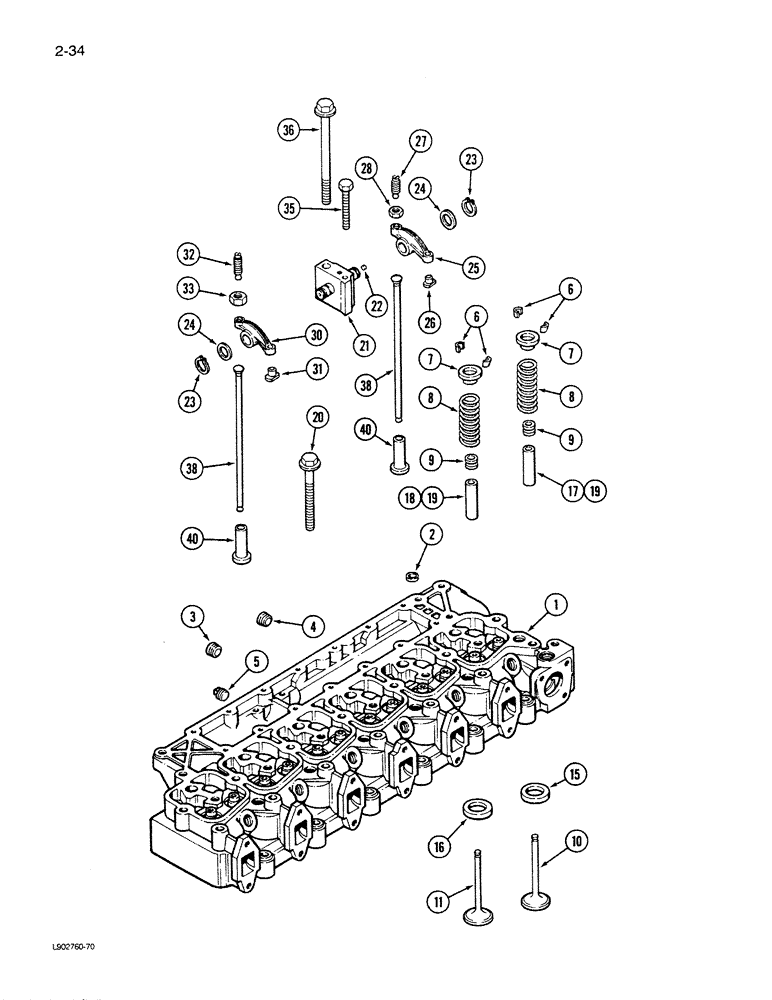

Схема запчастей Case IH 1620 - (2-34) - CYLINDER HEAD AND VALVE MECHANISM, 6T-590 ENGINE (01) - ENGINE
40
31
3
32
8
7
15
18
30
8
17
1
4
40
20
5
36
6
19
26
23
38
11
21
22
35
9
6
38
24
27
25
7
28
24
9
2
19
23
10
33
16

Артикул

Название

Примечание

Количество

JR910276

HEAD

ASSEMBLY - cylinder (Remanufactured) (North America Only), Includes: Ref. 1 - 11

1шт.

JC910276

CORE-CYLINDER HEAD

RETURN NUMBER - Use this part number to return cylinder head core for credit, Includes: Ref. 1 - 11

1шт.

J910276

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder (New), Includes: Ref. 1 - 11

1шт.

1

J913391

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, Includes: Ref. 2

1шт.

2

J902606

PLUG

- expansion, 21 mm O.D.

5шт.

3

A77429

PLUG

- hex socket pipe, 1/2-14 PT

5шт.

4

J906619

PLUG,1/8" - 27

- hex socket pipe, 1/8-27 PT

2шт.

5

A77505

PLUG

- hex socket pipe, 1/2-18 inch PT

2шт.

6

CASJ900250

RETAINER

KEEPER - valve

24шт.

7

J900299

RETAINER

- valve spring

12шт.

8

J900276

VALVE SPRING

SPRING - valve

12шт.

9

J901097

SEAL

- valve

12шт.

10

J901117

VALVE

- intake

6шт.

11

J901607

VALVE

- exhaust

6шт.

15

J906854

SEAT, VALVE

SEAT - insert, intake valve (Service repair only)

6шт.

16

J904105

SEAT, VALVE

SEAT - insert, exhaust valve (Service repair only)

6шт.

17

J904408

GUIDE

- valve, intake (Service repair only)

6шт.

18

J904409

GUIDE

- valve, exhaust (Service repair only)

6шт.

19

J906206

GUIDE

- valve, intake and exhaust 11 mm O.D. (Service repair only)

12шт.

20

J903938

BOLT

- hex flange head, 12 mm - 1.75 x 70 mm

6шт.

20

J903939

BOLT

- hex flange head, 12 mm - 1.75 x 120 mm

14шт.

21

J910814

SUPPORT

AND SHAFT ASSEMBLY - rocker arm, Includes: Ref. 22

6шт.

22

J907555

PLUG

- rocker arm shaft, 1/4-18 PT

1шт.

23

J900242

SNAP RING

RING - retaining, rocker arm

12шт.

24

J900245

WASHER

- thrust, rocker arm

12шт.

25

J910811

ROCKER

ARM ASSEMBLY - rocker, intake, Includes: Ref. 26

6шт.

26

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 inch NF x 40 mm

1шт.

28

25-116

NUT,Hex, 3/8"-24, G5

- hex steel, 3/8 inch NF

1шт.

30

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust, Includes: Ref. 31

6шт.

31

NSS

NOT SOLD SEPARAT

INSERT - rocker arm

1шт.

32

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set adjusting, 3/8 inch NF x 40 mm

1шт.

33

25-116

NUT,Hex, 3/8"-24, G5

- hex steel, 3/8 inch NF

1шт.

35

813-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

- hex, 8 - 1.25 x 75 mm

6шт.

36

J903940

BOLT

- hex flange head, 12 mm - 1.75 x 180 mm

6шт.

38

J904679

PUSH ROD

ROD - push, rocker arm

12шт.

40

J907240

TAPPET

- valve, push rod

12шт.

Выбрано товаров: 37
