Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION

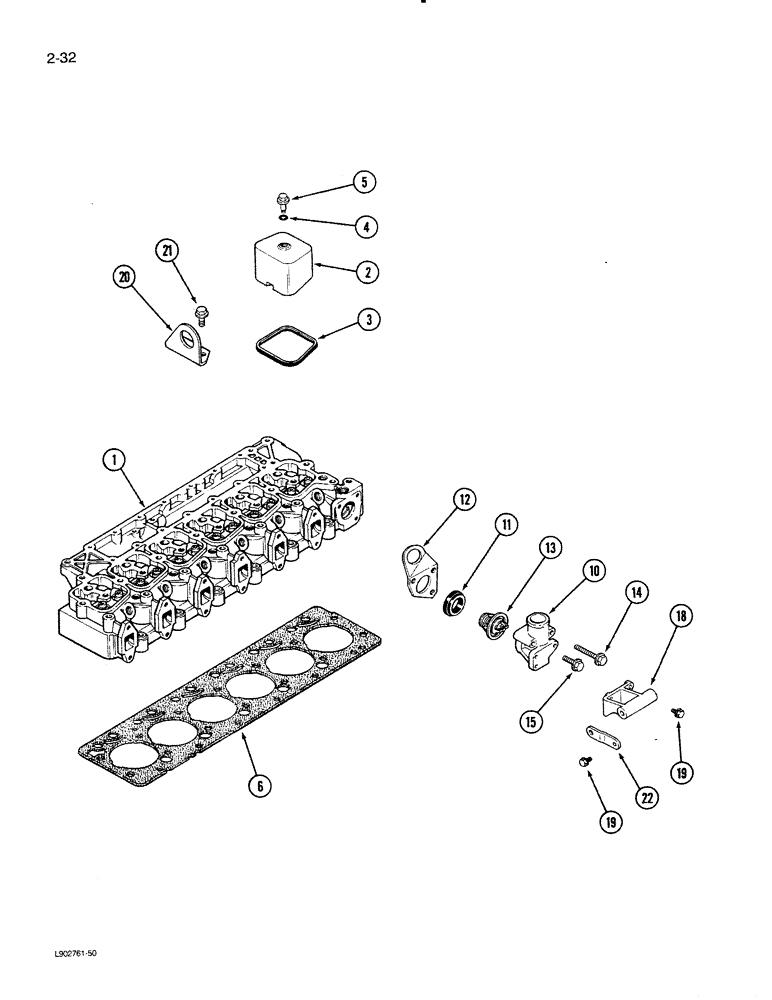

HEAD - cylinder (See Figure 2-34)
1шт.
2
J902604
COVER
- rocker
6шт.
3
J902666
GASKET
SEAL - rocker cover
6шт.
5
J907049
BOLT,Hex
- special, 8 mm - 1.25 x 21.25 mm
6шт.
6
J917358
GASKET
- head, standard (1-Notch)
1шт.
6
J917359
GASKET
- head, 0.23 mm thicker (2-Notches)
1шт.
6
J917360
GASKET
- head, 0.51 mm thicker (3-Notches)
1шт.
10
J914409
HOUSING
- thermostat
1шт.
11
J903301
GASKET
- housing, thermostat
1шт.
12
J903757
BRACKET
- lifting, front, thermostat , housing
1шт.
13
J917324
THERMOSTAT
- water, 95 degree C, housing
1шт.
14
845-8070
BOLT,Hvy Hex, M8 x 70mm, Cl 8.8
- heavy hex flange, 8 - 1.25 x 70 mm, Thermostat, housing
2шт.
15
845-8035
BOLT,Hvy Hex, M8 x 35mm, Cl 8.8
- heavy hex flange, 8 - 1.25 x 35 mm, Thermostat, housing
1шт.
18
J917484
BRACE
SUPPORT - alternator mounting, thermostat and housing
1шт.
19
845-8025
BOLT,Hex Flg, M8 x 25mm, Cl 8.8
- hex flange, 8 - 1.25 x 25 mm, Thermostat and housing
4шт.
20
J908118
BRACKET
- lifting, rear, thermostat and housing
1шт.
21
813-12025
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd
- hex, 12 mm - 1.75 x 25 mm, thermostat and housing
2шт.
22
J903104
PLATE
BRACE - alternator mounting, thermostat and housing
1шт.
Выбрано товаров: 19
