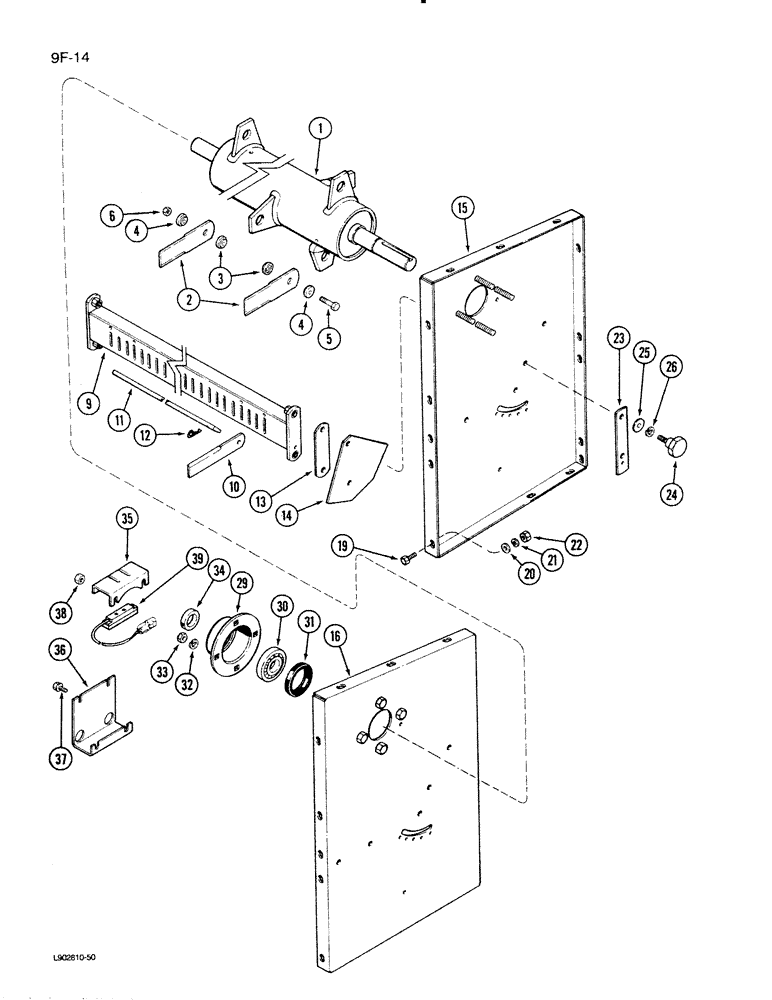

Запчасти Case IH 1620 (9F-14) - STRAW CHOPPER ROTOR, NOT NORTH AMERICA (19) - STRAW SPREADER & CHOPPER

1

1311854C91

ROTOR

ASSEMBLY - chopper, Includes: Ref. 2 - 6

1шт.

2

1322241C1

BLADE

- rotor

36шт.

3

1322242C1

SPACER

- blade

36шт.

4

1322243C1

BUSHING

- pivot

36шт.

5

828-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

- hex, 10 x 50 mm, Grade 10.9

18шт.

6

832-41310

NUT,M10 x 1.5, Cl 10

NUT, LOCK, M10 x 1.5, Cl 10

18шт.

1311858C91

BAR

ASSEMBLY - knife, complete, Includes: Ref. 9 - 12

1шт.

9

1311859C1

SUPPORT

BAR ASSEMBLY - knife

1шт.

10

1322233C1

KNIFE

BLADE - concave

33шт.

11

1311860C1

ROD

- blade, knive

33шт.

12

1322252C1

HAIR PIN COTTER

- quick

1шт.

13

1322248C1

BLOCK

SHIM - bar

2шт.

14

1957329C1

BLOCK

SHIM - locking, bar

2шт.

15

1311856C1

SUPPORT

- chopper, right

1шт.

16

1311857C1

SUPPORT

- chopper, left

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

30шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

30шт.

21

492-11038

LOCK WASHER,3/8"

30шт.

22

425-106

NUT,3/8"-16, Cl 5

30шт.

23

1322249C1

LINK

ARM - control

2шт.

24

1322232C1

BUTTON,Screw, M12 x 45mm

SCREW - adjusting

4шт.

25

495-81163

WASHER,17/32" x 1 1/2" x .120"

- flat, 17/32 x 1-1/2 x 7/64 inch

4шт.

26

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

29

936130R1

FLANGE

- bearing, shaft

2шт.

30

1322228C91

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

ASSEMBLY - shaft

2шт.

31

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

- seal, bearing

2шт.

32

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

8шт.

33

829-1312

NUT,M12 x 1.75, Cl 10

hex 12 mm - 1.75, grade 10

8шт.

34

1322251C91

COLLAR

COLLAR ASSEMBLY - locking

2шт.

Ref # 34, part number 1322251C91, is collar assy. The bearing is part number is 96328C1.

1шт.

35

181209C1

SUPPORT

- sensor

1шт.

36

181208C2

COVER

SUPPORT - shaft

1шт.

37

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

2шт.

38

25933R1

JAM NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC

4шт.

39

245410C1

TRANSMITTER

SWITCH ASSEMBLY - monitor

1шт.
