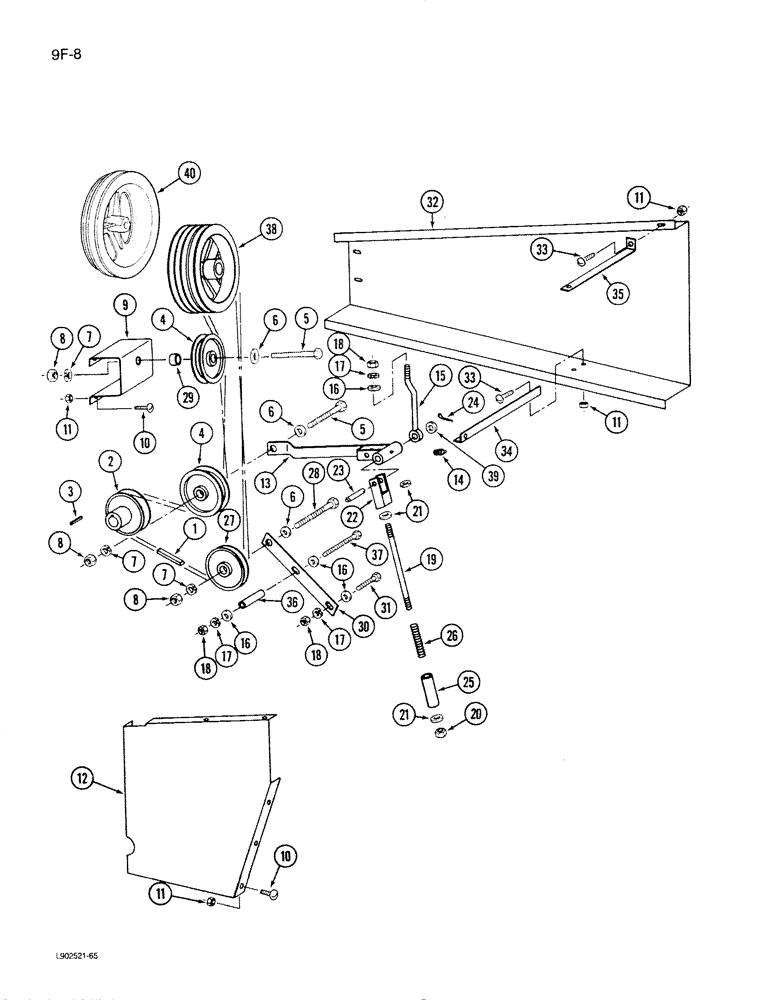

Запчасти Case IH 1620 (9F-08) - STRAW CHOPPER DRIVE (19) - STRAW SPREADER & CHOPPER

1

182945C1

BELT,22.33" W x 3824.69" L

V-BELT , Drive 22.33" W x 3824.69" L

1шт.

2

182899C1

PULLEY

- driven, 7-25/32 inch O.D.

1шт.

3

Q3952

KEY,Gib, 3/8" Sq x 2 3/4"

- gib, 3/8 x 2-3/4 inch

1шт.

4

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

- drive, 8-3/4 inch O.D.

2шт.

5

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch

2шт.

6

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 7/64 inch

1шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

8

425-1010

NUT,5/8"-11, G5

3шт.

9

181083C1

SUPPORT ASSY.

BRACKET - idler

1шт.

10

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted, 3/8 NC x 1 inch

9шт.

11

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, 3/8 inch NC

14шт.

12

181049C2

SUPPORT ASSY.

SUPPORT - idler

1шт.

13

1303253C1

ARM ASSY.

ARM - pivot

1шт.

14

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

15

1303057C1

ROD

- tightener

1шт.

16

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

5шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

19

1303170C1

ROD

- tightener

1шт.

20

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

3шт.

21

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

3шт.

22

144245

ADJUSTABLE CLEVIS,1/2"-20 x 3"

CLEVIS - rod

1шт.

23

49127H

CLEVIS PIN,1/2" x 2 9/16"

PIN - clevis, 1/2 x 2-9/16 inch

1шт.

24

432-620

COTTER PIN,3/32" x 1 1/4"

3/32" x 1 1/4"

1шт.

25

27631R1

SPACER,1 1/2"X-Strng Pipe x .600"

- spring, 1-9/32 x 1-1/2 x 5 inch

1шт.

26

PO3A

SPRING

- rod

1шт.

27

181125C1

PULLEY

- idler, 8 inch O.D.

1шт.

28

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

29

549154R1

SPACER,7/8" Tube x 7/16"

- pulley

2шт.

30

1303046C1

BAR

- support

1шт.

31

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

32

181135C1

SHIELD

- drive

1шт.

33

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

5шт.

34

181136C1

ANGLE

SUPPORT - shield

1шт.

35

181137C1

SUPPORT

- shield

1шт.

36

517899R1

SPACER,1/2" X-Strng Pipe x 2"

- bar, 35/64 x 27/32 x 2 inch

1шт.

37

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 x 3-1/4 inch

1шт.

38

1303206C1

PULLEY

- drive

1шт.

39

21753R1

WASHER

- flat, 25/32 x 1-1/2 x 3/64 inch

1шт.

40

1325051C1

PULLEY

- driven (Not North American)

1шт.
