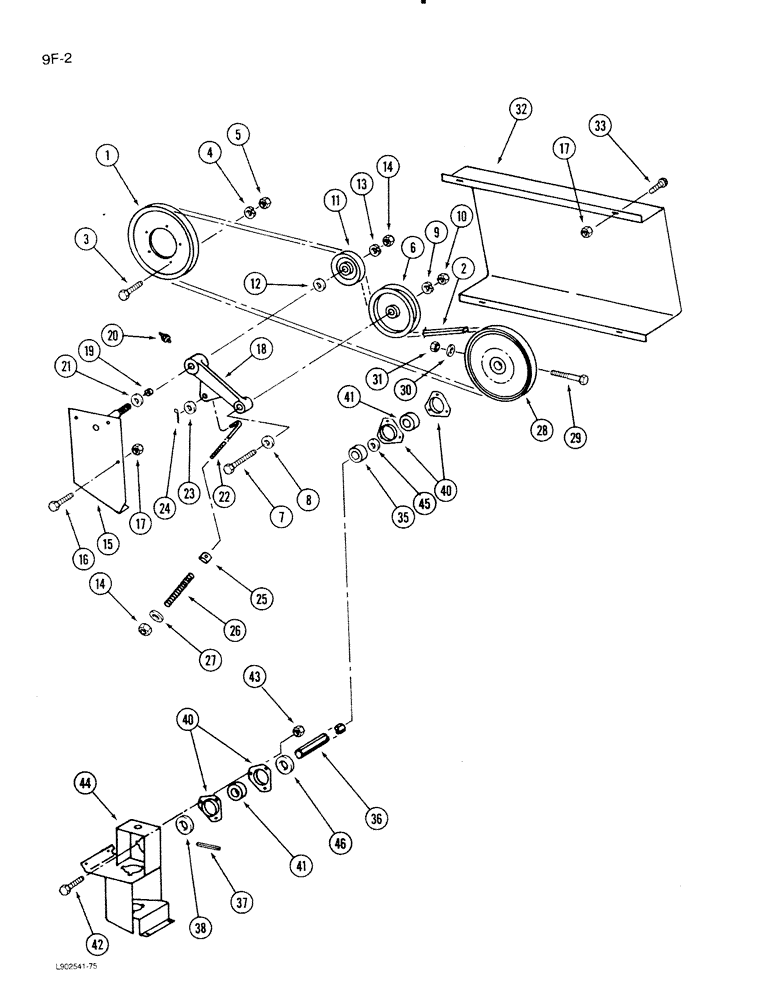

Запчасти Case IH 1620 (9F-02) - STRAW SPREADER DRIVE (19) - STRAW SPREADER & CHOPPER

1

566516R91

PULLEY ASSY.

PULLEY - drive, 9-13/16 inch O.D.

1шт.

2

589622R1

V-BELT,0.63" W

Drive, 187 inch 0.63" W

1шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

5шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch

5шт.

6

566518R91

PULLEY,152.4mm Idler Dia x 171.45mm OD x 38.1mm W

- drive tightener, 6 inch O.D.

1шт.

7

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

1шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

11

1315269C1

PULLEY

- idler, 4-3/8 inch O.D.

1шт.

12

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

4шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

15

1315274C1

BRACKET

SUPPORT - pulley

1шт.

16

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex, 5/16 NC x 3/4 inch

3шт.

17

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

6шт.

18

1979591C1

LEVER

- tightener arm, Includes: Ref. 19

1шт.

19

1979989C1

BUSHING,19.13mm ID x 22.3mm OD x 15.7mm L

- tightener lever

2шт.

20

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

21

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

1шт.

22

181152C1

ROD

- tightener

1шт.

23

495-81163

WASHER,17/32" x 1 1/2" x .120"

- flat, 17/32 x 1-1/2 x 7/64 inch

1шт.

24

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

25

194652C1

PIVOT

BAR - rod, trunnion

1шт.

26

391745R1

SPRING

- rod

1шт.

27

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 9/64 inch

1шт.

28

181196C2

PULLEY

- driven, 10 inch O.D.

1шт.

29

326-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 8

1шт.

30

27326R1

WASHER,.344" x 11/16" x .089", HDN

- flat, 11/32 x 11/16 x 3/32 inch

1шт.

31

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

32

1303034C1

SHIELD

SUPPORT - drive

1шт.

33

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted, 5/16 NC x 3/4 inch

3шт.

35

152261C1

SPACER,1 1/4" Tube x 1 7/8"

- cross shaft

1шт.

36

186384C3

SHAFT

- spreader cross

1шт.

37

577139R1

LOCK PIN,3/8" x 1 1/2", Slotted

Pin, 3/8" x 1 1/2", Slotted

1шт.

38

495-81068

WASHER,1 1/32" x 1 1/2" x .030"

- flat, 1-1/16 x 1-1/2 x 1/32 inch, Includes: Ref. 40

1шт.

40

571424R1

FLANGE

- bearing

4шт.

41

195293C91

BALL BEARING,0.89" ID x 2.04" OD x 1"

BEARING - shaft

2шт.

42

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex, 5/16 NC x 3/4 inch

6шт.

43

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

44

REF

INSTRUCTION

BRACKET - drive (See figure 9F-4)

1шт.

45

25847R1

WASHER

- flat, 1-1/16 x 2 x 7/32 inch

3шт.

46

591715R1

WASHER

- flat, 1-1/32 x 1-1/2 x 3/64 inch

3шт.
