Запчасти Case IH 1620 (9E-20) - UNLOADER UPPER AUGER (17) - GRAIN TANK & UNLOADER

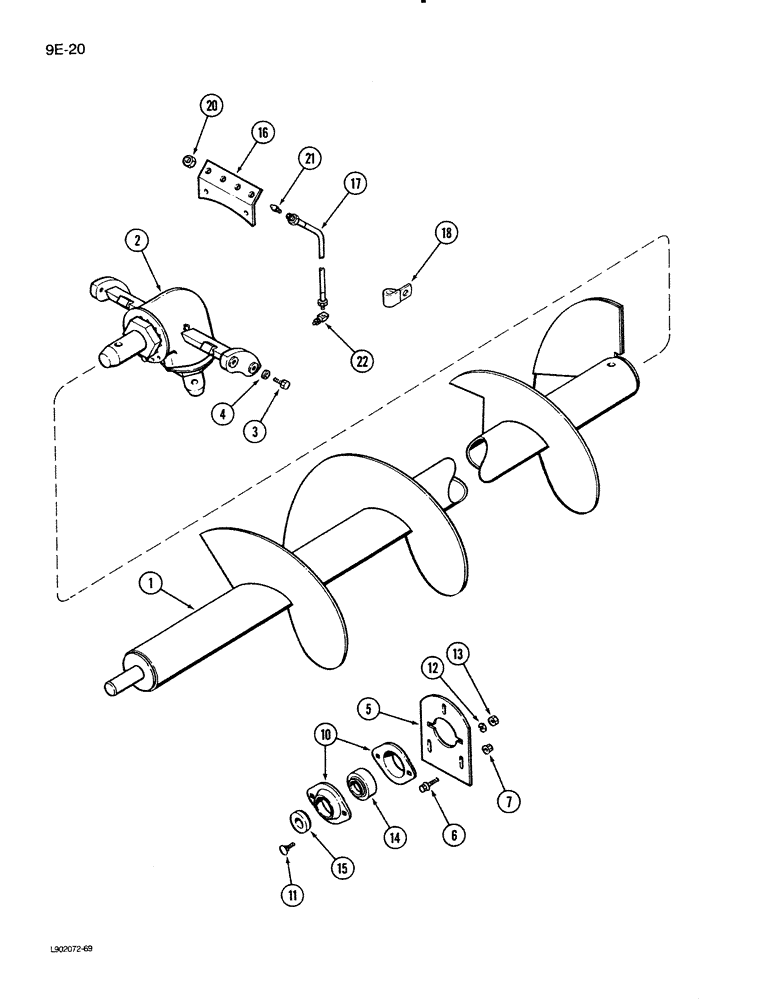

Схема запчастей Case IH 1620 - (9E-20) - UNLOADER UPPER AUGER (17) - GRAIN TANK & UNLOADER
15
12
20
7
1
4
14
13
22
10
5
3
11
17
18
21
16
2
6

Артикул

Название

Примечание

Количество

1

1317933C1

AUGER

- unloader, upper

1шт.

2

REF

INSTRUCTION

GEAR HOUSING ASSEMBLY - auger (See Figure 9E-18)

1шт.

3

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex, 3/8 NC x 3/4 inch

4шт.

4

366862C1

LOCK WASHER,3/8"

3/8"

4шт.

5

182838C1

SUPPORT

BRACKET - bearing, auger

1шт.

6

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

3шт.

7

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

3шт.

10

F9417

FLANGE

- bearing

2шт.

11

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT - round head square neck, 5/16 NC x 3/4 inch

2шт.

12

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

2шт.

14

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING ASSEMBLY - auger, Includes: Ref. 15

1шт.

15

564853R11

COLLAR

ASSEMBLY - locking

1шт.

16

185134C1

SUPPORT

- fitting, lubrication

1шт.

17

937779R91

HOSE,1/8" ID x 22" L

FLEXIBLE HOSE, , Lubrication, Swivel 0.14" ID x 22.00"

2шт.

17

937781R92

HOSE,3.02mm ID x 686mm L

Grease, Swivel 3.56 mm ID x 686.00 mm

1шт.

17

937782R92

HOSE,3.02mm ID x 787mm L

Lubrication, Swivel 3.56 mm ID x 787.00 mm

1шт.

18

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP - tube, lubrication (Outer tube only)

1шт.

20

F53473

LOCK NUT,1/8-27 NPSM

- adapter, tube

4шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - lubrication, 1/4 inch swivel

4шт.

22

21347R1

ADAPTER,45 Degree, 1/4"-1/8 NPTF

FITTING - lubrication, 45 degree 1/4 inch

4шт.

Выбрано товаров: 21
