Запчасти Case IH 1620 (9E-18) - GRAIN TANK UNLOADER LOWER HOUSING (17) - GRAIN TANK & UNLOADER

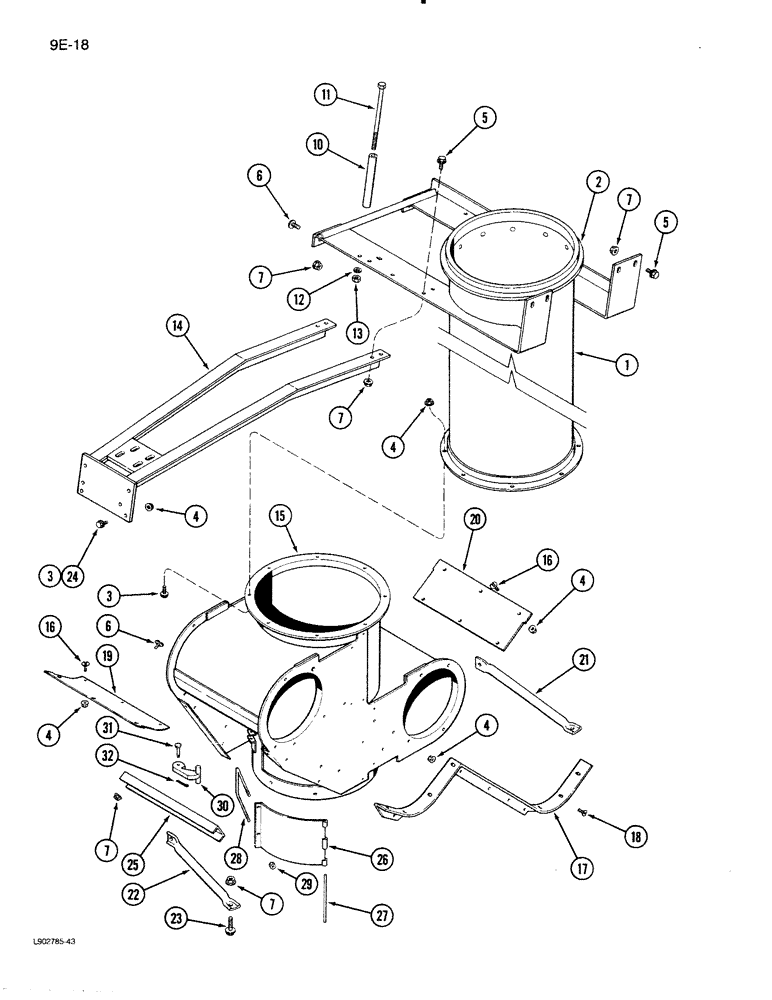

Схема запчастей Case IH 1620 - (9E-18) - GRAIN TANK UNLOADER LOWER HOUSING (17) - GRAIN TANK & UNLOADER
27
4
23
20
31
16
5
12
1
7
17
22
4
32
5
24
21
7
15
25
4
7
2
7
16
19
14
3
18
4
11
3
28
6
7
29
10
4
30
6
26
13

Артикул

Название

Примечание

Количество

1

183124C92

TUBE

ASSEMBLY - auger

1шт.

2

178134C2

RING

- tube, unloader

1шт.

3

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

14шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

56шт.

5

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

SCREW - hex flange, 3/8 NC x 3/4 inch

8шт.

6

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

6шт.

7

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

15шт.

10

195400C1

SPACER

- support

2шт.

11

413-6128

BOLT,Hex, 3/8" - 16 x 8", Gr 5

- hex, 3/8 NC x 8 inch

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

425-106

NUT,3/8"-16, Cl 5

2шт.

14

1321619C1

SUPPORT ASSY.

SUPPORT - tube

1шт.

15

192475C3

HOUSING

- lower, unloader

1шт.

16

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

33шт.

17

192828C1

SUPPORT

- angle, left (Shown)

1шт.

17

192829C1

SUPPORT

- angle, right

1шт.

18

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

19

191110C1

COVER

COVER - bottom, rear

1шт.

20

191087C1

PLATE

COVER - bottom, front

1шт.

21

194694C1

ROD

- support, front

1шт.

22

194695C1

ROD

- support, rear

1шт.

23

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

SCREW - hex flange, 3/8 NC x 1-1/2 inch

1шт.

24

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

- cross slotted serrated truss head, 3/8 NC x 1 inch

3шт.

25

192834C1

CHANNEL

- support, tube

1шт.

26

1970539C1

FLAP

DOOR - lower, auger

1шт.

27

393069R1

PIN,6.35mm OD x 147.3mm L

- pivot, door

1шт.

28

195332C1

U-BOLT,1/4" - 20 x 2 1/2", Low Carbon Steel

door, 1/4 inch NC

1шт.

29

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

2шт.

30

155909C1

LATCH

- door

1шт.

31

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN - headed, 1/4 x 1-1/4 inch

1шт.

32

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

Выбрано товаров: 31
