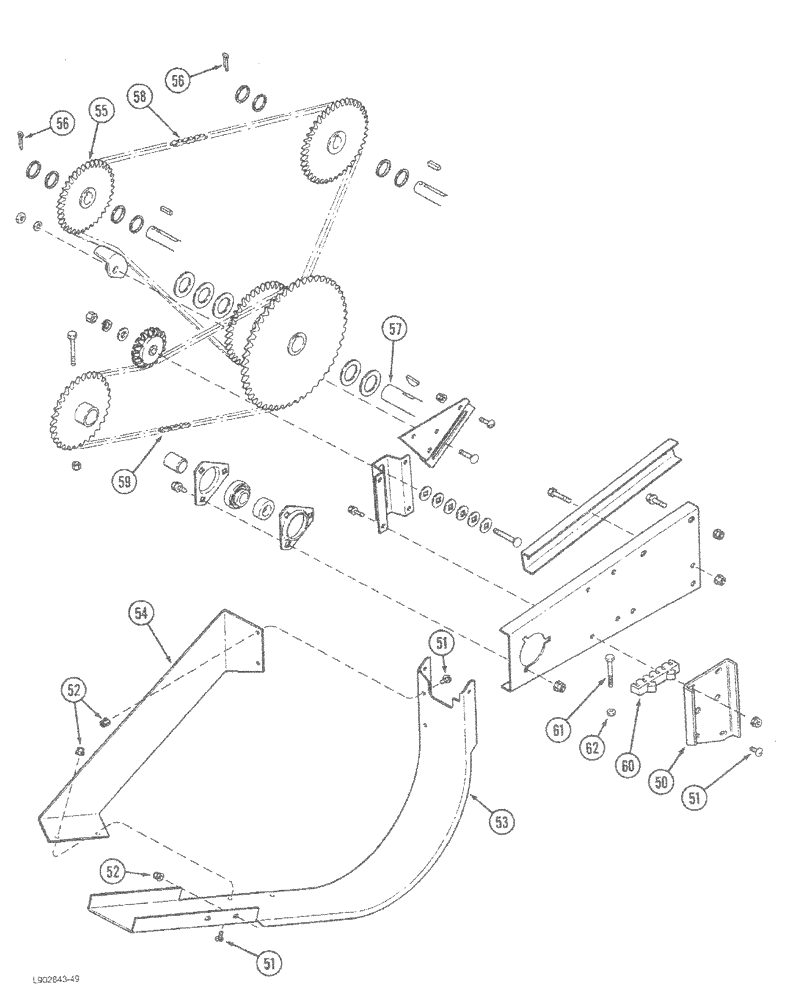

Запчасти Case IH 1620 (9E-14) - GRAIN TANK UNLOADER CHAIN DRIVE (CONTD) (17) - GRAIN TANK & UNLOADER

50

1302435C2

SUPPORT

- shield

1шт.

51

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

8шт.

52

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange, 5/16 inch NC

8шт.

53

1302434C1

SHIELD

- unloader

1шт.

54

183351C1

PLATE

- side

1шт.

55

192925C1

SPROCKET

- auger driven, 37 tooth

1шт.

56

132-349

COTTER PIN,1/4" x 1 1/2"

PIN, Split (Cotter), 1/4" x 1-1/2"

2шт.

57

REF

INSTRUCTION

SHAFT - horizontal auger (See Figure 9E-16)

1шт.

58

NSS

NOT SOLD SEPARAT

CHAIN - grain tank auger drive

1шт.

For service use 157 links of No. 40 chain and 1 connecting link 1301D.

1шт.

59

NSS

NOT SOLD SEPARAT

CHAIN - vertical auger drive

1шт.

For service use 133 links of No. 50 chain and 1 connecting link 1310D.

1шт.

60

3102155R1

HOLDER

- shear bolt

1шт.

61

26269R1

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 8

- hex, 5/16 NC x 2-3/4 inch, Grade 8

3шт.

62

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

3шт.
