Запчасти Case IH 1620 (9E-06) - GRAIN TANK UNLOADER CONTROL (17) - GRAIN TANK & UNLOADER

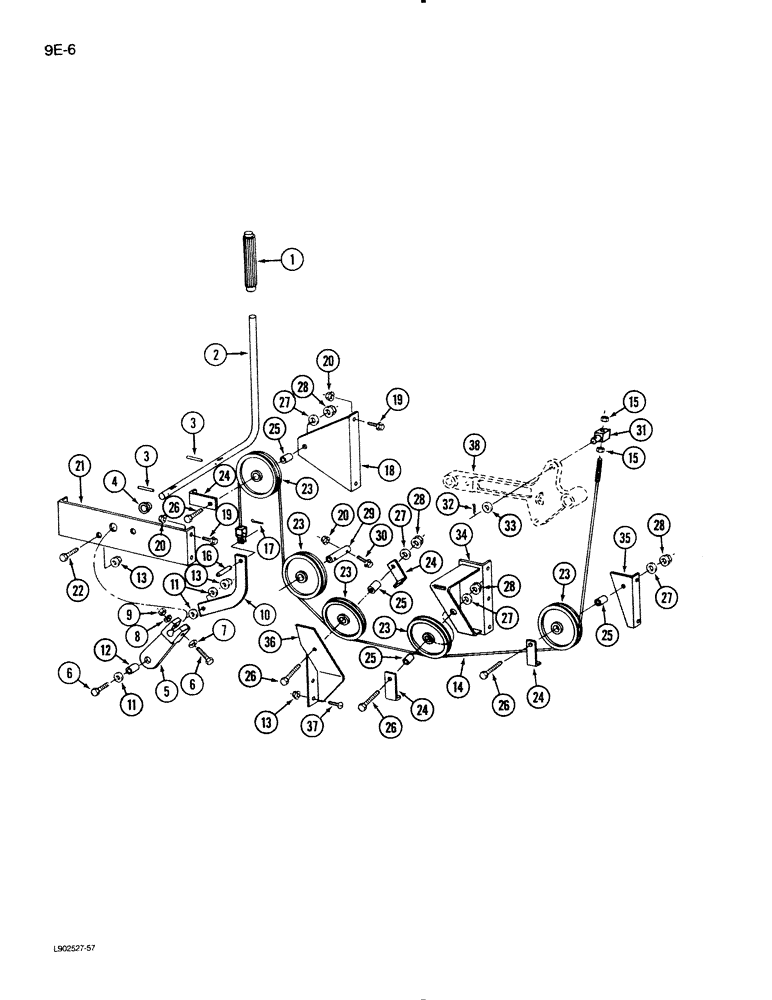

Схема запчастей Case IH 1620 - (9E-06) - GRAIN TANK UNLOADER CONTROL (17) - GRAIN TANK & UNLOADER
33
12
1
21
22
4
18
5
3
25
20
34
13
36
38
27
23
35
24
27
25
24
11
29
23
15
20
28
23
24
28
25
30
13
24
23
16
37
2
26
19
6
9
11
25
8
26
15
17
19
28
6
27
13
28
26
10
27
23
32
31
7
26
14
3
20

Артикул

Название

Примечание

Количество

1

193194C2

HANDLE

GRIP - lever

1шт.

2

193196C1

ROD

LEVER - control

1шт.

3

138-303

LOCK PIN,3/16" x 1 1/8", Slotted

PIN - roll, 3/16 x 1-1/4 inch

2шт.

4

193201C1

BUSHING

- lever

2шт.

5

161650C2

ARM

- control

1шт.

6

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NC x 1-3/4 inch, Grade 8

2шт.

7

18465D

WASHER

- arm

1шт.

8

366862C1

LOCK WASHER,3/8"

3/8"

1шт.

9

329-106

NUT,3/8"-16, G8

1шт.

10

195549C1

LINK

- control

1шт.

11

396-31041

WASHER,10.31mm ID x 20.63mm OD x 3.4mm Thk

5шт.

12

561277R1

SPACER,5/8" Tube x 1/2"

- link, 5/8 x 7/16 inch

1шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange, 3/8 inch NC

5шт.

14

195550C2

CABLE

- control, 114 inch long

1шт.

15

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

16

24660R1

CLEVIS PIN,5/16" x .719"

PIN - clevis, 5/16 x 23/32 inch

1шт.

17

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

18

195551C1

SUPPORT

BRACKET - pulley

1шт.

19

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange, 5/16 NC x 3/4 inch

6шт.

20

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange, 5/16 inch NC

8шт.

21

195050C2

CHANNEL

BRACKET - lever

1шт.

22

165420C1

BOLT,Hex Serr, 3/8"-16 x 1 1/4", Spcl

- hex, 3/8 NC x 1-1/4 inch

2шт.

23

193208C1

PULLEY

- cable, 2-1/2 inch

5шт.

24

193209C1

CLIP

SUPPORT - pulley

4шт.

25

159716C1

SPACER,3/4" Tube x 5/8"

BUSHING - spacer, 3/4 x 5/8 inch

4шт.

26

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

27

496-21053

WASHER,17/32" x 1 1/16" x .134"

- hardened flat, 17/32 x 1-1/16 x 9/64 inch

4шт.

28

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange, 1/2 inch

4шт.

29

195553C1

PIN

- pulley

1шт.

30

535789R1

BOLT,Hex Serr, 5/16" - 18 x 1 1/4"

- hex flange, 5/16 NC x 1-1/4 inch

2шт.

31

194893C1

PIVOT

- cable

1шт.

32

432-1216

COTTER PIN,3/16" x 1"

1шт.

33

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

34

181407C1

SUPPORT ASSY.

SUPPORT - center

1шт.

35

182628C1

SUPPORT

- rear

1шт.

36

181406C1

SUPPORT

- front

1шт.

37

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - slotted, 3/8 NC x 1 inch

2шт.

38

REF

INSTRUCTION

ARM - belt tightener (See Figure 9E-10)

1шт.
