Запчасти Case IH 1620 (9E-02) - GRAIN TANK (17) - GRAIN TANK & UNLOADER

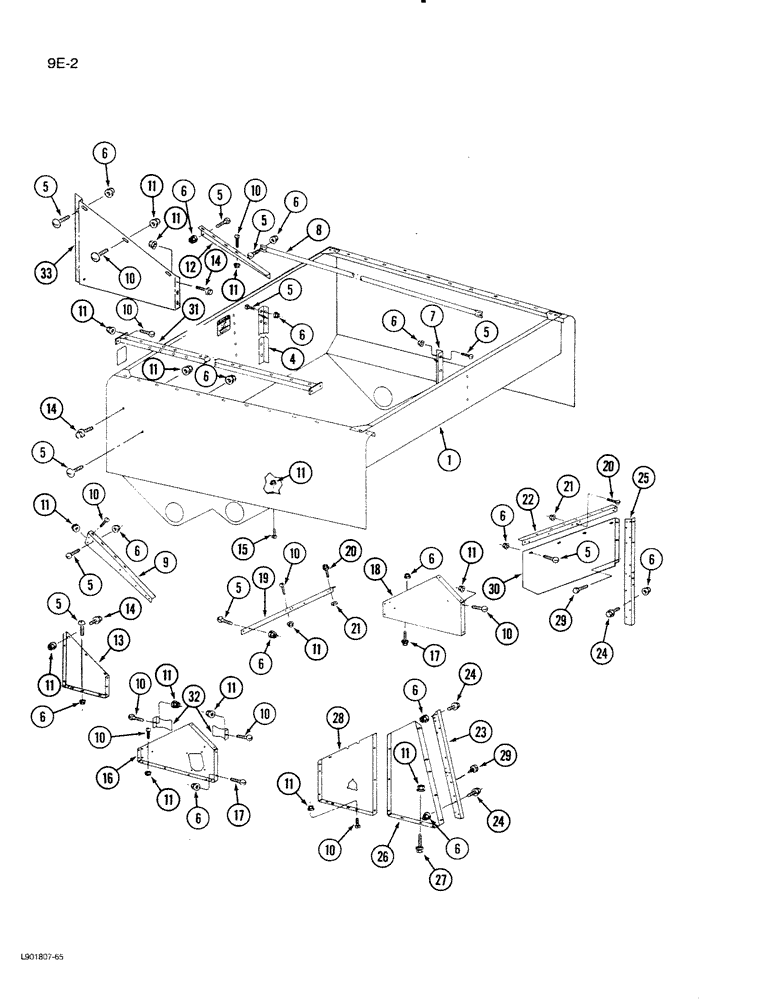

Схема запчастей Case IH 1620 - (9E-02) - GRAIN TANK (17) - GRAIN TANK & UNLOADER
32
6
24
11
10
6
12
33
14
6
5
29
10
6
21
26
16
6
4
22
11
6
17
29
8
11
11
6
11
5
7
18
11
5
27
11
6
10
14
17
5
21
24
10
10
6
10
14
23
20
19
20
11
10
31
13
5
25
24
6
11
11
6
5
9
6
15
10
10
5
6
11
6
5
5
11
11
6
10
11
30
1
28
5
11

Артикул

Название

Примечание

Количество

1

1319632C93

TANK

- grain, with decals

1шт.

4

192765C1

SUPPORT

ANGLE - front

1шт.

5

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted, 3/8 NC x 3/4 inch

33шт.

6

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange, 3/8 inch NC

52шт.

7

181682C2

SUPPORT

ANGLE - rear

1шт.

8

192767C2

STEM

ROD - grain tank

1шт.

9

192768C2

SUPPORT

- diagonal, left

1шт.

10

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted, 5/16 NC x 3/4 inch

48шт.

11

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange, 5/16 inch NC

60шт.

12

192769C2

SUPPORT

- diagonal, right

1шт.

13

192770C3

COVER

- front, left

1шт.

14

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange, 5/16 NC x 3/4 inch

6шт.

15

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted, 5/16 NC x 1/2 inch

3шт.

16

192771C2

SUPPORT

- center, left

1шт.

17

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange, 3/8 NC x 3/4 inch

12шт.

18

192772C2

SUPPORT

- center, right

1шт.

19

194707C1

ANGLE

- bottom, left

1шт.

20

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex, 1/2 NC x 1 inch

2шт.

21

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

22

194708C1

ANGLE

SUPPORT - bottom, right

1шт.

23

194710C1

SUPPORT

- rear vertical, left

1шт.

24

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - slotted lock, 3/8 NC x 1 inch

5шт.

25

194711C1

SUPPORT

- rear vertical, right

1шт.

26

194709C1

SUPPORT

- rear left

1шт.

27

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

28

193471C1

SUPPORT

COVER - rear left

1шт.

29

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

1шт.

29

25756R1

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 5/8"

BOLT - hex washer head, 5/16 NC x 5/8 inch

6шт.

30

194706C1

SUPPORT

COVER - tank, right

1шт.

31

194704C1

SUPPORT

- tank

1шт.

32

193531C1

SUPPORT

PLATE - filler

4шт.

33

186448C1

COVER

- front

1шт.

Выбрано товаров: 32
