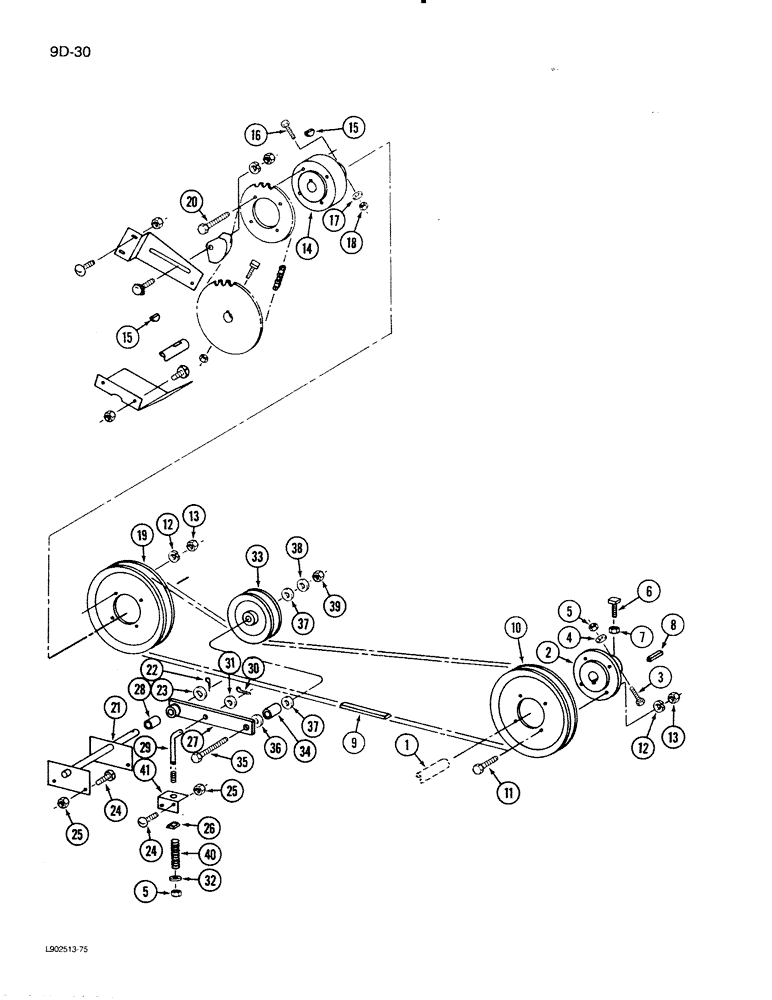

Запчасти Case IH 1620 (9D-30) - TAILINGS ELEVATOR DRIVE (16) - GRAIN ELEVATORS & AUGERS

1

REF

INSTRUCTION

JACKSHAFT - elevator (See Figure 9D-34)

1шт.

2

182650C1

HUB

- drive

1шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

1шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

6

178758

SET SCREW,Sq Hd, 5/16" - 18 x 3/4", Cup Pt

BOLT - square head set, 5/16 NC x 3/4 inch

3шт.

7

25932R1

JAM NUT,Jam, 3/8"-16, G5

- hex, 5/16 inch NC

1шт.

8

586879R1

KEY

- parallel, 5/16 x 2 inch

1шт.

9

674965R1

V-BELT,0.879" W x 105.19" L

Drive 0.879" W x 105.19" L

1шт.

10

1303018C1

PULLEY ASSY.

PULLEY - drive, 9-3/4 inch

1шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

13

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

10шт.

14

182563C2

HUB

- driven

1шт.

15

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

16

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

1303020C1

PULLEY

- driven, 10-1/2 inch O.D.

1шт.

20

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

4шт.

21

181321C1

PIVOT ASSY.

PIVOT - tightener

1шт.

22

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

23

495-81037

WASHER,25/32" x 1 1/4" x .060"

WA8HER - flat, 25/32 x 1-1/4 x 3/64 inch

3шт.

24

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted, 5/16 NC x 3/4 inch

10шт.

25

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

11шт.

26

194652C1

PIVOT

BAR - tightener

1шт.

27

181318C91

ARM ASSY.

ARM ASSEMBLY - tightener, Includes: Ref. 28

1шт.

28

574859R1

BUSHING

- arm

1шт.

29

1303182C1

ROD

- tightener

1шт.

30

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

1шт.

31

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

1шт.

32

495-81162

WASHER,17/32" x 1 1/2" x .179"

- flat, 17/32 x 1-1/2 x 11/64 inch

1шт.

33

181126C91

PULLEY

- tightener, 6 inch O.D.

1шт.

34

UA17298

SPACER,7/8" Tube x 1 1/16"

BUSHING - pulley

1шт.

35

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

36

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 7/64 inch

1шт.

37

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 5/64 inch

2шт.

38

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

39

425-1010

NUT,5/8"-11, G5

1шт.

40

PO23

SPRING

- tightener

1шт.

41

181324C1

SUPPORT

ANGLE - spring

1шт.
