Запчасти Case IH 1620 (9D-28) - TAILINGS ELEVATOR TUBE AND BOOT (16) - GRAIN ELEVATORS & AUGERS

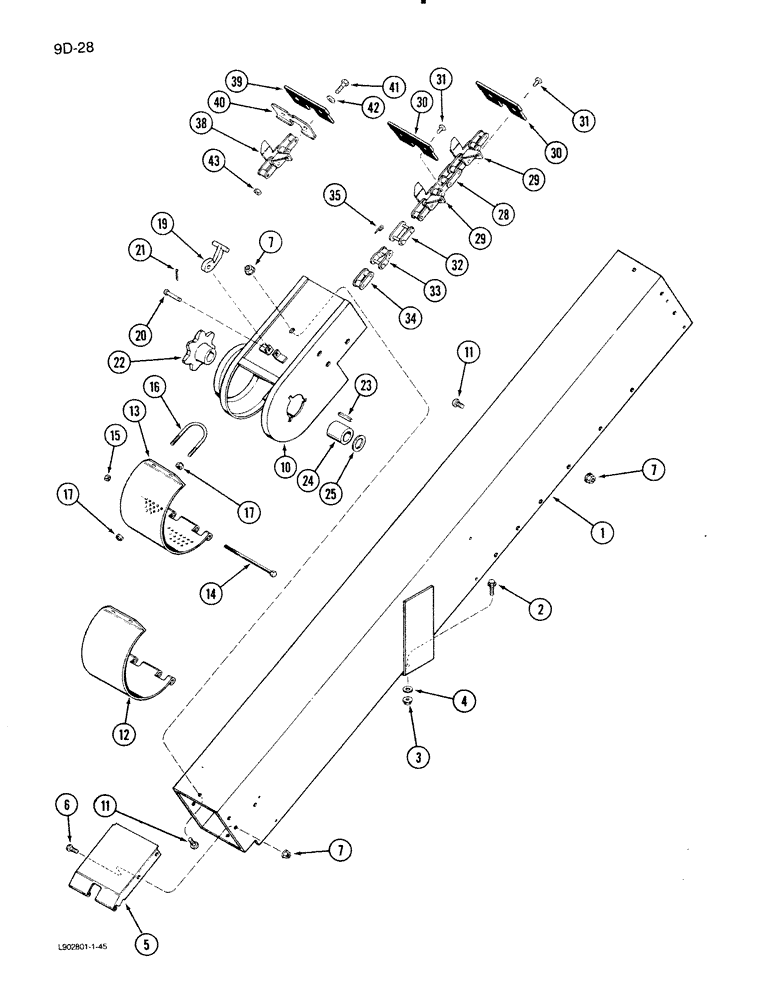

Схема запчастей Case IH 1620 - (9D-28) - TAILINGS ELEVATOR TUBE AND BOOT (16) - GRAIN ELEVATORS & AUGERS
34
23
7
39
43
41
30
17
25
31
32
7
28
13
42
5
33
1
29
22
38
6
21
12
4
3
7
10
29
11
11
16
35
31
15
40
19
14
2
24
30
20

Артикул

Название

Примечание

Количество

1

186132C1

ELEVATOR TUBE,2161.03 mm Length

TUBE - elevator

1шт.

2

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

2шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch

10шт.

5

191790C2

END

HINGE - end, bottom

1шт.

6

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

4шт.

7

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 NC

7шт.

10

191771C1

BOOT

- elevator

1шт.

11

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

3шт.

12

156910C1

DOOR

- boot (Not perforated)

1шт.

13

174193C1

DOOR

- boot (Perforated)

1шт.

14

413-5104

BOLT,Hex, 5/16" - 18 x 6-1/2", Gr 5

- hex, 5/16 NC x 6-1/2 inch

1шт.

15

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.

16

664360R1

BOLT,U, 1/4" - 20 x 69.65"

U-BOLT - catch, door

1шт.

17

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

4шт.

19

155909C1

LATCH

- door, boot

1шт.

20

21879R1

HEADED PIN,1/4" x 1 1/4"

PIN - head, 1/4 x 1-1/4 inch

1шт.

21

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

22

168683C1

SPROCKET

- drive, chain

1шт.

23

Y24430

KEY,1/4" Sq x 1 1/2", Par

- shaft, square 1/4 x 1-1/2 inch

1шт.

24

21696R1

SPACER,1" Pipe x 1 3/8"

- sprocket, 1 x 1-1/2 inch

1шт.

25

495-81068

WASHER,1 1/32" x 1 1/2" x .030"

- flat, 1-1/32 x 1-1/2 x 1/64 inch

1шт.

28

1303114C91

ELEVATOR CHAIN,C550, 112 Links x 41.4mm = 4636.8mm

CONVEYOR ASSEMBLY - chain, Includes: Ref. 29 - 35

1шт.

29

1303123C91

ELEVATOR CHAIN

FLIGHT ASSEMBLY - conveyor, Includes: Ref. 30 and 31

27шт.

30

1303116C1

RUBBER FLIGHT

FLIGHT - conveyor, rubber

1шт.

31

185315C1

RIVET

- tubular, 3/8 x 5/8 inch

2шт.

32

631254R91

DRAG LINK

LINK - connecting

1шт.

33

23880R1

OFFSET LINK

LINK - offset

1шт.

34

631253R91

LINK

- plain

1шт.

35

23442R1

PIN,2.36mm OD

- link, "S" type

1шт.

1303124C92

RUBBER FLIGHT

FLIGHT ASSEMBLY - conveyor (Steel), Includes: Ref. 38 - 43

27шт.

38

150722C91

LINK

ASSEMBLY - attaching

1шт.

39

1303116C1

RUBBER FLIGHT

FLIGHT - rubber

1шт.

40

1303125C1

STEEL FLIGHT

FLIGHT - steel

1шт.

41

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

42

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

43

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

Выбрано товаров: 37
