Запчасти Case IH 1620 (9D-26) - TAILINGS ELEVATOR HEAD (16) - GRAIN ELEVATORS & AUGERS

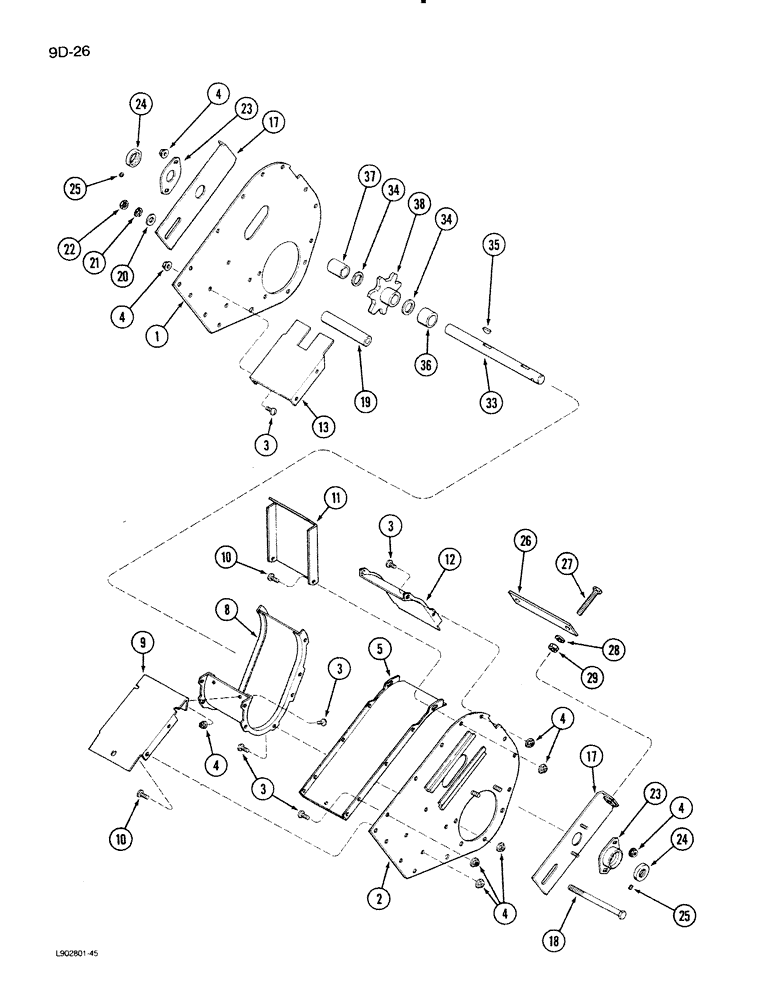

Схема запчастей Case IH 1620 - (9D-26) - TAILINGS ELEVATOR HEAD (16) - GRAIN ELEVATORS & AUGERS
28
20
3
4
3
17
17
5
34
33
21
27
2
23
25
4
3
26
23
1
3
10
24
12
25
8
19
10
4
37
36
13
9
22
35
11
38
4
4
24
34
29
4
18

Артикул

Название

Примечание

Количество

1

181366C1

SIDE PLATE

SIDE - head, elevator left

1шт.

2

181367C1

SIDE PLATE

SIDE - head, elevator right

1шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

20шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

29шт.

5

191783C1

TOP COVER

SUPPORT - top, head

1шт.

8

188119C1

TROUGH

- head

1шт.

9

191782C1

SUPPORT

- bottom

1шт.

10

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

11

186398C1

SUPPORT

- upper, head

1шт.

12

191776C1

COVER

COVER - support, head

1шт.

13

181327C1

BOTTOM

SUPPORT - bottom, head

1шт.

17

181364C1

SUPPORT

- shaft, head

2шт.

18

424-5112

BOLT,Hex, 5/16" - 18 x 7", Gr 2

- hex, 5/16 NC x 7 inch

1шт.

19

27829R1

SPACER,9.2mm ID x 13.72mm OD x 147.6mm L

Head 1/4" Pipe x 5 13/16"

1шт.

20

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

22

9635082

NUT,5/16" - 18, Gr 5

1шт.

23

214490C91

BALL BEARING,25.4mm ID

BEARING ASSEMBLY - shaft

2шт.

24

455102R21

COLLAR

A88EMBLY - locking, Includes: Ref. 25

2шт.

25

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

1шт.

26

181311C1

BAR

- tightener

1шт.

27

667486R1

BOLT

BOLT - hex, 1/2 NC x 3-1/2 inch

2шт.

28

495-81021

WASHER,17/32" x 1" x .120"

- flat, 17/32 x 1 x 7/64 inch

4шт.

29

28588R1

WASHER

NUT - hex, 1/2 inch NC

2шт.

33

181312C1

SHAFT

- head

1шт.

34

495-81065

WASHER,26.19mm ID x 31.75mm OD x 1.7mm Thk

- flat, 1-1/32 x 1-1/4 x 3/64 inch

1шт.

35

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

Shaft #15, 1/4" x 1", HT

1шт.

36

27828R1

SPACER,26.6mm ID x 33.4mm OD x 39.7mm L

Sprocket 1" Pipe x 1 9/16"

1шт.

37

516327R1

SPACER,26.6mm ID x 33.4mm OD x 69.8mm L

Sprocket 1" Pipe x 2 3/4"

1шт.

38

168683C1

SPROCKET

- drive, chain

1шт.

Выбрано товаров: 30
