Запчасти Case IH 1620 (9D-24) - TAILINGS AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS

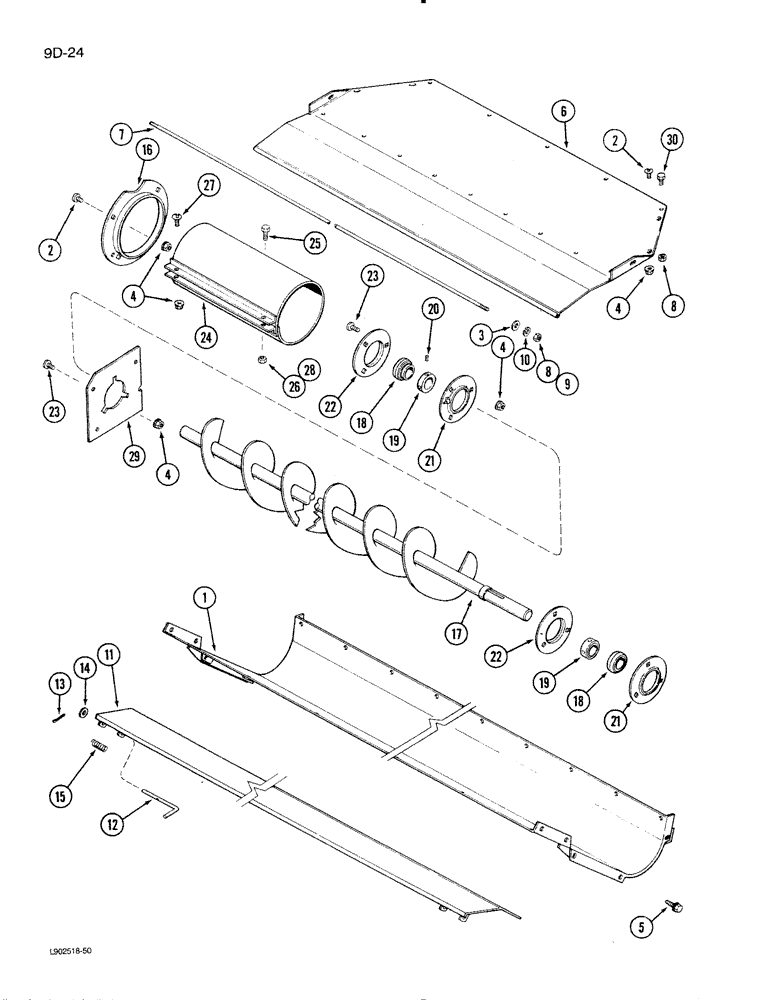

Схема запчастей Case IH 1620 - (9D-24) - TAILINGS AUGER TROUGH (16) - GRAIN ELEVATORS & AUGERS
11
4
21
9
19
5
25
14
23
20
23
29
19
12
3
18
4
10
6
15
2
30
8
18
2
26
17
7
27
22
16
28
13
24
21
8
4
22
4
1

Артикул

Название

Примечание

Количество

1

193801C1

TROUGH ASSY.

TROUGH - tailings

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

22шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

28шт.

5

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

6

185194C1

DOOR

COVER - trough

1шт.

7

185199C1

ROD

- cover

1шт.

8

188471C1

FLANGE NUT,Flg, 5/16"-18

NUT - hex flange special, 5/16 inch NC

17шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

186977C1

PANEL

GATE - tailings

1шт.

12

186736C1

ROD

PIN - gate

2шт.

13

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

2шт.

14

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 3/64 inch

2шт.

15

540815R1

SPRING

- gate

2шт.

16

160324C2

FLANGE

- auger, right

1шт.

17

186126C1

AUGER

- tailings

1шт.

18

482303R92

BALL BEARING,1.0005" ID x 52 mm OD x 0.84375"

- auger

2шт.

19

455102R21

COLLAR

- locking, Includes: Ref. 20

2шт.

20

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

1шт.

21

180383C91

FLANGED BEARING,3.75" OD x 0.4062"

FLANGE ASSEMBLY - bearing

2шт.

22

937517R1

FLANGE

- bearing, grooved

2шт.

23

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

6шт.

24

186129C1

CLAMP

- auger, non-perforated

1шт.

24

186307C1

CLAMP

- auger, perforated

1шт.

25

424-516

BOLT,Hex, 5/16" - 18 x 1", Gr 2

- hex, 5/16 NC x 1 inch

3шт.

Used with 186129C1.

1шт.

26

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

3шт.

Used with 186129C1.

1шт.

27

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

3шт.

Used with 186307C1.

1шт.

28

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

3шт.

Used with 186307C1.

1шт.

29

192357C2

BAR

- auger, left

1шт.

30

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

16шт.

Выбрано товаров: 35
