Запчасти Case IH 1620 (9D-22) - TAILINGS DELIVERY AUGER (16) - GRAIN ELEVATORS & AUGERS

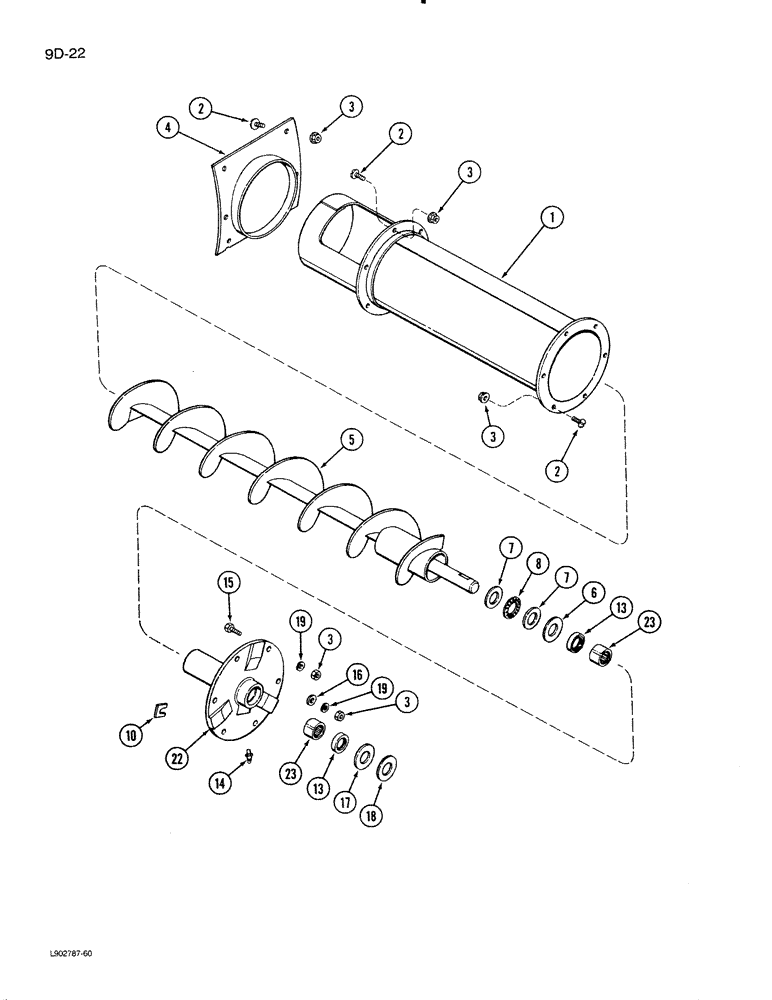

Схема запчастей Case IH 1620 - (9D-22) - TAILINGS DELIVERY AUGER (16) - GRAIN ELEVATORS & AUGERS
18
17
7
22
19
3
3
8
16
19
2
13
23
3
2
13
6
10
1
3
2
5
7
4
3
1
15
23

Артикул

Название

Примечание

Количество

1

186114C1

TUBE

- auger

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

15шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

17шт.

4

185192C1

FLANGE

- tube

1шт.

5

186134C1

AUGER

- tailings

1шт.

6

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 7/64 inch

1шт.

7

864982R1

THRUST WASHER,1.012" ID x 1.552" OD x 0.93"

- thrust

2шт.

8

1324864C91

THRUST BEARING

- auger

1шт.

10

151670C1

SHIM

- shim

1шт.

13

564592R91

SEAL,23.5mm ID x 36.6mm OD x 6.5mm Thk

- hub

2шт.

14

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - grease, 1/4 inch x 45 degree

1шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

6шт.

16

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

17

495-81077

WASHER,1.03" ID x 2" OD x 0.12" Thk

- flat, 1-1/32 x 2 x 7/64 inch

1шт.

18

495-81076

WASHER,26.19mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-1/32 x 2 x 3/64 inch

1шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

22

1324840C1

BEARING HOUSING,36.525 mm ID x 50 mm OD x 43, 160 mm

- bearing

1шт.

23

574940R91

NEEDLE BEARING,Needle, 25.39mm ID x 33.35mm OD x 25.4mm W

BEARING - hub

2шт.

Выбрано товаров: 18
