(9D-16) - GRAIN ELEVATOR HEAD SHIELDS

Запчасти Case IH 1620 (9D-16) - GRAIN ELEVATOR HEAD SHIELDS (16) - GRAIN ELEVATORS & AUGERS

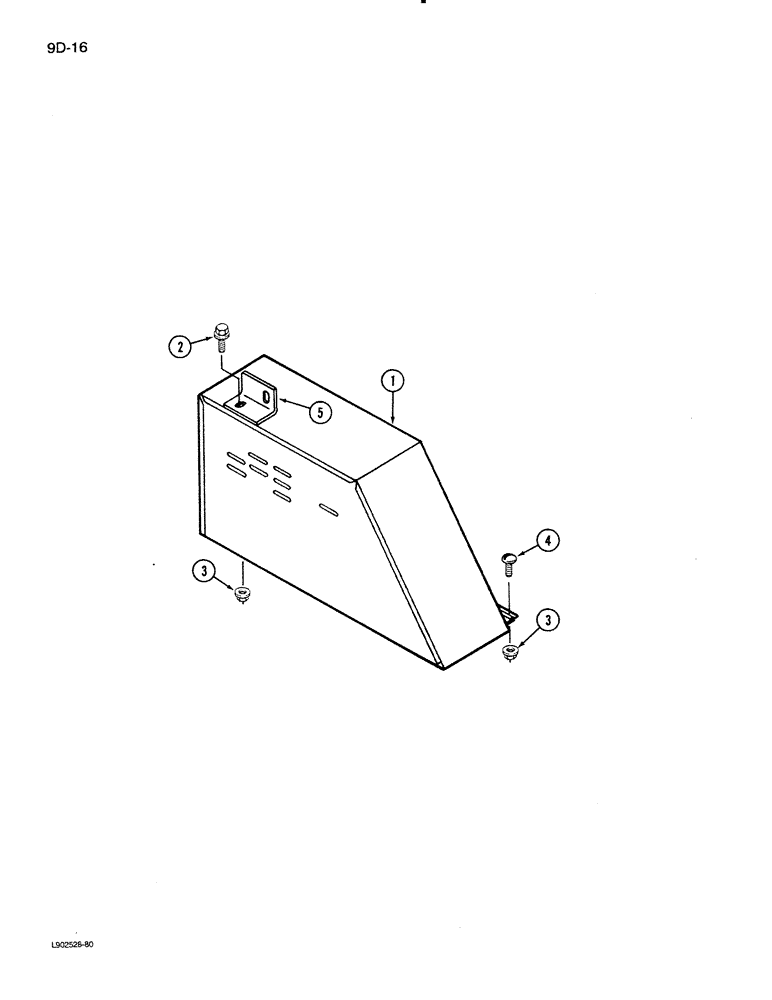

Схема запчастей Case IH 1620 - (9D-16) - GRAIN ELEVATOR HEAD SHIELDS (16) - GRAIN ELEVATORS & AUGERS
3
4
5
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1321376C2

SHIELD

- head (Grain and corn)

1шт.

1

1321451C2

SHIELD

- head (Rice)

1шт.

2

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

5шт.

4

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

4шт.

5

1321380C1

ANGLE

- locking

1шт.
