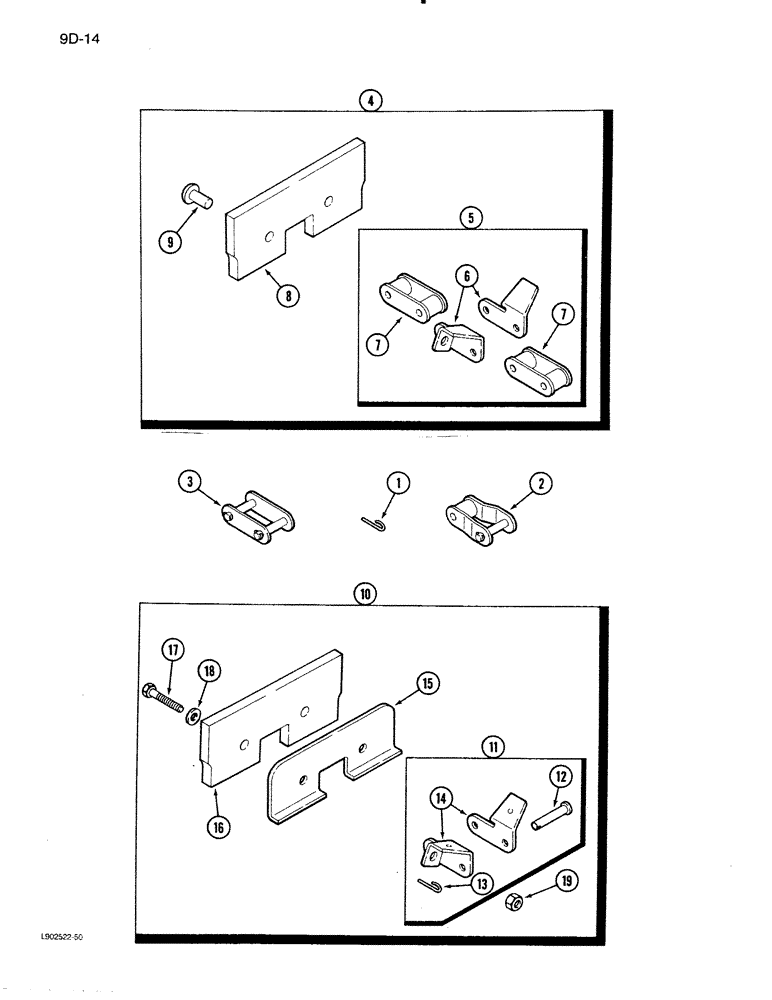

Запчасти Case IH 1620 (9D-14) - GRAIN ELEVATOR CONVEYOR (16) - GRAIN ELEVATORS & AUGERS

186221C1

ELEVATOR CHAIN,C550, 147 Links x 41.4mm = 6085.8mm

ASSEMBLY - grain and corn, Includes: Ref. 1 - 19

1шт.

181437C1

CONVEYOR ASSY.

CONVEYOR ASSEMBLY - rice, Includes: Ref. 1 - 19

1шт.

1

23442R1

PIN,2.36mm OD

- connecting

1шт.

2

23880R1

OFFSET LINK

LINK - offset

1шт.

3

631254R91

DRAG LINK

LINK - connecting

1шт.

4

185334C91

RUBBER FLIGHT

FLIGHT ASSEMBLY - rubber (Optional with 1303121C92), Includes: Ref. 5 - 9

1шт.

5

NSS

NOT SOLD SEPARAT

LINK ASSEMBLY - conveyor, Includes: Ref. 6 and 7

2шт.

6

NSS

NOT SOLD SEPARAT

LINK - flight

2шт.

7

631253R91

LINK

- roller chain

2шт.

8

185333C1

RUBBER FLIGHT

FLIGHT - conveyor (Rubber)

2шт.

9

185053C1

RIVET

- flight, 3/8 x 3/4 inch

2шт.

10

1303121C92

STEEL FLIGHT

FLIGHT ASSEMBLY - steel (Optional with 185334C91), Includes: Ref. 11 - 19

1шт.

11

150722C91

LINK

ASSEMBLY - flight, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

PIN - headed

2шт.

13

23442R1

PIN,2.36mm OD

- connecting

2шт.

14

NSS

NOT SOLD SEPARAT

LINK - flight

2шт.

15

1303122C1

STEEL FLIGHT

FLIGHT - steel

1шт.

16

185333C1

RUBBER FLIGHT

FLIGHT - rubber

1шт.

17

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

19

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.
