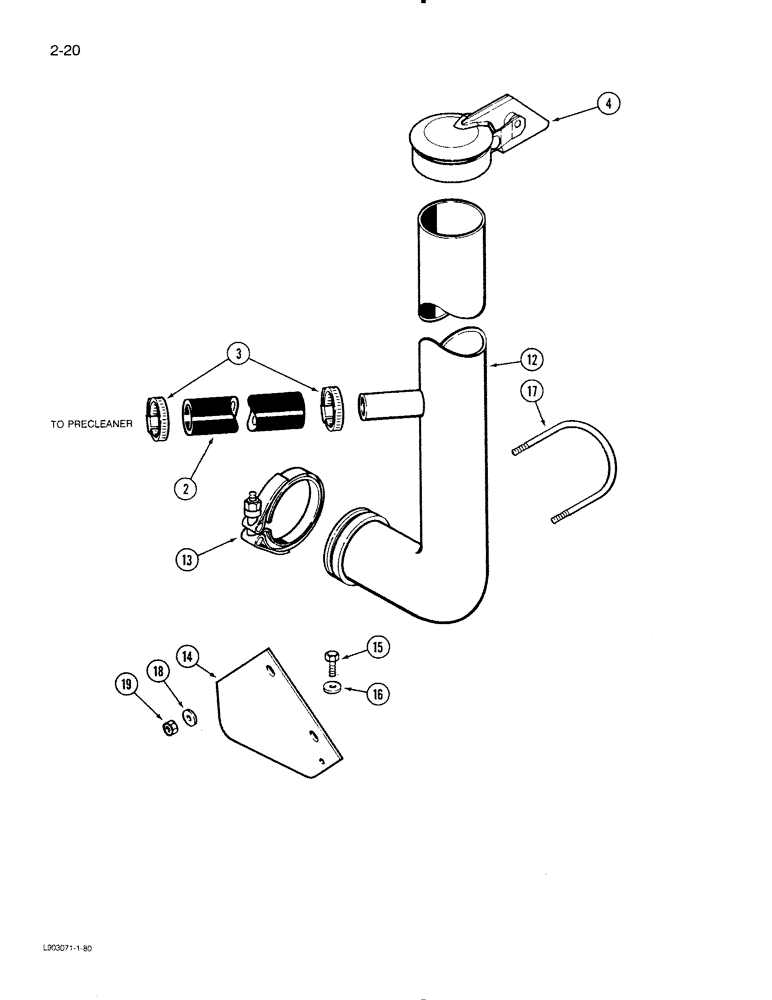

Запчасти Case IH 1620 (2-20) - EXHAUST SYSTEM (01) - ENGINE

2

NSS

NOT SOLD SEPARAT

HOSE - exhaust ejector, 380 mm long (Order 407001R2 and, Serial Range: cut-length)

1шт.

3

681896C1

HOSE CLAMP,#20, .81/1.75 Type F Worm, W/liner

CLAMP - hose retaining

2шт.

4

321863R91

CAP

ASSEMBLY - weather, exhaust

1шт.

12

1977011C3

TUBE,88.9 mm OD, 620, 197.4 mm Length

- aspirator

1шт.

13

A170467

CLAMP,72mm ID

- tube retaining

1шт.

14

84642C2

BRACKET

- tube support

1шт.

15

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

17

S93558

U-BOLT

- 3/8 inch NC

1шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

19

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

2шт.
