Запчасти Case IH 1620 (9D-08) - GRAIN AUGER TROUGH SHIELD, RICE COMBINE (16) - GRAIN ELEVATORS & AUGERS

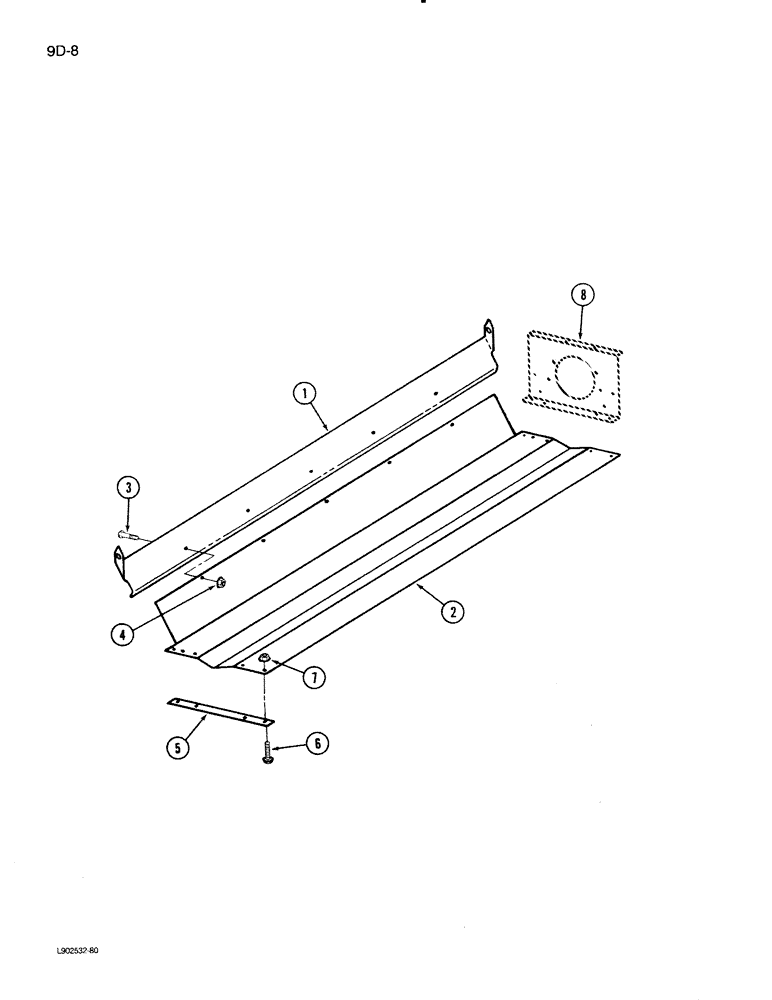

Схема запчастей Case IH 1620 - (9D-08) - GRAIN AUGER TROUGH SHIELD, RICE COMBINE (16) - GRAIN ELEVATORS & AUGERS
4
3
1
2
5
6
7
8

Артикул

Название

Примечание

Количество

1

1303483C1

SUPPORT ASSY.

SUPPORT - shield

1шт.

2

186396C1

SUPPORT

SHIELD - trough

1шт.

3

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

5шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

5шт.

5

1303035C1

BAR

SPACER - shield

1шт.

6

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

4шт.

7

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

4шт.

8

REF

INSTRUCTION

SUPPORT - main sill (See figure 9D-4)

1шт.

Выбрано товаров: 8
