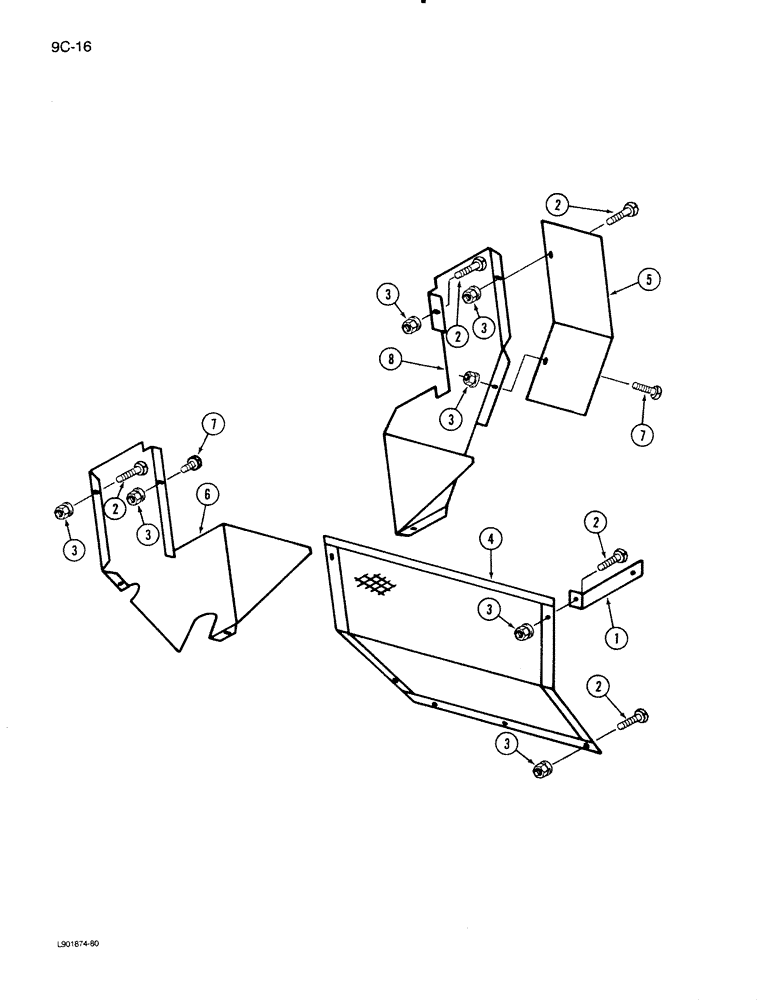

Запчасти Case IH 1620 (9C-16) - CLEANING FAN AIR INLET SHIELDS (15) - BEATER & CLEANING FANS

1

183486C1

SUPPORT

BRACE - shield

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

12шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

15шт.

4

183473C1

SHIELD

- fan, left

1шт.

5

183480C1

SHIELD

- fan, right

1шт.

6

183484C2

SUPPORT

SHIELD - fan, left front

1шт.

7

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

3шт.

8

183485C1

SUPPORT

SHIELD - fan, right front

1шт.
