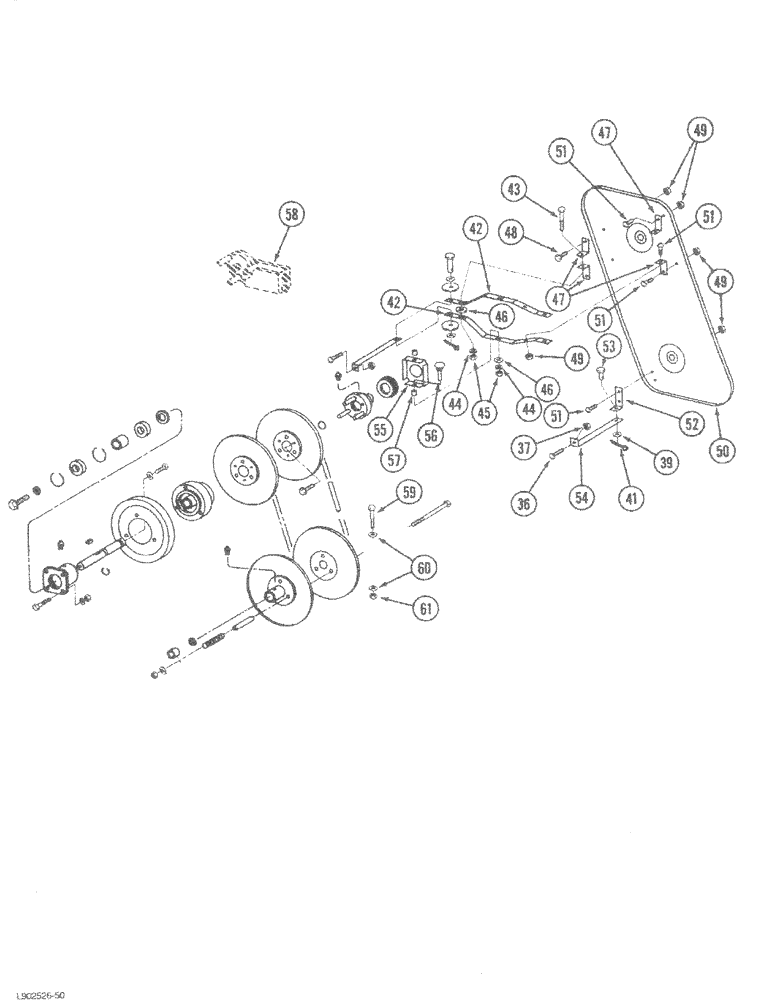

Запчасти Case IH 1620 (9C-12) - CLEANING FAN DRIVE, (CONT) (15) - BEATER & CLEANING FANS

42

194850C2

SUPPORT

- fan control

2шт.

43

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

44

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

45

9635082

NUT,5/16" - 18, Gr 5

3шт.

46

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

47

194756C2

ANGLE

- pulley shield

4шт.

48

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

1шт.

49

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

8шт.

50

186647C1

SHIELD

- fan drive

1шт.

51

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

6шт.

52

185066C1

ANGLE

- shield, lower

1шт.

53

21888R1

HEADED PIN,3/8" x 3/4", G2

PIN - headed, 3/8 x 3/4 inch

1шт.

54

194847C1

SUPPORT

- shield

1шт.

55

194852C2

SUPPORT

BRACKET - fan driver

1шт.

56

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - round head square neck, 5/16 NC x 1-1/4 inch

2шт.

57

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

Bracket 1/2" Tube x 1/2"

2шт.

58

REF

INSTRUCTION

MOTOR - variable speed (See Figure 9C-14)

1шт.

59

24867R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

- hex, 1/2 NC x 3 inch, Grade 8

1шт.

60

25546R1

WASHER,17/32" x 1 1/16" x .188", HDN

- flat, 17/32 x 1-1/16 x 3/16 inch

2шт.

61

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.
