Запчасти Case IH 1620 (9C-10) - CLEANING FAN DRIVE (15) - BEATER & CLEANING FANS

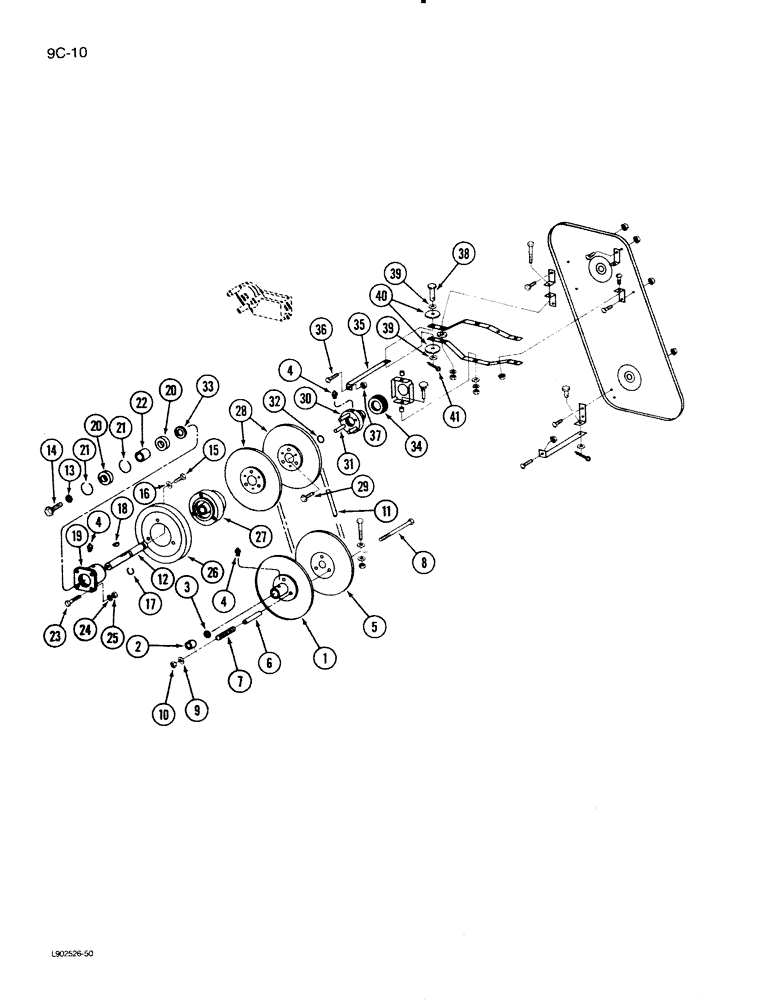

Схема запчастей Case IH 1620 - (9C-10) - CLEANING FAN DRIVE (15) - BEATER & CLEANING FANS
19
37
33
22
4
2
40
17
36
8
24
23
35
39
13
29
31
4
20
26
32
10
3
12
39
20
25
34
16
9
21
30
18
6
7
38
1
27
14
11
4
21
5
15
28
41

Артикул

Название

Примечание

Количество

1

1324948C1

PULLEY ASSY.

PULLEY ASSEMBLY - fan driven adjustable 11-1/4 inch O.D., Includes: Ref. 2 and 3

1шт.

2

629232R1

BUSHING,31.8mm ID x 34.92mm OD x 25.4mm L

- pulley

2шт.

3

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- pulley

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

3шт.

5

1324949C1

PULLEY ASSY.

PULLEY - fan driven fixed, 11-1/4 inch O.D.

1шт.

6

185019C2

SLEEVE,8.18mm ID x 14.27mm OD x 69.85mm L

- spring

3шт.

7

1302540C1

SPRING

- pulley

3шт.

8

113-138

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

3шт.

9

20893R1

WASHER

- flat, 11/32 x 1 x 7/64 inch

3шт.

10

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

3шт.

11

599060R1

V-BELT,31.75 mm W

Fan drive, 64 inch 31.75 mm W

1шт.

12

194853C3

SHAFT

- drive

1шт.

13

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - flat, hardened

1шт.

14

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange special, 1/2 NC x 1 inch

1шт.

15

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

16

106969R1

WASHER

- flat, 11/32 x 1-1/2 x 3/64 inch

1шт.

17

609053R1

SNAP RING,#125, Ext

Ring, Snap, , bearing #125, Ext

1шт.

18

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

19

192418C1

HUB

- drive

1шт.

20

1302725C91

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - shaft

2шт.

21

360936R1

RING

- bearing retaining

2шт.

22

152926C1

SPACER

- shaft

1шт.

23

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

25

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

26

REF

INSTRUCTION

PULLEY - fan driven (See figure 9A-4)

1шт.

27

183333C1

HUB

- drive

1шт.

28

183288C1

PULLEY

- drive adjusting, 11 inch O.D.

2шт.

29

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange, 3/8 NC x 3/4 inch

6шт.

30

185286C91

HUB

ASSEMBLY - drive adjusting, Includes: Ref. 31

1шт.

31

25095R1

SPLIT PIN/SAFETY PIN

PIN - dowel, 1/2 x 3-1/2 inch

3шт.

32

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

- hub, 1-1/4 x 1-1/2 inch

1шт.

33

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

WASHER - bearing retainer, hardened

1шт.

34

168215C91

BALL BEARING

BEARING - fan jackshaft

1шт.

35

186283C1

SUPPORT

- control

1шт.

36

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - slotted, 3/8 NC x 1 inch

2шт.

37

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

38

21964R1

HEADED PIN,3/8" x 1 1/2"

PIN - headed, 3/8 x 1-1/2 inch

1шт.

39

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/64 inch

4шт.

40

21752R1

WASHER

- flat, 13/32 x 1-1/2 x 3/64 inch

2шт.

41

648002

KNIFE

PIN SPLIT (COTTER), 1/8" x 3/4"

2шт.

Выбрано товаров: 41
