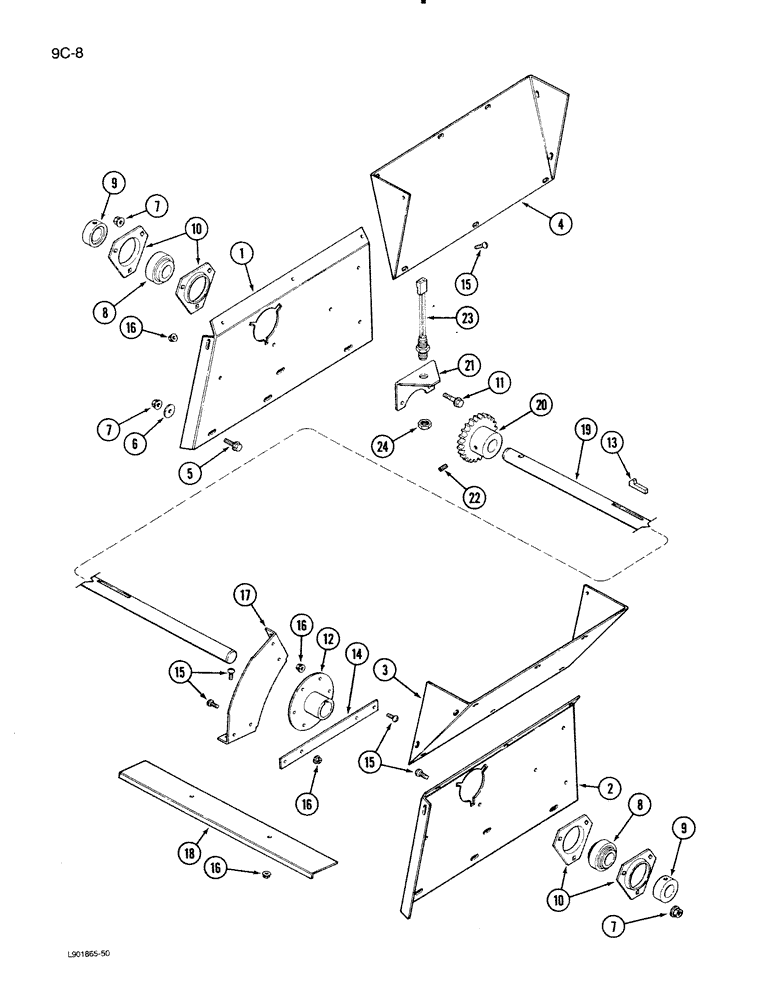

Запчасти Case IH 1620 (9C-08) - CLEANING FAN (15) - BEATER & CLEANING FANS

1

183078C1

SUPPORT

- shaft bearing, left

1шт.

2

183079C1

SUPPORT

- shaft bearing, right

1шт.

3

REF

INSTRUCTION

SHIELD - intake, right (See Figure 9C-12)

1шт.

4

REF

INSTRUCTION

SHIELD - intake, left (See Figure 9C-12)

1шт.

5

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - slotted truss head lock, 3/8 NC x 1 inch

6шт.

6

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/64 inch

6шт.

7

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

12шт.

8

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

BEARING - fan shaft

2шт.

9

455104R11

COLLAR

ASSEMBLY - bearing locking

2шт.

10

180955C1

FLANGED BEARING,0.375"

FLANGE - shaft bearing

4шт.

11

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange, 3/8 NC x 3/4 inch

6шт.

12

1303095C1

HUB ASSY.

HUB - fan

2шт.

13

Q1497

KEY,Gib, 3/8" Sq x 2"

- gib, 3/8 x 2 inch

2шт.

14

185483C1

BAR

- fan

12шт.

15

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

60шт.

16

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange, 5/16 inch NC

60шт.

17

185484C1

SUPPORT

WEB - blade

12шт.

18

193739C1

BLADE

- fan

6шт.

19

1310025C1

SHAFT

- fan

1шт.

20

198526C1

SPROCKET ASSY.

SPROCKET - fan speed

1шт.

21

1301240C2

SUPPORT

BRACKET - transducer

1шт.

22

431662

SET SCREW,Hex Soc, 3/8"-16 x 3/4"

SCREW - set, 3/8 x 3/4 inch

1шт.

23

245193C2

SENSOR

TRANSDUCER - speed

1шт.

24

84116C1

NUT

- lock

1шт.
