Запчасти Case IH 1620 (9B-48) - CHAFFER SIEVE (14) - ROTOR, CONCANVES & SIEVE

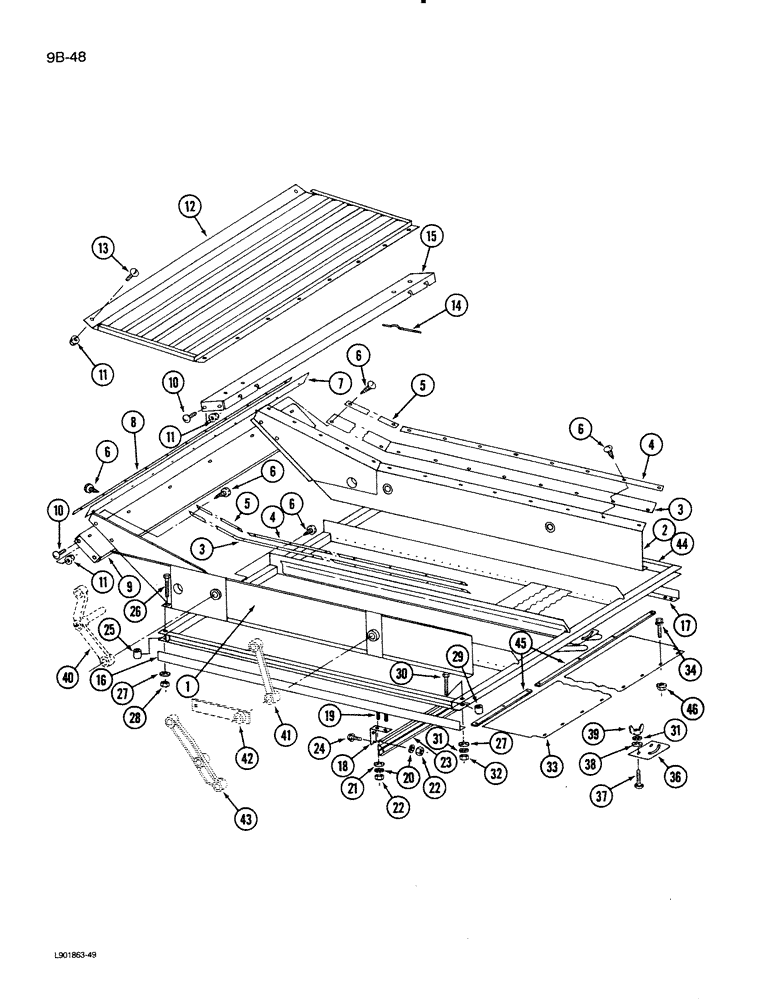

Схема запчастей Case IH 1620 - (9B-48) - CHAFFER SIEVE (14) - ROTOR, CONCANVES & SIEVE
31
8
36
29
5
40
42
20
2
6
30
37
10
9
19
21
23
41
22
6
13
44
4
22
39
3
17
24
3
38
1
27
43
15
18
4
26
25
34
33
10
6
32
12
14
6
5
31
7
27
46
45
11
11
6
11
16

Артикул

Название

Примечание

Количество

1

185430C4

RAIL

- chaffer, left

1шт.

2

185431C4

RAIL

- chaffer, right

1шт.

3

192051C3

SEALING STRIP

SEAL - chaffer rail

2шт.

4

192053C1

BAR

- chaffer rail seal

2шт.

5

192052C2

BAR

- chaffer rail seal

2шт.

6

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - tapping, 1/4 x 1/2 inch

45шт.

7

183063C1

SEAL

SEAL - chaffer frame front

1шт.

8

183062C1

BAR

- chaffer frame front seal

1шт.

9

183065C1

SUPPORT

- chaffer frame

1шт.

10

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss, 5/16 NC x 3/4 inch

8шт.

11

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

18шт.

12

183059C2

PANEL ASSY.

PAN - grain

1шт.

13

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

10шт.

14

175114C1

FINGER,Formed, 1 Prong, 264mm L

- auger bed

10шт.

15

183061C2

SUPPORT

CHANNEL - chaffer pan

1шт.

16

186369C1

ANGLE

- chaffer support, left

1шт.

17

186370C1

ANGLE

- chaffer support, right

1шт.

18

186674C1

ANGLE

- rear deflector

2шт.

19

443-13116

SCREW,Cross Flat Hd, 5/16"-18 x 1"

4шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

21

495-81112

WASHER,.344" x 3/4" x .120"

- flat, 11/32 x 3/4 x 7/64 inch

4шт.

22

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

23

183064C1

CHANNEL

- rear

1шт.

24

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

4шт.

25

186646C1

SPACER,5/8" Tube x 15/16"

- chaffer sieve, front, 5/8 x 15/16 inch

2шт.

26

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

- hex, 3/8 NC x 2-1/2 inch, Grade 8

2шт.

27

495-81138

WASHER,10.31mm ID x 25.4mm OD x 4.93mm Thk

- flat, 13/32 x 1 x 11/64 inch

4шт.

28

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC, Grade 8

2шт.

29

612233R1

SPACER,5/8" Tube x 1 1/8"

- chaffer sieve, rear, 5/8 x 1-3/16 inch

2шт.

30

426-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

2шт.

31

366862C1

LOCK WASHER,3/8"

3/8"

4шт.

32

429-106

NUT,3/8"-16, G8

- hex, 3/8 NC, Grade 8

4шт.

33

195187C1

SEALING STRIP

- chaffer

1шт.

34

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

7шт.

36

186675C1

ADJUSTING PLATE

- plate

1шт.

37

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT - round head square neck, 1/4 NC x 1/2 inch, Grade 2

2шт.

38

142619H

WASHER

- flat, 13/32 x 3/4 x 7/64 inch

2шт.

39

86627130

WING NUT,1/4"-20

NUT - wing, 1/4 inch NC

2шт.

40

REF

INSTRUCTION

LEVER - chaffer drive hanger (See figure 9B-40)

2шт.

41

REF

INSTRUCTION

ARM - rear hanger (See figure 9B-46)

2шт.

42

REF

INSTRUCTION

ARM - shoe rear (See figure 9B-46)

2шт.

43

REF

INSTRUCTION

LEVER - shoe (See figure 9B-46)

2шт.

44

1330681C1

GRAIN SIEVE

SIEVE ASSEMBLY - chaffer, corn slat

1шт.

44

1330682C1

GRAIN SIEVE

SIEVE ASSEMBLY - chaffer, 1-5/8 inch adjustable closz slat

1шт.

44

1330683C1

GRAIN SIEVE

SIEVE ASSEMBLY - chaffer, 1-1/8 inch adjustable grain

1шт.

44

1319091C3

GRAIN SIEVE

SIEVE ASSEMBLY - chaffer, Peterson (Parts Accessory)

1шт.

45

1338347C1

RETAINER

- chaffer, seal left

1шт.

45

1338348C1

RETAINER

- chaffer, seal right

1шт.

46

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

7шт.

Выбрано товаров: 49
