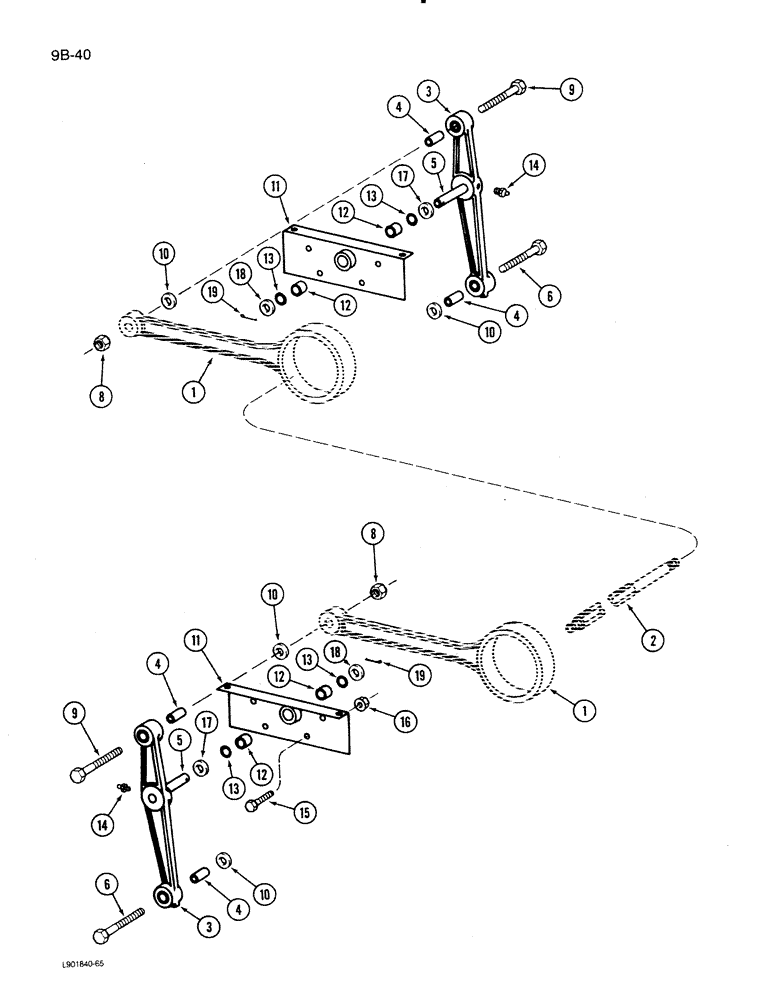

Запчасти Case IH 1620 (9B-40) - CHAFFER DRIVE HANGER LEVER AND SUPPORT (14) - ROTOR, CONCANVES & SIEVE

1

REF

INSTRUCTION

PITMAN - shaker shaft (See figure 9B-38)

2шт.

2

REF

INSTRUCTION

SHAFT - shaker (See figure 9B-38)

1шт.

3

191432C91

LEVER ASSY.

LEVER ASSEMBLY - chaffer drive hanger

2шт.

4

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

- hanger lever

2шт.

5

193133C1

SHAFT

PIN - hanger

1шт.

6

426-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

- hex, 5/8 NC x 4-1/2 inch, G8

2шт.

8

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

9

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex, 5/8 NC x 3-1/2 inch, Grade 8

2шт.

10

495-81182

WASHER,21/32" x 1 1/4" x .060"

- flat, 21/32 x 1-1/4 x 3/64 inch

2шт.

10

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, 41/64 x 1-1/4 x 1/8 inch

1шт.

11

194649C91

SUPPORT ASSY.

SUPPORT ASSEMBLY - front hanger

2шт.

12

G10642

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 19.05mm W

BEARING - support

2шт.

13

372756R91

OIL SEAL,20.45mm ID x 28.68mm OD x 3.17mm Thk

- support bearing

2шт.

14

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

FITTING - grease, 1/4 inch

2шт.

15

424-816

BOLT,Hex, 1/2" - 13 x 1", Gr 2

- hex, 1/2 NC x 1 inch, Grade 2

12шт.

16

113-930

BOLT,Hex, 1" - 8 x 7", Gr 5

NUT - hex flange lock, 1/2 inch NC

12шт.

17

495-81056

WASHER,29/32" x 1 1/2" x 3/64

- flat, 29/32 x 1-1/2 x 3/64 inch

2шт.

18

495-81057

WASHER,23.01mm ID x 38.1mm OD x 3.4mm Thk

- flat, 29/32 x 1-1/2 x 7/64 inch

1шт.

19

132-317

COTTER PIN,3/16" x 2"

PIN, SPLIT (COTTER), 3/16" x 2"

2шт.
