Запчасти Case IH 1620 (9B-38) - SHAKER SHAFT AND AUGER DRIVE (14) - ROTOR, CONCANVES & SIEVE

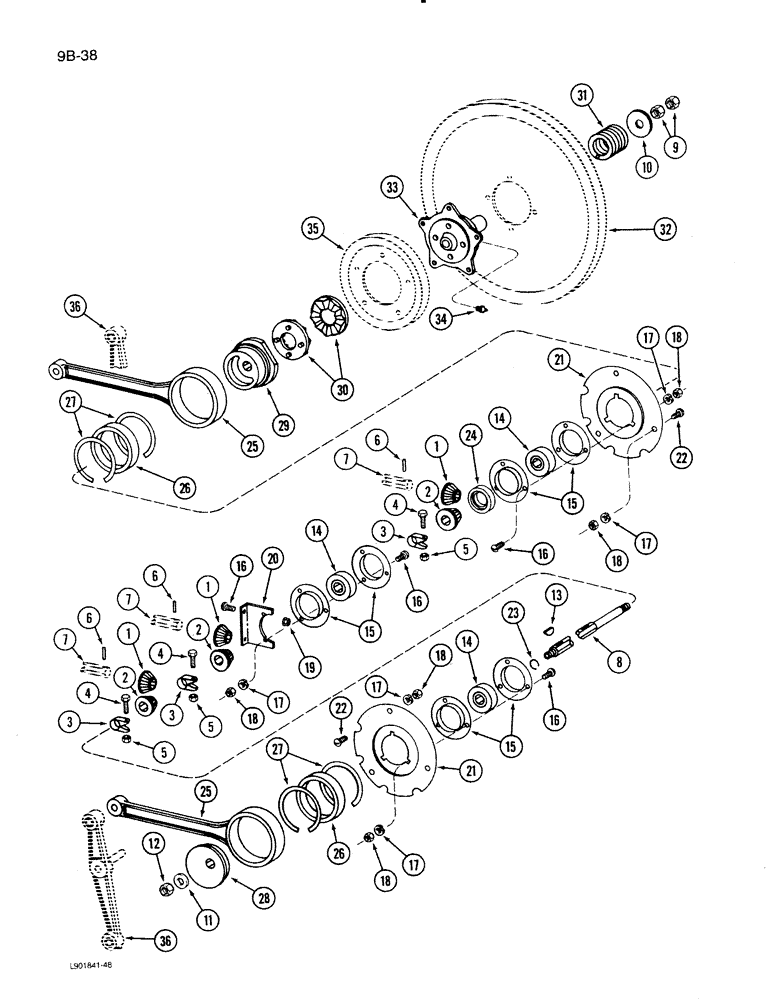

Схема запчастей Case IH 1620 - (9B-38) - SHAKER SHAFT AND AUGER DRIVE (14) - ROTOR, CONCANVES & SIEVE
36
7
4
32
16
17
14
3
18
18
16
18
2
15
26
3
28
35
27
17
22
5
21
6
34
29
9
15
4
16
5
23
4
21
17
27
17
30
33
26
12
6
6
25
20
16
36
14
1
25
17
2
31
14
13
22
1
5
15
3
18
2
19
24
11
10
1
7
7
8

Артикул

Название

Примечание

Количество

1300639C1

GEAR-SET

GEAR KIT - auger

3шт.

1

NSS

NOT SOLD SEPARAT

GEAR - drive, 14 teeth

3шт.

2

NSS

NOT SOLD SEPARAT

GEAR - driven, 14 teeth

3шт.

3

225265R1

CLAMP

- gear

3шт.

4

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

3шт.

5

9413967

LOCK NUT,1/2"-13, GB

NUT - hex prevailing torque, 1/2 inch NC

3шт.

6

617941R1

PIN,5/16" x 2", Coiled

3шт.

7

REF

INSTRUCTION

AUGER - grain, (See Figure 9B-36)

3шт.

8

183052C1

SHAFT

- shaker

1шт.

9

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC

2шт.

10

495-81215

WASHER,35.71mm ID x 57.15mm OD x 3.4mm Thk

- flat, 1-13/32 x 2-1/4 x 7/64 inch

1шт.

11

495-81045

WASHER,25/32" x 1 3/4" x .179"

- flat, 25/32 x 1-3/4 x 5/32 inch

1шт.

12

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

13

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

2шт.

14

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING - shaker shaft

3шт.

15

180955C1

FLANGED BEARING,0.375"

FLANGE - bearing

6шт.

16

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss, 3/8 NC x 1 inch

11шт.

17

492-11038

LOCK WASHER,3/8"

15шт.

18

425-106

NUT,3/8"-16, Cl 5

15шт.

19

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

20

186589C1

SUPPORT

- center bearing

1шт.

21

193978C1

RETAINER

- shaker shaft

2шт.

22

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss, 3/8 NC x 3/4 inch

6шт.

23

575186R1

SNAP RING

RING - shaft snap

2шт.

24

935856R1

BUSHING

- shaker shaft

1шт.

25

186549C1

PITMAN

- shaker shaft

2шт.

26

193132C91

BALL BEARING,82.55mm ID x 120.65mm OD x 25.4mm W

BEARING - pitman

2шт.

27

892775C1

SNAP RING,#475, 5.070", Int

RING - internal retaining

4шт.

28

183053C2

ECCENTRIC

CAM - pitman, left

1шт.

29

191429C2

CAM

- pitman, right

1шт.

30

B12170

RATCHET,Clutch Slip, 94.49mm

- slip clutch

2шт.

31

19302K

SPRING

- slip clutch

1шт.

32

REF

INSTRUCTION

PULLEY - shaker shaft driven (See figure 9A-4)

1шт.

33

1303136C1

HUB

- slip clutch drive

1шт.

34

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

35

REF

INSTRUCTION

PULLEY - straw spreader drive (See Figure 9F-2)

1шт.

36

REF

INSTRUCTION

LEVER - chaffer drive hanger (See figure 9B-40)

2шт.

Выбрано товаров: 37
