Запчасти Case IH 1620 (9B-32) - CONCAVES AND GRATES (14) - ROTOR, CONCANVES & SIEVE

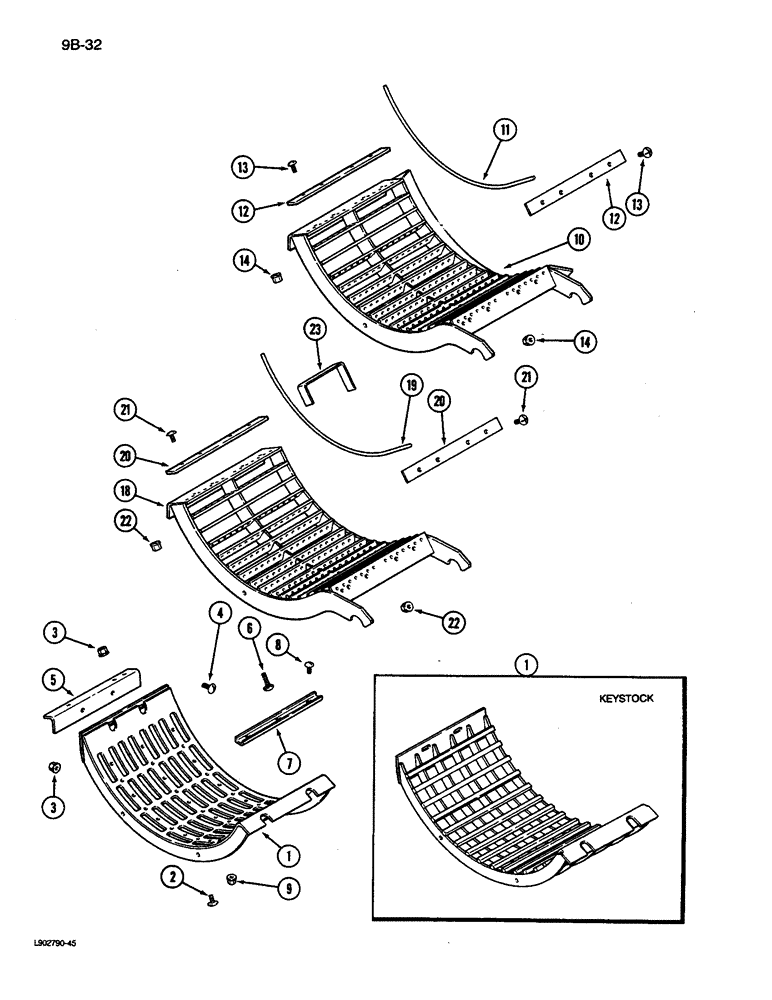

Схема запчастей Case IH 1620 - (9B-32) - CONCAVES AND GRATES (14) - ROTOR, CONCANVES & SIEVE
8
2
1
6
10
13
12
21
3
12
14
3
18
7
11
9
1
22
21
5
20
19
14
13
2
22
20
4

Артикул

Название

Примечание

Количество

1

1303001C2

GRATE ASSY.

GRATE - slotted

1шт.

1

1303002C3

GRATE

GRATE - keystock

1шт.

2

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

1шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

1шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss, 3/8 NC x 1 inch

1шт.

5

1303008C1

SUPPORT

- grate

1шт.

6

1302788C1

FLANGE BOLT,Serr, Hex, 3/8" - 16 x 1 1/4", Gr 8

Hex Flg, 3/8"-16 x 1 1/4 inch, Serr

1шт.

7

191536C1

CHANNEL

- grate adjusting

1шт.

8

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

1шт.

9

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

1шт.

10

193985C5

CONCAVE

ASSEMBLY - front (1/4 inch diameter rod)

1шт.

10

183289C4

CONCAVE

ASSEMBLY - front (3/16 inch diameter rod)

1шт.

11

194257C2

ROD

- concave, 1/4 inch diameter

14шт.

11

186044C2

ROD

- concave, 3/16 inch diameter

30шт.

12

193859C1

PLATE

BAR - concave rod retaining

2шт.

13

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

SCREW - hex serrated, flange, 3/8 NC x 1 inch

8шт.

14

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

8шт.

18

193986C5

CONCAVE

ASSEMBLY - No. 2 or 3 position (1/4 inch diameter rod)

1шт.

18

183292C4

CONCAVE

ASSEMBLY - No. 2 or 3 position (3/16 inch diameter rod)

1шт.

19

194257C2

ROD

- concave, 1/4 inch diameter

1шт.

19

186044C2

ROD

- concave, 3/16 inch diameter

1шт.

20

193859C1

PLATE

BAR - concave rod retaining

1шт.

21

1319406C1

SERRATED SCREW,Cross Rec Truss Hd, 3/8" - 16 x 1", Spcl

- hex serrated, flange, 3/8 NC x 1 inch

1шт.

22

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

8шт.

1300716C91

CHANNEL

FILLER KIT - concave, large wire (Corn)

1шт.

23

1309424C1

CHANNEL

FILLER - large rod concave filler (1/4 inch diameter rod)

6шт.

1300673C91

PACKAGE

FILLER KIT - concave, small wire (Grain)

1шт.

23

1309425C1

CHANNEL

FILLER - small rod concave filler (3/16 inch diameter rod)

6шт.

Выбрано товаров: 28
