Запчасти Case IH 1620 (9B-28) - ROTOR CAGE REAR SUPPORT (14) - ROTOR, CONCANVES & SIEVE

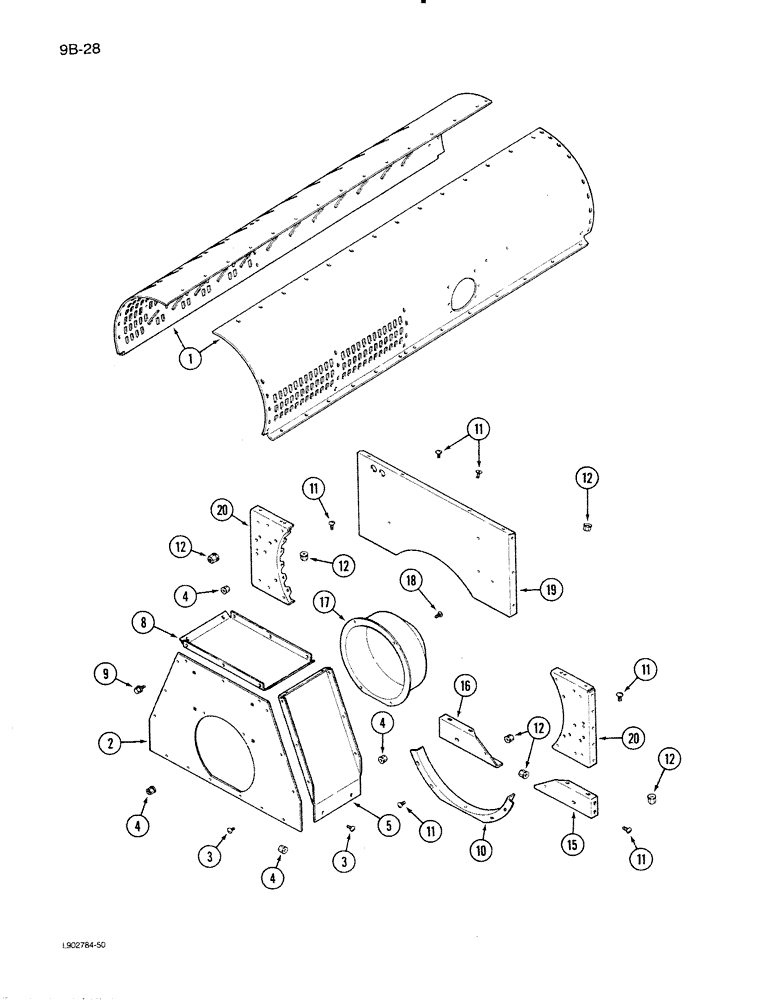

Схема запчастей Case IH 1620 - (9B-28) - ROTOR CAGE REAR SUPPORT (14) - ROTOR, CONCANVES & SIEVE
4
11
16
11
11
12
11
20
8
20
2
3
4
17
19
12
5
1
11
12
15
4
10
12
4
12
18
3
9

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CAGE - rotor (See Figure 9B-24)

2шт.

2

186073C1

SHEET

PLATE - rear

1шт.

3

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss, 5/16 NC x 1/2 inch

9шт.

4

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

30шт.

5

194185C1

SUPPORT

COVER - support, side

2шт.

8

193170C1

COVER

- support, top

1шт.

9

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

7шт.

10

181355C1

ANGLE

SUPPORT - rear

1шт.

11

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss, 3/8 NC x 3/4 inch

39шт.

12

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock

39шт.

15

181354C1

SUPPORT

- lower, right

1шт.

16

181353C1

SUPPORT

- lower, left

1шт.

17

181485C1

RETAINER

COVER - retainer

1шт.

18

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss, 5/16 NC x 3/4 inch

14шт.

19

186067C1

SUPPORT

- section, upper

1шт.

20

194183C1

SUPPORT

- cage

2шт.

Выбрано товаров: 16
