Запчасти Case IH 1620 (2-14) - AIR INDUCTION SYSTEM (01) - ENGINE

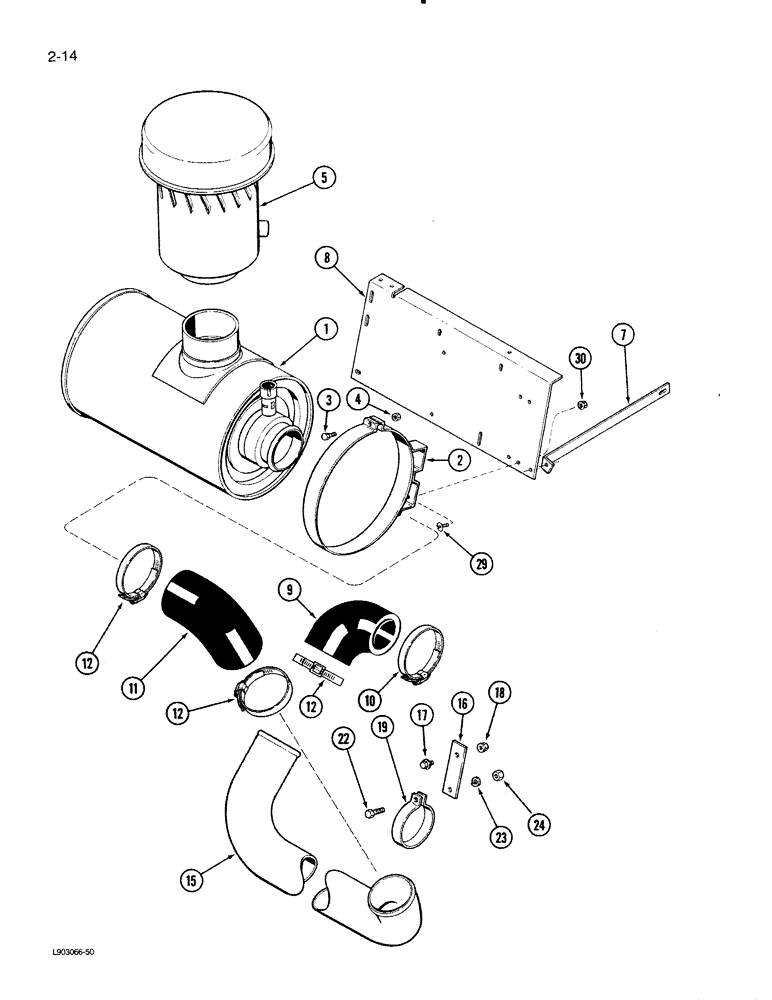

Схема запчастей Case IH 1620 - (2-14) - AIR INDUCTION SYSTEM (01) - ENGINE
12
19
17
22
10
15
29
7
3
23
12
11
9
24
4
8
2
16
18
5
1
12
30

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

CLEANER ASSEMBLY - air, engine (See figure 2-16)

1шт.

2

259922C91

BAND

- air cleaner mounting, Includes: Ref. 3 and 4

2шт.

3

113-121

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

4

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

5

1275728C1

PRECLEANER

- air induction

1шт.

7

1347003C1

SUPPORT

BRACKET - air cleaner support

1шт.

8

1979873C2

SUPPORT

ANGLE - air cleaner

1шт.

9

548222R1

INTAKE AIR HOSE,3.00" ID, 4.00" ID x 4.25"

ELBOW - inlet engine

1шт.

10

146569C1

CLAMP

- hose, No. 56 shoe, Type F

1шт.

11

218899R1

ELBOW

- air cleaner outlet

1шт.

12

146570C1

CLAMP

- hose, No. 72 shoe, Type F

3шт.

15

1970446C1

AIR INTAKE TUBE

TUBE - air cleaner outlet

1шт.

16

187509C1

BAR

BRACKET - tube support

1шт.

17

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

6шт.

18

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

6шт.

19

1970473C1

CLAMP

- inlet tube retaining

1шт.

22

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

23

492-11038

LOCK WASHER,3/8"

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

29

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

4шт.

30

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

Выбрано товаров: 21
