Запчасти Case IH 1620 (9B-24) - ROTOR CAGE (14) - ROTOR, CONCANVES & SIEVE

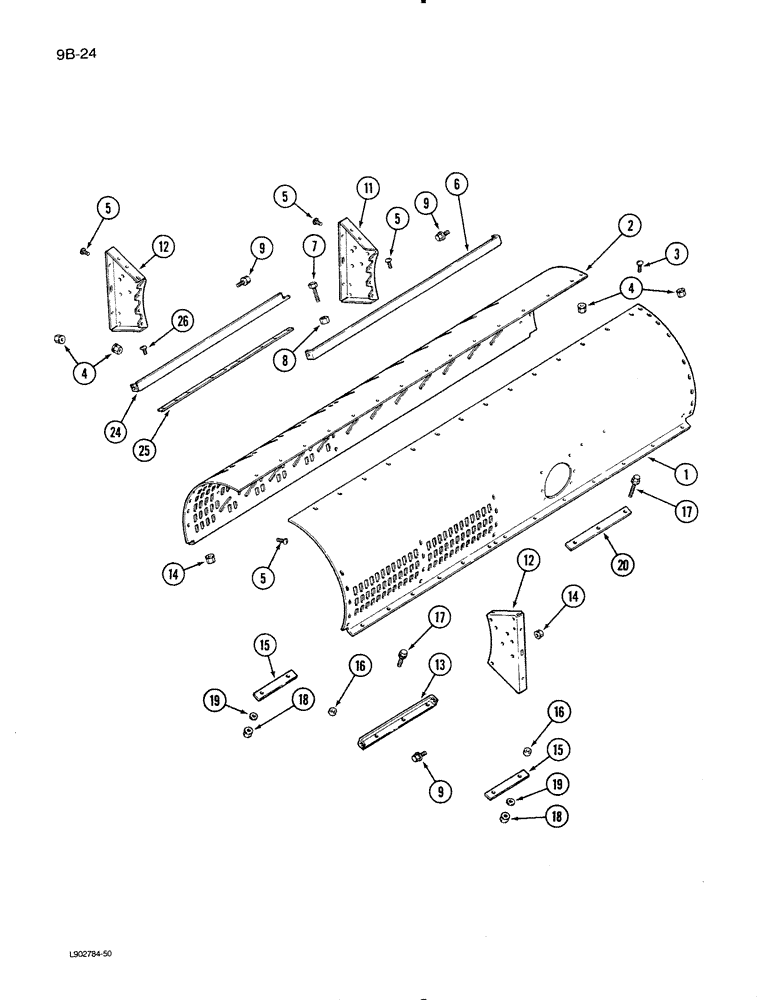

Схема запчастей Case IH 1620 - (9B-24) - ROTOR CAGE (14) - ROTOR, CONCANVES & SIEVE
4
26
15
12
12
15
25
5
18
18
9
18
3
2
9
5
5
17
1
6
24
16
13
8
5
19
4
16
20
14
17
14
7
11
9

Артикул

Название

Примечание

Количество

1

194182C3

CAGE

- rotor, right

1шт.

2

1319310C2

CAGE

- rotor, left

1шт.

3

1302160C1

SCREW,Truss HD, 3/8" - 16 x 3/4"

LOCK, Sltd Truss Hd, 3/8"-16 x 3/4"

21шт.

4

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

36шт.

5

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss, 3/8 NC x 3/4 inch

15шт.

6

188333C1

SUPPORT

cage, right

1шт.

7

352657C1

BOLT,Hex, 1/2" - 13 x 2"

- hex special, 1/2 NC x 2 inch

2шт.

8

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

4шт.

9

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

SCREW - hex flange lock, 1/2 NC x 1 inch

6шт.

11

1338379C1

SUPPORT

- middle cage, left

1шт.

12

194184C1

SUPPORT

- middle, cage

3шт.

13

182634C3

SUPPORT

- cage grate, right

1шт.

14

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

13шт.

15

186784C2

BAR

- hanger

3шт.

16

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

Bar 1/2" X-Strng Pipe x 9/16"

6шт.

17

426-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- hex, 1/2 NC x 2 inch, Grade 8

6шт.

18

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

6шт.

19

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x .095") 1/2", SAE

6шт.

20

186785C2

REINFORCEMENT

BAR - reinforcement

1шт.

24

185386C1

SUPPORT

- cage

1шт.

25

183323C1

STRAP

- support

1шт.

26

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

SCREW - hex flange lock, 3/8 NC x 1 inch

1шт.

Выбрано товаров: 22
