Запчасти Case IH 1620 (9B-20) - ROTOR, SPECIALTY CROP, (CONT) (14) - ROTOR, CONCANVES & SIEVE

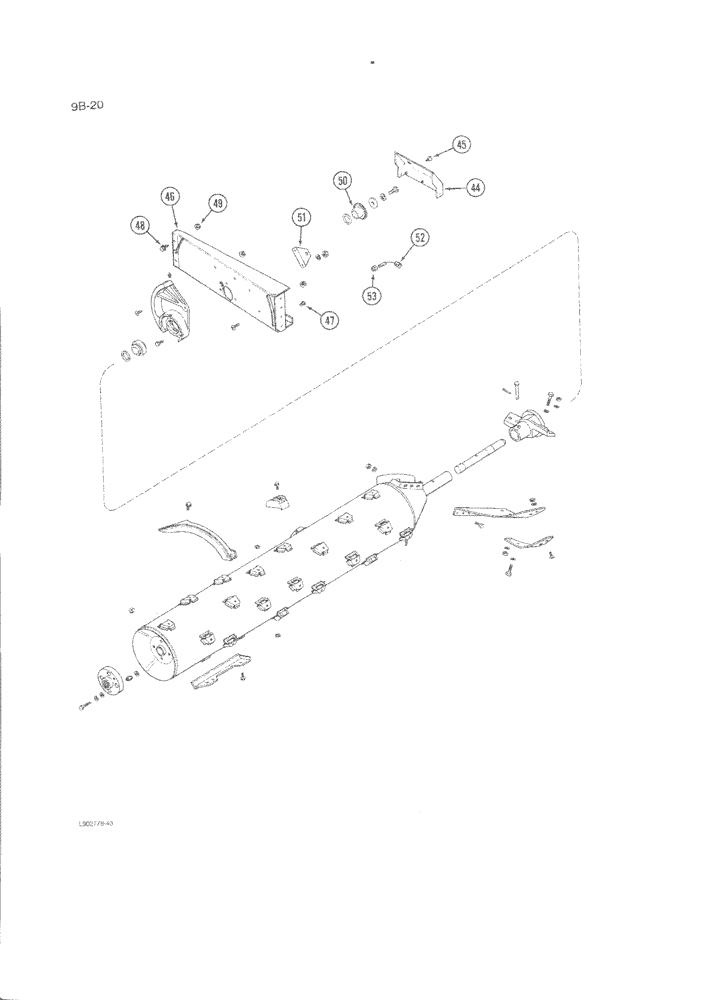

Схема запчастей Case IH 1620 - (9B-20) - ROTOR, SPECIALTY CROP, (CONT) (14) - ROTOR, CONCANVES & SIEVE
46
50
49
45
44
48
52
53
51
47

Артикул

Название

Примечание

Количество

44

182845C4

SHIELD

- sensor

1шт.

45

121-228

SERRATED BOLT,Hex, 3/8" - 16 x 3/4"

3шт.

46

194206C3

SUPPORT

- rotor front bearing

1шт.

47

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss, 3/8 NC x 3/4 inch

3шт.

48

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

- hex flange, 1/2 NC x 1-1/4 inch

7шт.

49

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

7шт.

50

1979965C1

ROTOR

- transducer, RPM

1шт.

51

1301239C1

BRACKET

BRACKET - transducer mounting

1шт.

52

245193C2

SENSOR

TRANSDUCER - rotor RPM

1шт.

53

425-1512

JAM NUT,Jam, 3/4"-10, G5

- hex jam, 3/4 inch NC

1шт.

Выбрано товаров: 10
