Запчасти Case IH 1620 (9B-18) - ROTOR, SPECIALTY CROP (14) - ROTOR, CONCANVES & SIEVE

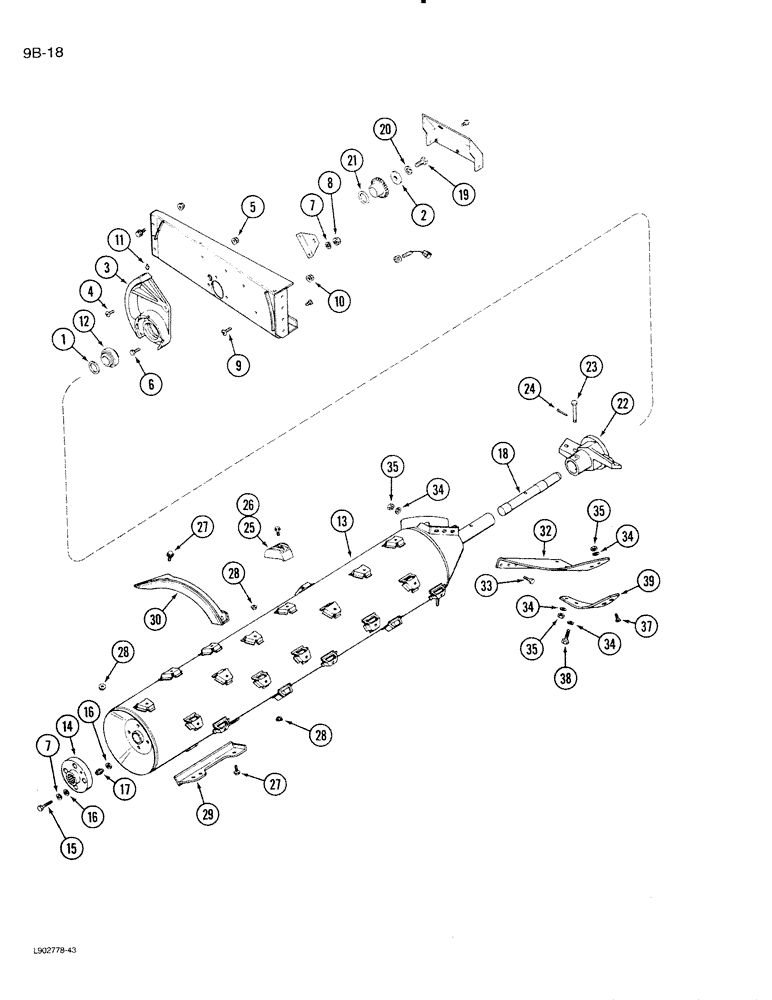

Схема запчастей Case IH 1620 - (9B-18) - ROTOR, SPECIALTY CROP (14) - ROTOR, CONCANVES & SIEVE
5
15
11
7
14
3
17
34
39
20
16
28
10
34
7
32
13
27
28
27
38
24
21
9
35
29
25
5
6
16
4
28
1
30
35
33
23
34
19
8
35
22
34
26
18
12
37

Артикул

Название

Примечание

Количество

1

183449C1

WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk

WASHER - bearing front housing

1шт.

2

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

- rotor shaft

1шт.

3

1309076C1

BEARING HOUSING

- rotor front bearing

1шт.

4

179464C1

SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"

- slotted truss, 3/8 NC x 1-1/4 inch

2шт.

5

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

38шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

7шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

9

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss, 5/16 NC x 1 inch

2шт.

10

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

2шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

12

193282C91

BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm

BEARING - rotor front

1шт.

13

1317404C92

ROTOR ASSY.

ROTOR ASSEMBLY - threshing, Includes: Ref. 14 - 39

1шт.

14

1303175C91

HUB

COUPLING - rotor drive

1шт.

15

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, Grade 8

6шт.

16

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

- flat, 17/32 x 1-1/2 x 1/8 inch

8шт.

17

186808C1

DAMPER

BUSHING KIT - coupling (Set of 4)

1шт.

18

188470C1

SHAFT

- rotor

1шт.

19

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

- hex, 3/4 NC x 1-3/4 inch

1шт.

20

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

21

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

- flat, 2-1/32 x 2-3/4 x 1/16 inch

5шт.

22

183366C2

IMPELLER

- rotor

1шт.

23

22109R1

HEADED PIN

PIN - headed, 3/4 x 4-1/2 inch

1шт.

24

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

25

1309175C1

BAR

- rasp with spike

14шт.

26

1309336C1

BAR

- rasp without spike

1шт.

27

204060C1

BOLT,Hex Serr Flg, 1/2" - 13 x 1 1/4"

- hex flange, 1/2 NC x 1-1/4 inch

1шт.

28

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex prevailing torque, 1/2 inch NC

1шт.

29

1318976C1

BAR

- separator (If equipped)

2шт.

30

1321506C1

ANGLE

- kicker

2шт.

32

1957447C1

PACKAGE

BLADE KIT - rotor impeller (Set of 2), Includes: Ref. 33 - 39

1шт.

33

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

6шт.

34

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- hardened, 17/32 x 1-1/4 x 3/16 inch

26шт.

35

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

16шт.

37

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

SCREW - hex socket flat, 1/2 NC x 1-1/2 inch

6шт.

38

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, Grade 8

2шт.

38

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- hex, 1/2 NC x 2-1/2 inch, Grade 8

2шт.

39

1309185C1

SUPPORT

BAR - wear

2шт.

Выбрано товаров: 38
