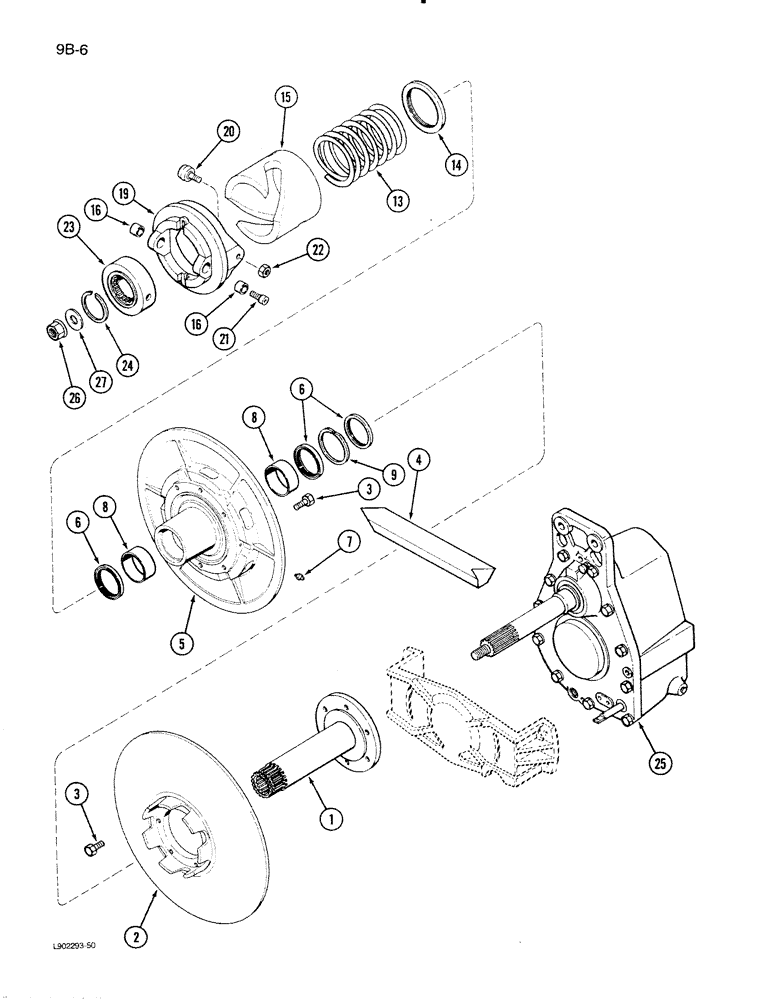

Запчасти Case IH 1620 (9B-06) - ROTOR DRIVE (14) - ROTOR, CONCANVES & SIEVE

1

1315291C1

HUB

- fixed variable pulley

1шт.

2

1315292C1

PULLEY

- fixed variable

1шт.

3

26318R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch

12шт.

4

1302174C1

V-BELT,2361.48 mm L

Rotor Variable Drive 2361.48 mm L

1шт.

5

184426C1

PULLEY ASSY.

PULLEY ASSEMBLY - adjustable variable, Includes: Ref. 6 - 9

1шт.

6

193965C91

SEAL

- pulley

3шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

8

188839C92

BUSHING,69.85mm ID x 74.64mm OD x 31.75mm L

KIT - pulley (Set of 2) (lncludes Ref. 6)

2шт.

9

537602R1

RING

- pulley retaining

1шт.

13

193936C2

SPRING

- rotor drive torque sensing

1шт.

14

1315521C1

THRUST BEARING

BEARING ASSEMBLY - rotor drive thrust

1шт.

15

1315299C1

CAMSHAFT

CAM - rotor drive torque sensing , Includes: Ref. 16

1шт.

16

193941C1

BUSHING,22.23mm ID x 25.41mm OD x 15.88mm L

- cam

2шт.

19

1315297C2

HUB,20T

YOKE - torque sensing cam follower

1шт.

20

1315343C1

BEARING,38.1 mm OD x 22.22 mm

- cam follower

2шт.

21

194167C1

SCREW,5/8 - 11" x 1"

BOLT - cam follower pivot

2шт.

22

425-1110

NUT,5/8"-18, G5

2шт.

23

1315344C2

HUB

- cam follower

1шт.

24

360171R1

SNAP RING,M66.67 x 3.23mm Thk, Ext

- hub cam follower retaining

1шт.

25

REF

INSTRUCTION

HOUSING ASSEMBLY - drive, rotor (See figure 9B-12)

1шт.

26

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

- hardened

1шт.

27

1315288C1

FLANGE NUT

- special lock

1шт.
