Запчасти Case IH 1620 (9B-04) - ROTOR DRIVE HOUSING MOUNTING, (CONT) (14) - ROTOR, CONCANVES & SIEVE

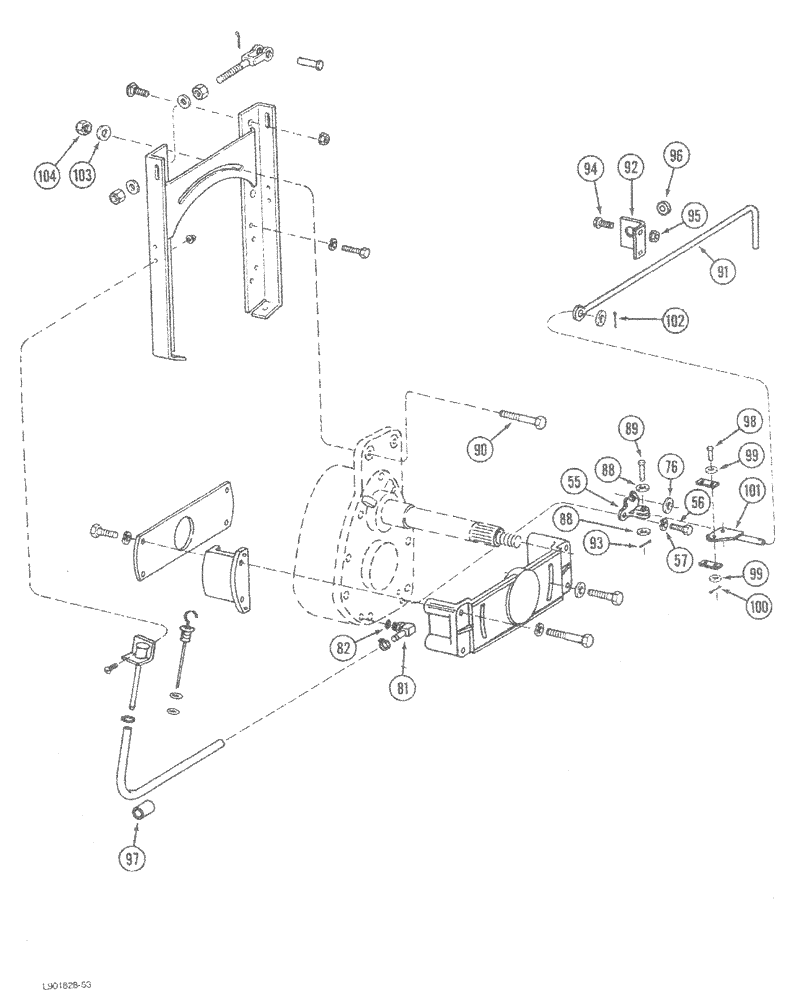

Схема запчастей Case IH 1620 - (9B-04) - ROTOR DRIVE HOUSING MOUNTING, (CONT) (14) - ROTOR, CONCANVES & SIEVE
98
88
81
91
89
55
99
82
96
101
92
100
93
56
76
95
57
102
97
88
94
90
99
103
104

Артикул

Название

Примечание

Количество

55

1303126C1

PIVOT

- shift

1шт.

56

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

57

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

76

25536R1

WASHER

- flat, 17/32 x 1-1/16 x 3/32 inch

1шт.

81

188272C1

ELBOW

- gear housing

1шт.

82

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, 1/2" OD tube

1шт.

88

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

89

28234R1

HEADED PIN,3/8" x 1 1/2"

PIN - clevis, 3/8 x 1-1/2 inch

1шт.

90

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

Hex, 3/4"-10 x 2-1/2", G5

2шт.

91

1303131C1

ROD

- lever shaft control linkage

1шт.

92

1303137C1

ANGLE

- rod lever control link

1шт.

93

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

94

541313R1

BOLT,Hex Serr Flg, 3/8" - 16 x 3/4"

- hex flange, 3/8 NC x 3/4 inch

2шт.

95

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

96

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- control rod

1шт.

97

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SEAL - clamp, oil hose cover

1шт.

98

21886R1

HEADED PIN,1/4" x 1"

PIN - clevis, 1/4 x 1 inch

2шт.

99

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

100

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

101

1303127C1

LARGE PIN

LEVER - shift

1шт.

102

432-1216

COTTER PIN,3/16" x 1"

1шт.

103

495-11081

WASHER,3/4", SAE

2шт.

104

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

Выбрано товаров: 23
