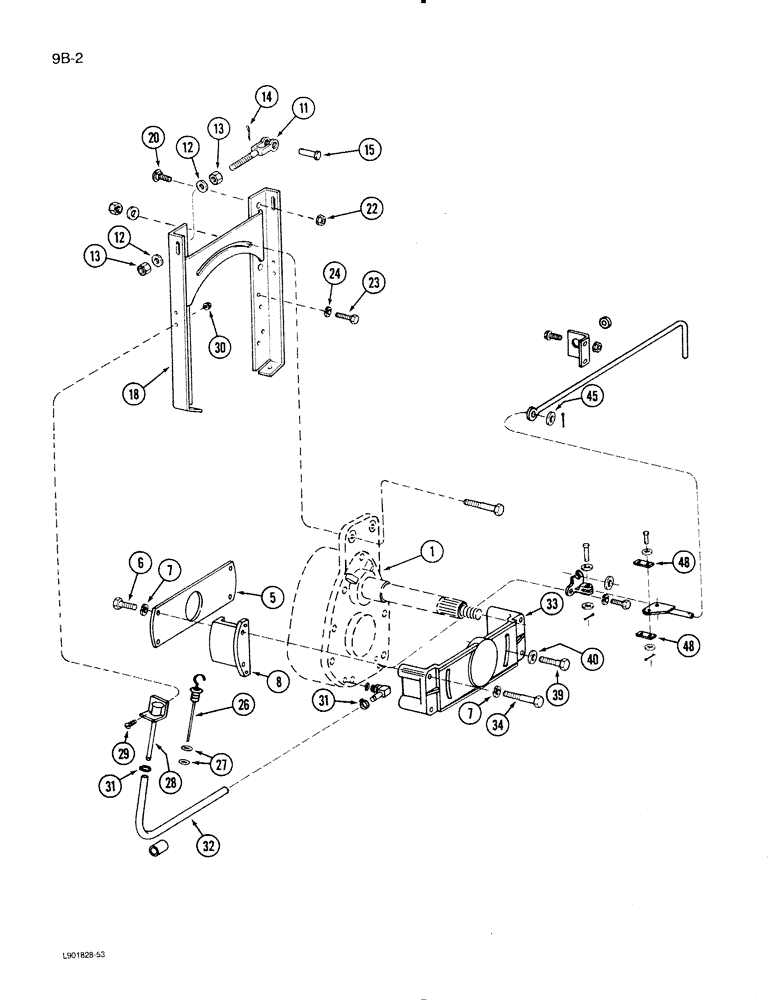

Запчасти Case IH 1620 (9B-02) - ROTOR DRIVE HOUSING MOUNTING (14) - ROTOR, CONCANVES & SIEVE

1

REF

INSTRUCTION

HOUSING ASSEMBLY - drive, rotor (See figure 9B-12)

1шт.

5

181445C1

SUPPORT

PLATE - support, front

1шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

8

181446C1

BLOCK

- housing support, front

2шт.

11

1979987C1

CLEVIS

- belt tightener

1шт.

12

495-61066

WASHER

- flat, 21/32 x 1-3/4 x 3/32 inch

2шт.

13

425-1010

NUT,5/8"-11, G5

2шт.

14

32-816

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

15

138087

CLEVIS PIN,5/8" x 1.610"

PIN - clevis, 5/8 x 1-5/8 inch

2шт.

18

1338399C1

SUPPORT ASSY.

SUPPORT - gear housing

1шт.

20

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

6шт.

22

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- flange lock, 1/2 inch NC

6шт.

23

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

26

194066C91

DIPSTICK

GAUGE ASSEMBLY - rotor gear housing

1шт.

27

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

28

193946C1

TUBE,12.7 mm OD

- gear housing gauge

1шт.

29

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - slotted truss, 5/16 NC x 3/4 inch

2шт.

30

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- flange lock, 5/16 inch NC

2шт.

31

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

retaining #4, 0.25/0.62 Type F Worm

2шт.

32

NSS

NOT SOLD SEPARAT

HOSE - gear housing (Order S118466 and, Serial Range: cut-length)

1шт.

33

1303135C1

SUPPORT

- gear housing, rear

1шт.

34

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch

4шт.

39

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

40

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- hardened, 17/32 x 1-1/4 x 3/16 inch

2шт.

45

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 5/64 inch

1шт.

48

1303133C1

BAR

- shift lever

2шт.
