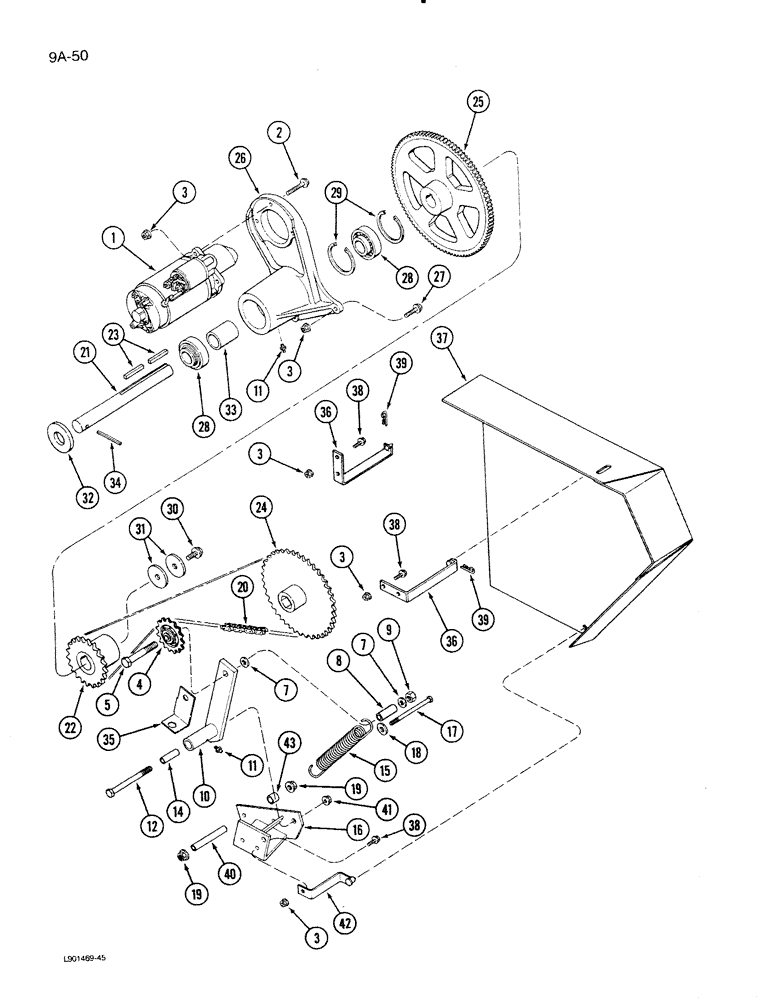

Запчасти Case IH 1620 (9A-50) - FEEDER REVERSER, WITHOUT ROCK TRAP (13) - FEEDER

1

REF

INSTRUCTION

MOTOR ASSEMBLY - feeder reverser (See Figure 4-46)

1шт.

2

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

3

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

12шт.

4

629972R91

DRIVE SPROCKET,15T

SPROCKET - idler, 15 teeth

1шт.

5

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

7

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

8

UA17298

SPACER,7/8" Tube x 1 1/16"

- tube, 7/8 x 1-1/16 inch

1шт.

9

131-1219

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

10

1979305C1

ARM

SUPPORT - idler

1шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

12

326-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 8

1шт.

14

1979303C1

SPACER

- tube, 7/8'' by 4''.

1шт.

15

1330032C1

SPRING

- return

1шт.

16

1979299C2

SUPPORT

- idler bar

1шт.

17

326-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 8

1шт.

18

495-81002

WASHER,3/8"

- flat, 7/16 x 1-3/8 x 5/64 inch

2шт.

19

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

1шт.

20

NSS

NOT SOLD SEPARAT

CHAIN - drive (Use 75 links from No. 60H chain and one connecting link, 1329768C1)

1шт.

21

1321534C1

SHAFT

- reverser

1шт.

22

1329717C1

SPROCKET

- drive, 20 teeth

1шт.

23

Q51

KEY,3/8" Sq x 2 1/2", Par

2шт.

24

1329720C2

SPROCKET

- driven, 40 teeth

1шт.

25

1321537C91

FLYWHEEL

- reverser drive

1шт.

26

1321539C1

HOUSING

- shaft and motor

1шт.

27

187620C1

BOLT,Hex Serr Flg, 3/8" - 16 x 1 1/2"

- hex flange, 3/8 NC x 1-1/2 inch

2шт.

28

597537R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING - ball, shaft

2шт.

29

659676R1

SNAP RING,3.156", Int, #315

Ring, Snap, , brg 3.156", Int, #315

2шт.

30

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- hex flange, 1/2 NC x 1 inch

1шт.

31

495-91167

WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk

- flat, 17/32 x 2 x 7/64 inch

4шт.

32

896-16036

WASHER,39mm ID x 78mm OD x 7mm Thk

- flat, 39 x 78 x 7 mm

1шт.

33

1321523C1

SPACER

- feeder reverser

1шт.

34

28340R1

PIN,1/2" x 3", Coiled

1шт.

35

1979322C1

SUPPORT ASSY.

SUPPORT - shaft speed monitor

1шт.

36

1321782C2

SUPPORT

- shield

2шт.

37

1321516C2

GUARD

SHIELD - feeder reverser

1шт.

38

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex lock, 3/8 NC x 1 inch

6шт.

39

480523R1

HAIR PIN COTTER

quick attachable

3шт.

40

1979304C1

SPACER

- spring

1шт.

41

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

1шт.

42

1979319C1

SUPPORT ASSY.

SUPPORT - reverser shield

1шт.

43

28367R1

SPACER,7/8" Tube x .720"

- tube, 7/8 x 7/8 inch

1шт.
