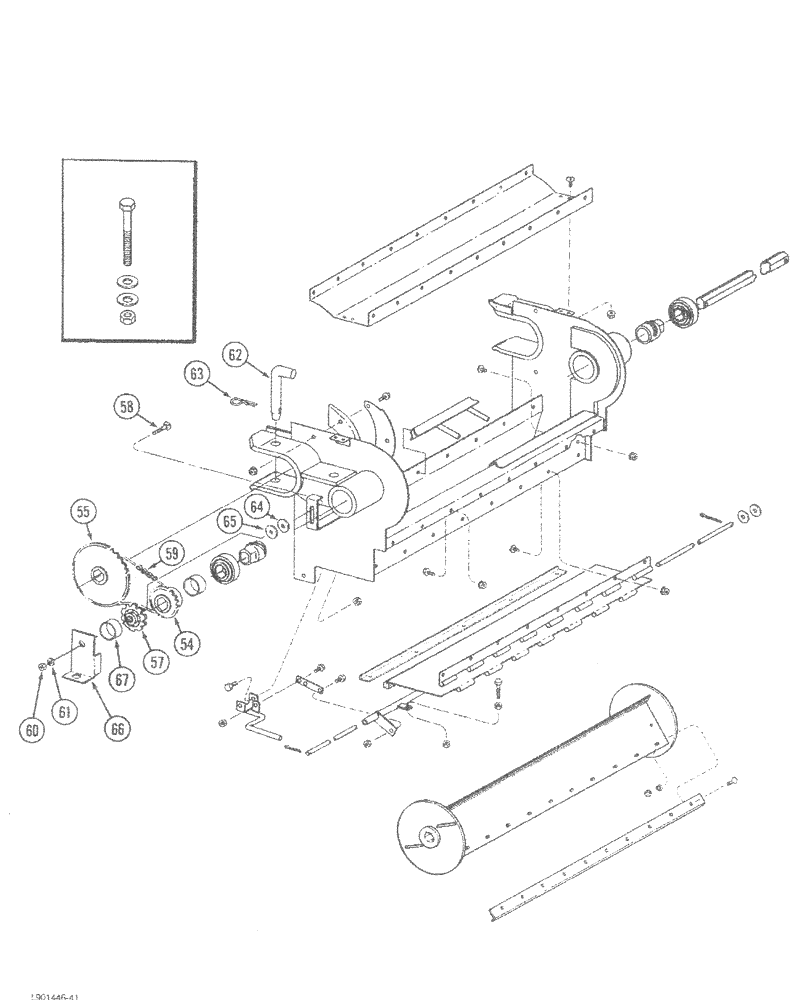

Запчасти Case IH 1620 (9A-46) - ROCK TRAP, (CONT) (13) - FEEDER

54

1329719C2

SPROCKET

- drive, 20 tooth

2шт.

55

1320110C3

SPROCKET

- drive

1шт.

57

541857R92

SPROCKET,15T

- idler, 15 tooth

1шт.

58

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

1шт.

59

NSS

NOT SOLD SEPARAT

CHAIN - drive

1шт.

For service use 124 links of 1979285C1 chrome roller chain and 2 connecting links 1329768C1.

1шт.

60

129-107

NUT,5/8"-11, G5

1шт.

61

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

62

192533C2

ROD

PIN - pivot

1шт.

63

486830R1

COTTER PIN

PIN - cotter, quick attachable

1шт.

64

N11720

WASHER

- flat, 21/32 x 1-1/2 x 7/64 inch (Square hole)

1шт.

65

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

66

1317950C1

SUPPORT

- shaft speed sensor

1шт.

67

187217C1

SPACER,7/8" Tube x 1 13/16"

- pivot, 7/8 x 1-13/16 inch

1шт.
