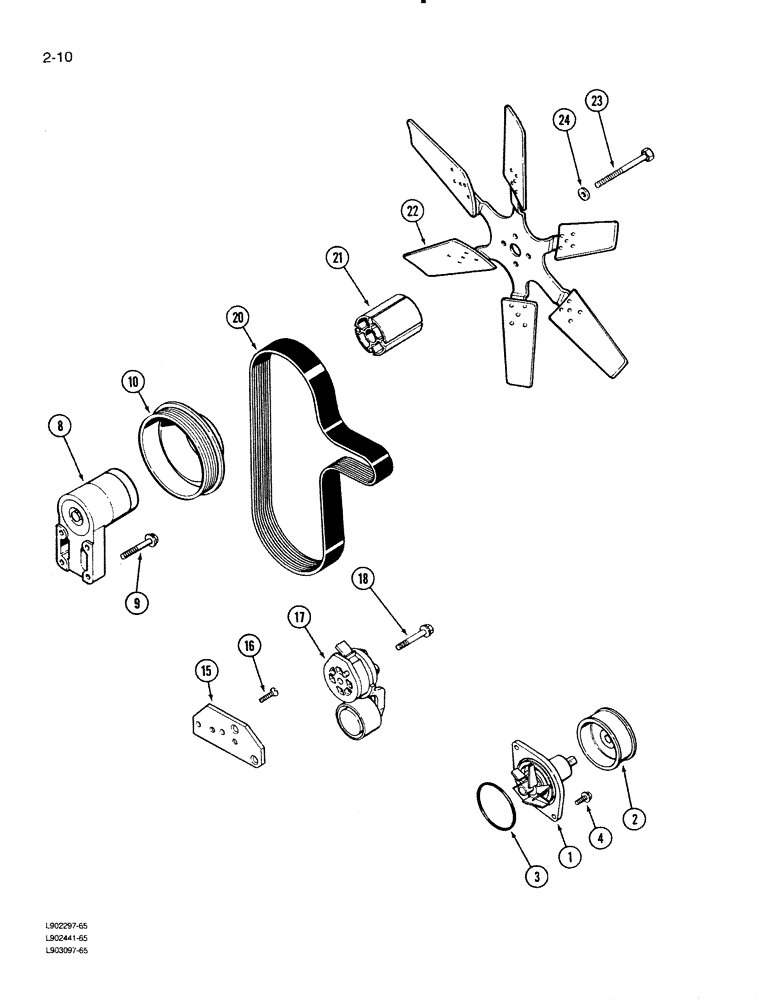

Запчасти Case IH 1620 (2-10) - WATER PUMP SYSTEM, 6T-590 ENGINE (01) - ENGINE

AR77703

PUMP

- water, remanufactured

1шт.

J286278R

REMAN-WATER PUMP

1620 S/N JJC0032630 & Aft.

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

AC77703

CORE-WATER PUMP

RETURN NUMBER - use this part number to return pump core for credit

1шт.

A77703

PUMP, WATER

PUMP KIT - water, Includes: Ref. 1 - 3

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

1620 S/N JJC0032630 & Aft.

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP ASSEMBLY - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump (Order A77471)

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

8

J913433

BRACKET

ASSEMBLY - fan

1шт.

9

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- heavy hex flange, 8 mm - 1.25 x 40 mm, 8.8

4шт.

10

J914462

PULLEY,163mm OD

- fan

1шт.

15

J904552

SUPPORT

BRACKET - belt tension

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Flat head cap Torx Soc, M8 x 1.25 x 25

2шт.

17

J914086

BELT TENSIONER

TENSIONER ASSEMBLY - belt

1шт.

18

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9

1шт.

20

J911565

V-BELT,27.92mm W x 1473.2mm L, 8 Ribs

Fan 3.56 mm W x 1473.20 mm L, 8 Ribs

1шт.

21

A184548

SPACER,Fan, 89/90mm Thk

- fan

1шт.

22

84583C2

FAN

- engine, puller

1шт.

23

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, 10 mm - 1.50 x 130 mm, Grade 8

4шт.

24

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

- lock, 10 mm

12шт.
