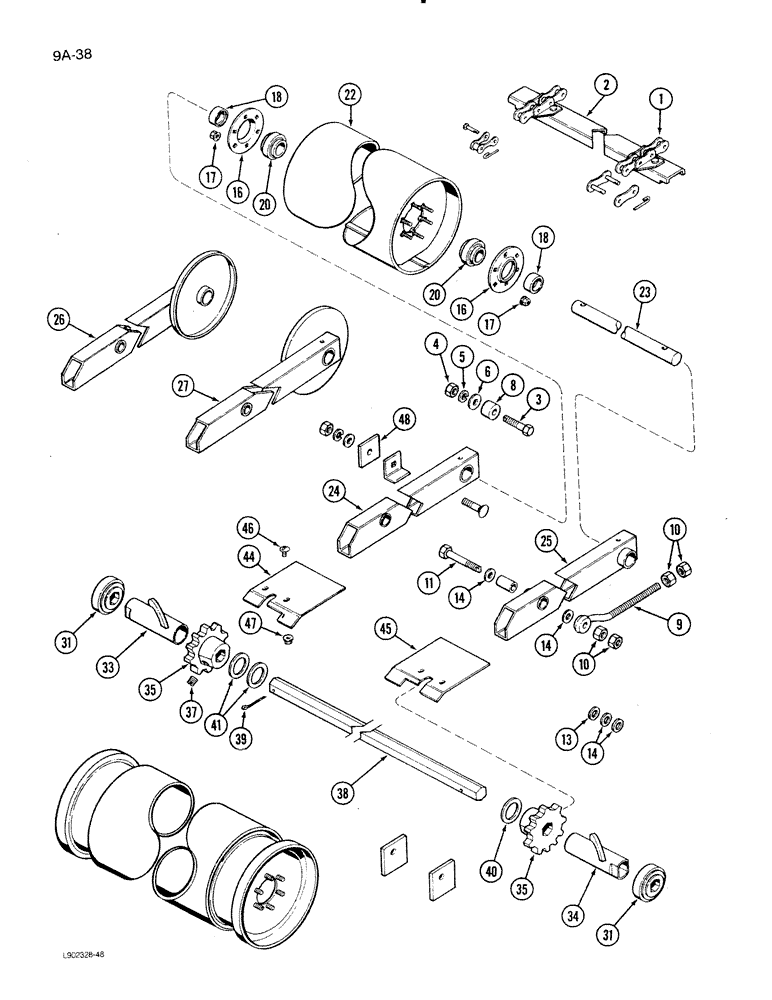

Запчасти Case IH 1620 (9A-38) - FEEDER CONVEYOR (13) - FEEDER

1

1324266C2

CHAIN (CE)

CHAIN - conveyor (Grain and corn)

1шт.

1

1323678C2

CHAIN (AG)

CHAIN - conveyor (Rice)

1шт.

2

1313419C2

KIT

SLAT - conveyor (Grain and corn)

1шт.

2

1300287C1

CONNECTING STRIP

SLAT - conveyor (Rice)

1шт.

3

189709C1

BOLT,Hex, 1/2" - 13 x 3"

- clamp, chain

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

6

495-81162

WASHER,17/32" x 1 1/2" x .179"

- flat, 17/32 x 1-1/2 x 11/64 inch

2шт.

8

197211C1

SPACER

- stop, drum

2шт.

9

176508C1

BOLT,5/8" - 11 x 228.60mm

- tightening

2шт.

10

425-1010

NUT,5/8"-11, G5

8шт.

11

187218C1

BOLT

- support arm, drum

2шт.

13

495-81182

WASHER,21/32" x 1 1/4" x .060"

- flat, 21/32 x 1-1/4 x 3/64 inch

1шт.

14

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

2шт.

16

1330461C1

FLANGED BEARING

- bearing, drum

4шт.

17

1306680C1

FLANGE NUT

NUT - hex flange, 3/8 inch NC

12шт.

18

557995R11

COLLAR

ASSEMBLY - locking, bearing

2шт.

20

619738R91

BALL BEARING,1.2505" ID x 62 mm OD x 1.4375"

- drum, conveyor

2шт.

22

1957437C1

DRUM

- conveyor (Without stone retarder)

1шт.

23

187207C2

SHAFT,31.75mm OD x 909.3mm L

SHAFT - drum, feeder

1шт.

24

1338291C1

ARM

- drum, left (Grain and corn)

1шт.

25

1338292C1

ARM

- drum, right (Grain and corn)

1шт.

26

1319875C3

ARM

- drum, left (Rice)

1шт.

27

1319876C3

ARM

- drum, right (Rice)

1шт.

31

179665C91

BALL BEARING,38.1mm Hex x 85mm OD x 30mm W

BEARING ASSEMBLY - shaft

2шт.

33

178780C1

SPACER

- sprocket, left

1шт.

34

178781C1

SPACER

- sprocket, right

1шт.

35

1970248C1

SPROCKET ASSY.

SPROCKET - chain, conveyor

2шт.

37

197643C1

SET SCREW

- set, sprocket

4шт.

38

1321714C1

BAR

SHAFT - conveyor

1шт.

39

432-2040

COTTER PIN,5/16" x 2 1/2"

Pin, Split (Cotter), 5/16" x 2 1/2"

2шт.

40

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

- flat, 1-25/32 x 2-1/2 x 3/32 inch

2шт.

44

185818C1

STRIPPER ASSY.

STRIPPER - pivot, left

1шт.

45

185819C1

STRIPPER ASSY.

STRIPPER - pivot, right

1шт.

46

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss, 3/8 NC x 3/4 inch

4шт.

47

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

48

187347C1

PLATE

BAR - stop, upper (Without stone retarder)

2шт.

50

187364C2

ANGLE

- stop, upper

2шт.

51

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - round head square neck, 5/8 NC x 2-1/4 inch

2шт.

52

425-1010

NUT,5/8"-11, G5

2шт.

53

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

54

498-81008

SQ HOLE WASHER,41/64" x 1 1/4" x .060", Sq Hole

- flat square hole, 21/32 x 1-1/4 x 3/64 inch

2шт.

55

187225C1

BAR

- stop, upper (With stone retarder) (With decal)

2шт.

57

187217C1

SPACER,7/8" Tube x 1 13/16"

- pivot, 7/8 x 1-13/16 inch

2шт.

60

1957439C1

DRUM

- conveyor (With stone retarder)

1шт.

63

1324294C1

LINK,40.893mm Pitch

LINK ASSEMBLY - conveyor (With riveted pins), Includes: Ref. 64

1шт.

64

1329837C1

PIN

- S Type

2шт.

65

1324281C1

LINK,A557, Links x 41.4mm = mm

LINK ASSEMBLY - conveyor

1шт.

70

1324835C1

OFFSET LINK

LINK ASSEMBLY - offset, conveyor (With roller)

1шт.

71

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

72

1306680C1

FLANGE NUT

NUT - hex flange collar lock

1шт.
