Запчасти Case IH 1620 (9A-34) - FEEDER LIFT AND LOWER COVERS (13) - FEEDER

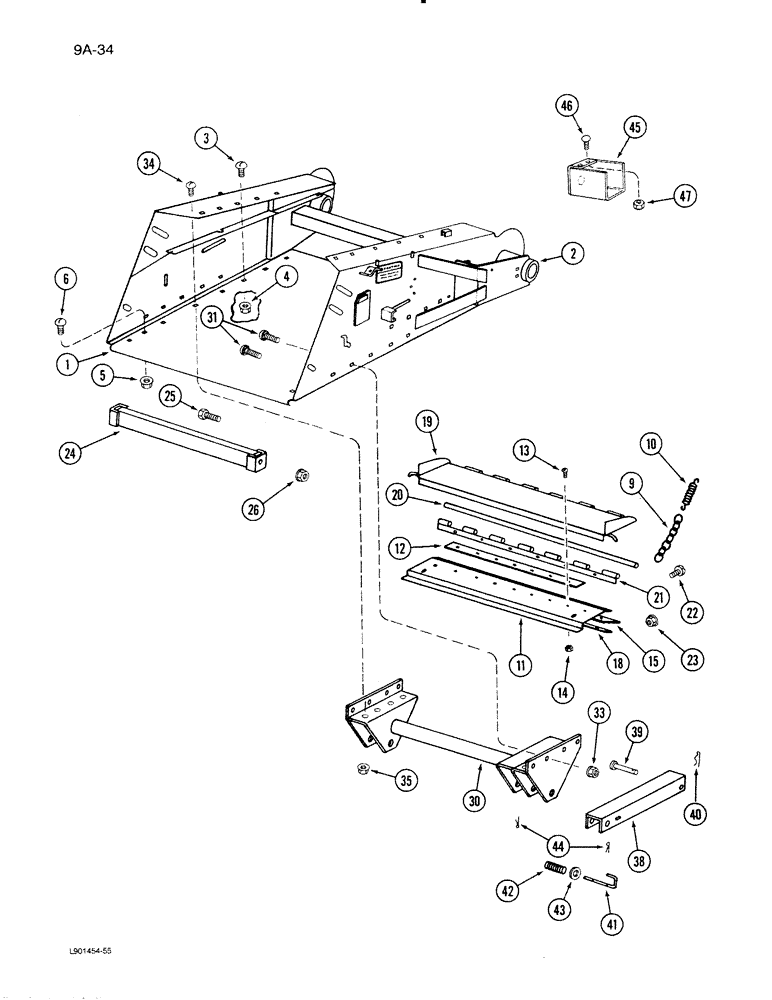

Схема запчастей Case IH 1620 - (9A-34) - FEEDER LIFT AND LOWER COVERS (13) - FEEDER
2
47
13
5
24
21
31
26
10
3
34
30
4
6
18
42
23
40
19
41
11
22
35
25
45
20
38
33
1
12
46
39
43
14
15
44
9

Артикул

Название

Примечание

Количество

1

1324576C1

PLATE

- support bottom

1шт.

Ref #1A - 1345462C1 Perforated (See D3205) Edible Bean Only

1шт.

2

REF

INSTRUCTION

HOUSING - feeder (See Figure 8-32)

1шт.

Ref #2 - Should read (See Figure9A-32 Ref. #5)

1шт.

3

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss, 3/8 NC x 1 inch

6шт.

4

1319840C1

FLANGE NUT,Flg, 3/8"-16, G8

- hex lock, 3/8 inch NC

6шт.

5

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, 1/2 inch NC

4шт.

6

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

4шт.

9

167570C1

CHAIN,203.2mm L

- latch, lower door

2шт.

10

635503R1

SPRING,148.8mm Free Length

- latch, lower door

2шт.

11

1319961C1

SUPPORT

- bottom, feeder rear

1шт.

12

1319965C1

BAR

- spacing, support

1шт.

13

443-11012

SCREW,Cross Flat Hd, #10-24 x 3/4"

- flat head Phillips, No. 10 x 3/4 inch

6шт.

14

196922C1

LOCK NUT

- hex lock, No. 10

6шт.

15

1319963C1

SEAL

SEAL - rear, feeder

1шт.

18

197429C1

SEALING STRIP

- seal, door

1шт.

19

193362C2

DOOR

- bottom

1шт.

20

159012C1

ROD

- hinge, door

1шт.

21

193364C2

HINGE

- plate

1шт.

22

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss, 3/8 NC x 3/4 inch

6шт.

23

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

6шт.

24

187192C1

SUPPORT ASSY.

SUPPORT - bottom, rear

1шт.

25

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

26

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

2шт.

30

197382C2

SUPPORT ASSY.

BRACKET - support, lift

1шт.

31

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

8шт.

33

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange lock, 1/2 inch NC

8шт.

34

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss, 3/8 NC x 1 inch

8шт.

35

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

8шт.

38

197554C3

CHANNEL

- lock, lift cylinder

1шт.

39

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN - clevis, 3/8 x 3-1/4 inch

1шт.

40

586591R1

COTTER PIN

PIN - cotter, hair 1/8 inch

1шт.

41

197849C1

ROD

- lock, cylinder

1шт.

42

M296

SPRING

- rod, lock

1шт.

43

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

44

432-88

COTTER PIN,1/8" x 1/2"

PIN, SPLIT (COTTER), 1/8" x 1/2"

2шт.

45

1327992C2

GUARD

SHIELD - sensor, feeder

1шт.

46

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

47

403276R1

NUT

- speed, 5/16 inch NC

2шт.

Выбрано товаров: 39
