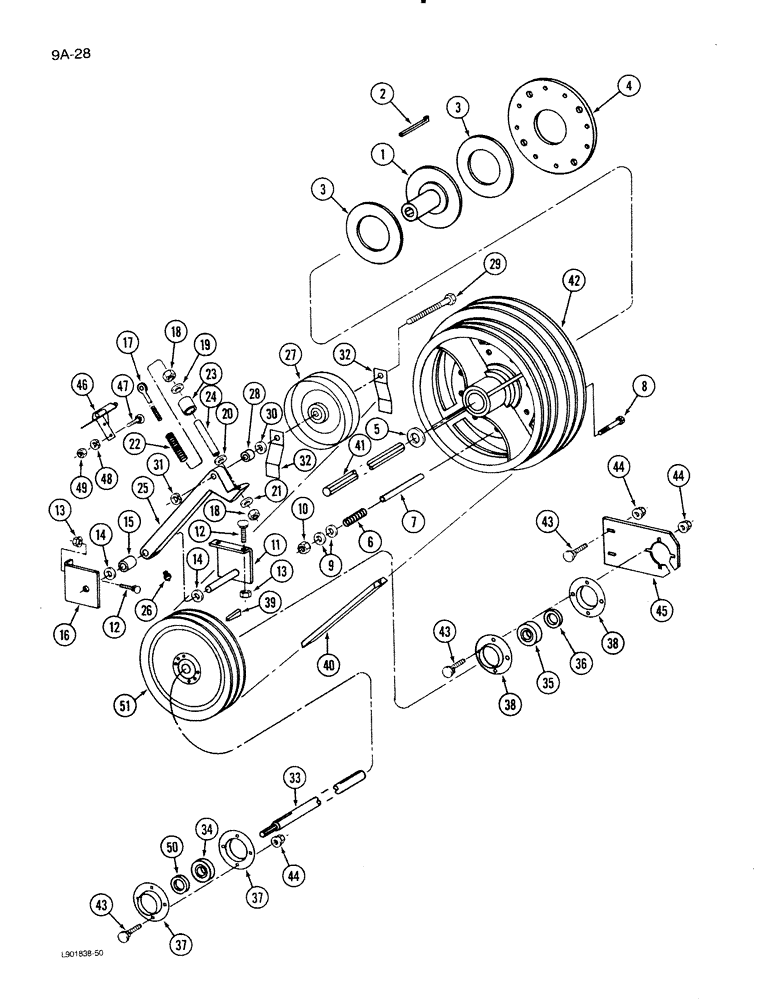

Запчасти Case IH 1620 (9A-28) - FEEDER JACKSHAFT DRIVE (13) - FEEDER

1

1305154C2

HUB

- slip clutch

1шт.

2

Q3959

COTTER PIN,Gib, 3/8" Sq x 4 1/2"

2шт.

3

181579C1

DISC

DISC - slip clutch friction

2шт.

4

185955C1

PLATE

- slip clutch

1шт.

5

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

- flat, 1-25/32 x 2-1/2 x 3/32 inch

1шт.

6

1305692C2

SPRING

- slip clutch

8шт.

7

181583C2

SPACER

- spring

8шт.

8

1315318C1

BOLT,Hex, 3/8" - 16 x 5", Type 5

- hex, 3/8 NC x 5 inch

8шт.

9

495-81143

WASHER,13/32" x 1 1/2" x .120"

16шт.

10

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

8шт.

11

181701C1

PIN ASSY.

PLATE - pin, idler pivot

1шт.

12

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

4шт.

13

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

4шт.

14

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

2шт.

15

27828R1

SPACER,26.6mm ID x 33.4mm OD x 39.7mm L

1шт.

16

182323C1

SUPPORT

- idler

1шт.

17

181704C2

PLUG,1/2" - 13 x 356mm

BOLT - tightener

1шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

19

495-71053

WASHER,13.49mm ID x 44.45mm OD x 2.54mm Thk

- flat, 17/32 x 1-3/4 x 3/32 inch

1шт.

20

495-61066

WASHER

- flat, 21/32 x 1-3/4 x 3/32 inch

1шт.

21

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

22

355105R1

SPRING

- adjusting bolt

1шт.

23

1313002C1

SPACER

- adjusting bolt spring

1шт.

24

181710C1

BUSHING

- spacer

1шт.

25

181705C1

LEVER

- idler

1шт.

26

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8 inch PT

1шт.

27

187388C91

PULLEY

- tightener, 8 inch O.D.

1шт.

28

M80215

SPACER

- drive tightener

1шт.

29

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

1шт.

30

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

31

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

32

187404C1

GUIDE

- belt

2шт.

33

1319481C3

SHAFT

- feeder cross

1шт.

34

455111R91

BALL BEARING,38.113 mm ID x 52.25 mm OD x 24.32, 42.8 mm

BEARING - jackshaft, left

1шт.

35

664597R91

BALL BEARING,1.5005" ID x 90 mm OD x 1.625"

- jackshaft, right

1шт.

36

664598R11

COLLAR

- locking, right

1шт.

37

663562R1

FLANGE

- jackshaft bearing, left

2шт.

38

619333R1

FLANGED BEARING

- jackshaft bearing, right

2шт.

39

Q1376

KEY

- tapered, 3/8 x 2-1/4 inch

1шт.

40

1313094C1

V-BELT,22.33 mm W x 3344.69 mm L

Feeder Jackshaft Drive 22.33 mm W x 3344.69 mm L

1шт.

41

REF

INSTRUCTION

SHAFT - feed conveyor (See Figure 9A-38)

1шт.

42

REF

INSTRUCTION

PULLEY - feeder drive (See Figure 9A-4)

1шт.

43

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - round head square neck, 1/2 NC x 1 inch

8шт.

44

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

8шт.

45

1321629C1

STRAP

SUPPORT - bearing, right

1шт.

46

181695C2

BRACKET

SUPPORT - tightener bolt

1шт.

47

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

4шт.

48

492-11038

LOCK WASHER,3/8"

4шт.

49

425-106

NUT,3/8"-16, Cl 5

4шт.

50

455112R11

COLLAR

- locking, left

1шт.

51

1321646C1

PULLEY

- driven, 13-1/2 inch O.D.

1шт.
