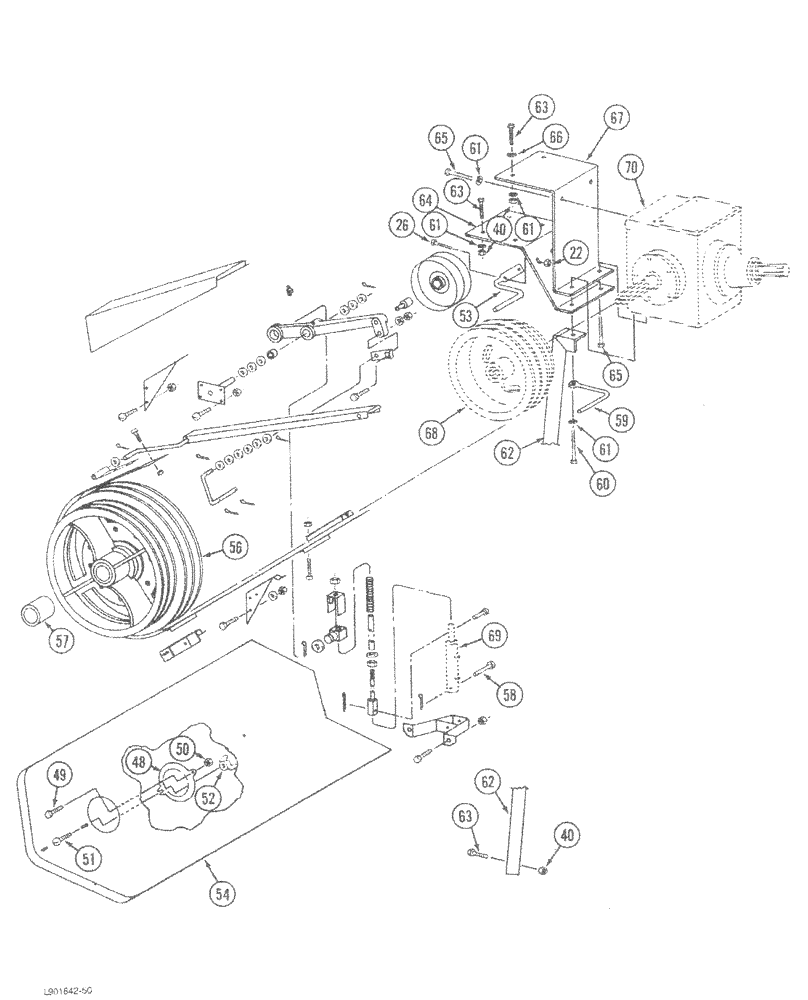

Запчасти Case IH 1620 (9A-26) - FEEDER DRIVE WITHOUT ROCK TRAP, (CONT) (13) - FEEDER

48

188315C1

DOOR

- drive belt

1шт.

49

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

50

86625061

NUT,1/4"-20, GB

NUT - hex prevailing torque, 1/4 inch NC

1шт.

51

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss, 1/4 NC x 1/2 inch

1шт.

52

126177

WING NUT

NUT - wing, 1/4 inch NC

1шт.

53

186444C1

ROD

- drive belt trap

1шт.

54

1303109C93

COVER ASSY

COVER ASSEMBLY - drive belt (With decal)

1шт.

56

184506C91

PULLEY ASSY.

PULLEY ASSEMBLY - feeder

1шт.

57

610435C1

BUSHING,69.93mm ID x 82.65mm OD x 76.2mm L

- pulley

1шт.

58

23948R1

HEADED PIN,3/8" x 3 1/4"

PIN - clevis, 3/8 x 3-1/4 inch

1шт.

59

183233C1

ROD

- upper

1шт.

60

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

61

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

62

185328C1

SUPPORT

- gear case

1шт.

63

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

64

185220C1

SUPPORT

- gear case lower

1шт.

65

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

3шт.

66

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x .095") 1/2", SAE

2шт.

67

185219C1

SUPPORT

- gear case upper

1шт.

68

REF

INSTRUCTION

PULLEY - feeder drive (See figure 9A-4)

1шт.

69

REF

INSTRUCTION

CYLINDER - feeder clutch (See Figure 8-74)

1шт.

70

REF

INSTRUCTION

CASE ASSEMBLY - gear (See figure 9A-18)

1шт.
