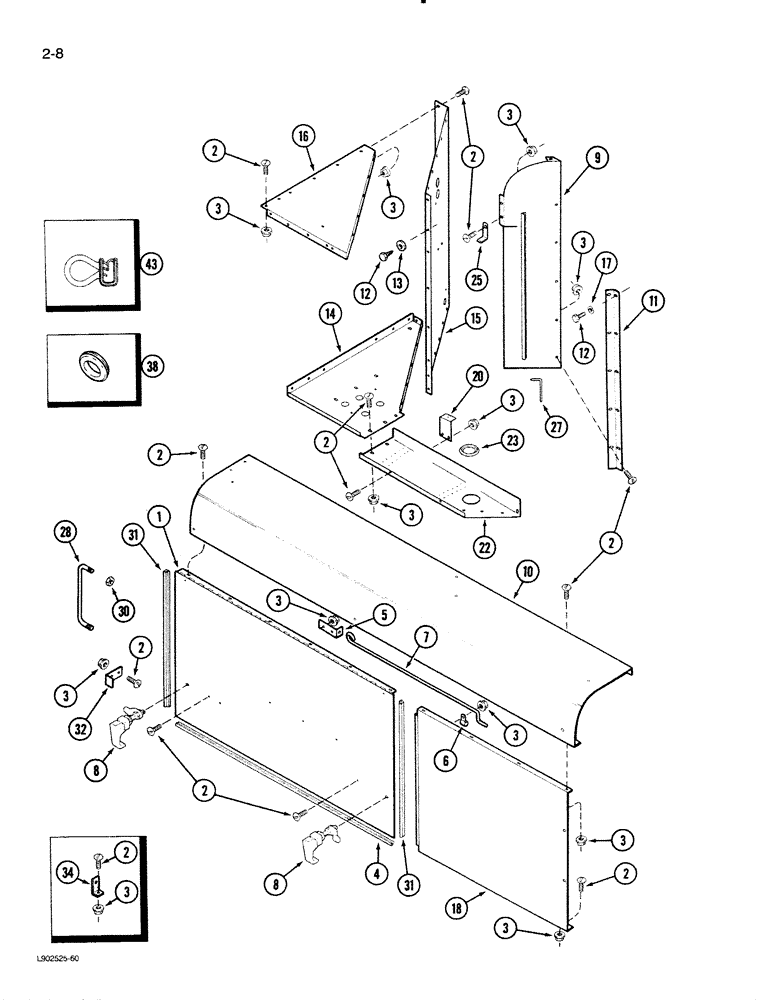

Запчасти Case IH 1620 (2-08) - ROTARY AIR SCREEN CHUTE (01) - ENGINE

1

1338034C1

DOOR

ASSEMBLY - access

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted, 5/16 NC x 1/2 inch

70шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex, 5/16 inch NC

70шт.

4

1347073C1

SEAL

SEAL - door

1шт.

5

1319697C1

SUPPORT

- rod

1шт.

6

362123R1

CLIP

- rod

1шт.

7

183444C1

ROD

- door

1шт.

8

1302494C2

LATCH

- door

2шт.

9

1346918C1

DEFLECTOR

- air

1шт.

10

1346921C1

CHUTE ASSY.

SHEET - top, right

1шт.

11

1346924C1

SUPPORT

- deflector

1шт.

12

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

9шт.

13

195-104

WASHER,3/8"

- flat, 13/32 x 1 x 3/64 inch

4шт.

14

1346925C3

SHEET ASSY.

SHEET - bottom, rear (Grain and Corn)

1шт.

14

1346943C3

SHEET ASSY.

SHEET - bottom, rear (Rice)

1шт.

15

1346926C1

SUPPORT

- rear

1шт.

16

1346920C1

SUPPORT

SHEET - upper

1шт.

17

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

5шт.

18

1321264C1

SHEET

- chute

1шт.

20

1330025C1

SUPPORT

- oil cooler, left

2шт.

22

1346923C1

SUPPORT

SHEET - clean out

1шт.

23

1302758C1

PLUG

- clean out hole

1шт.

25

1330026C1

SUPPORT

- oil cooler, top right (Grain and Corn)

1шт.

25

1330026C1

SUPPORT

- oil cooler, top right (Rice)

2шт.

27

1330027C1

SUPPORT

SUPPPORT - oil cooler bottom, right (Grain and Corn)

1шт.

27

1330027C1

SUPPORT

SUPPPORT - oil cooler bottom, right (Rice)

2шт.

28

1251832C2

HANDLE

- assist

2шт.

30

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex flange lock, 1/2 inch NC

8шт.

31

1319817C1

STRIP

SEAL - door

2шт.

32

1317718C1

BRACKET

- lock

1шт.

34

1317942C1

BRACKET

- radiator door

1шт.

38

1970461C1

GROMMET

- 1-1/2 x 1-1/8 x 7/16 inch (Grain and Corn)

1шт.

38

1970461C1

GROMMET

- 1-1/2 x 1-1/8 x 7/16 inch (Rice)

2шт.

38

28627R1

GROMMET,1 1/8" ID x 1 3/4" x .062", Diag cut

- 1-1/8 x 1-3/4 x 7/16 inch (Grain and Corn)

1шт.

38

28627R1

GROMMET,1 1/8" ID x 1 3/4" x .062", Diag cut

- 1-1/8 x 1-3/4 x 7/16 inch (Rice)

2шт.

43

1315670C3

SEAL

SEAL - radiator top and bottom

2шт.
