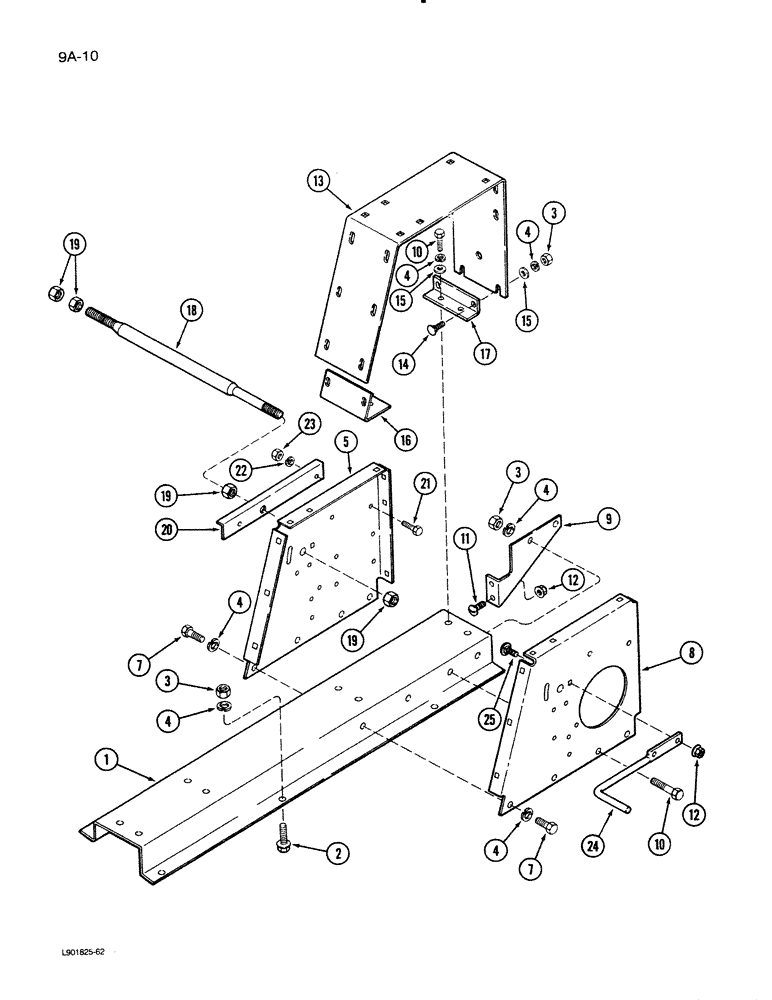

Запчасти Case IH 1620 (9A-10) - SEPARATOR JACKSHAFT SUPPORT (13) - FEEDER

1

1303276C2

SUPPORT ASSY.

SUPPORT - jackshaft

1шт.

2

174985C1

BOLT,Hex Serr, 1/2" - 13 x 1"

- flanged hex, 1/2 NC x 1 inch

2шт.

2

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss, 5/16 NC x 1 inch

2шт.

3

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

17шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

23шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

21шт.

5

1303279C91

SUPPORT ASSY.

SUPPORT ASSEMBLY - left (With decal)

1шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

8

181166C1

SUPPORT

- right

1шт.

9

1303278C1

SUPPORT

- bottom

2шт.

10

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

9шт.

11

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss, 3/8 NC x 3/4 inch

4шт.

12

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

6шт.

13

181167C1

SUPPORT

- top

1шт.

14

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - round head square neck, 1/2 NC x 1-1/4 inch

6шт.

15

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 3/32 inch

10шт.

16

181164C1

SUPPORT

- separator

1шт.

17

181172C1

SUPPORT

ANGLE - rear

1шт.

18

181488C1

ROD

- support

1шт.

19

425-1110

NUT,5/8"-18, G5

4шт.

20

1303280C1

ANGLE

SUPPORT - rod

1шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

425-106

NUT,3/8"-16, Cl 5

2шт.

24

194901C1

ROD

- belt support

1шт.

25

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - round head square neck, 3/8 NC x 3/4 inch

2шт.
