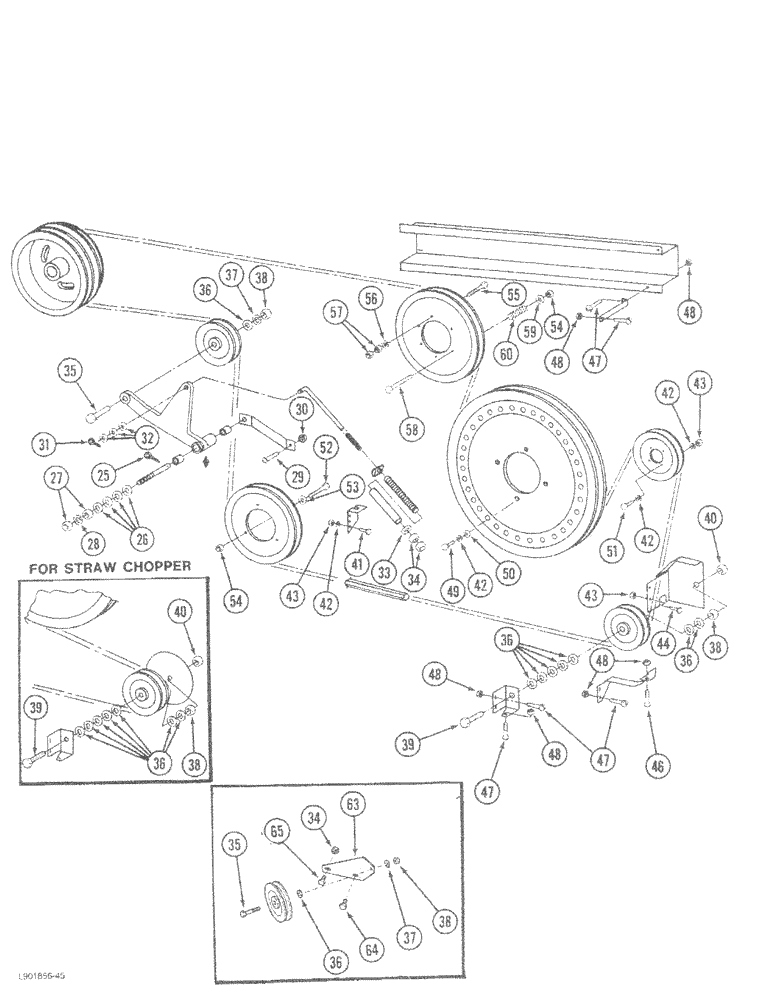

Запчасти Case IH 1620 (9A-06) - RIGHT SIDE BELT DRIVE, (CONT) (13) - FEEDER

25

32-1620

COTTER PIN,1/4" x 1 1/4"

1шт.

26

495-11081

WASHER,3/4", SAE

4шт.

27

425-1012

NUT,3/4"-10, G5

NUT - hex, 3/4 inch NC

2шт.

28

493-41078

LOCK WASHER,Ext Tooth, 3/4"

WASHER - external tooth lock, 3/4 inch ID

1шт.

29

135270

SERRATED SCREW,5/16" - 18 x 3/4"

SCREW - slotted, 5/16 NC x 3/4 inch

1шт.

30

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

NUT - hex flange lock, 5/16 inch NC

1шт.

31

432-1220

COTTER PIN,3/16" x 1 1/4"

1шт.

32

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 0.095")

3шт.

33

495-81162

WASHER,17/32" x 1 1/2" x .179"

WASHER - flat, 17/32 x 1-1/2 x 11/64 inch

1шт.

34

425-108

NUT,1/2" - 13, Gr 5

2шт.

35

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

BOLT - hex, 5/8 NC x 2-3/4 inch

1шт.

36

495-11066

WASHER,5/8", SAE

WASHER - flat, 21/32 x 1-5/16 x 3/32 inch

8шт.

37

492-11062

BEARING WASHER,5/8"

1шт.

38

425-1010

NUT,5/8"-11, G5

2шт.

39

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

40

425-1010

NUT,5/8"-11, G5

1шт.

41

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

42

492-11031

LOCK WASHER,5/16"

15шт.

43

425-105

NUT,5/16"-18, G5

9шт.

44

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

BOLT - hex flange lock, 5/16 NC x 3/4 inch

2шт.

46

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

47

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

11шт.

48

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

NUT - hex flange lock, 3/8 inch NC

12шт.

49

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

50

28588R1

WASHER

WASHER - flat, 11/32 x 11/16 x 3/64 inch

4шт.

51

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

52

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

3шт.

53

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16")

3шт.

54

9413979

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

6шт.

55

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

BOLT - hex, 3/8 NC x 3-1/2 inch

3шт.

56

492-11038

LOCK WASHER,3/8"

3шт.

57

129-103

NUT,Hex, 3/8" - 16, Gr 5

6шт.

58

113-258

BOLT,Hex, 3/8" - 16 x 6", Gr 5

3шт.

59

614452R1

WASHER

WASHER - flat, 13/32 x 1-1/4 x 3/32 inch

3шт.

60

REF

INSTRUCTION

SPRING - slip clutch

3шт.

63

1338187C1

BRACKET

BRACKET - belt idler (Export only)

1шт.

64

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

65

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

1шт.
