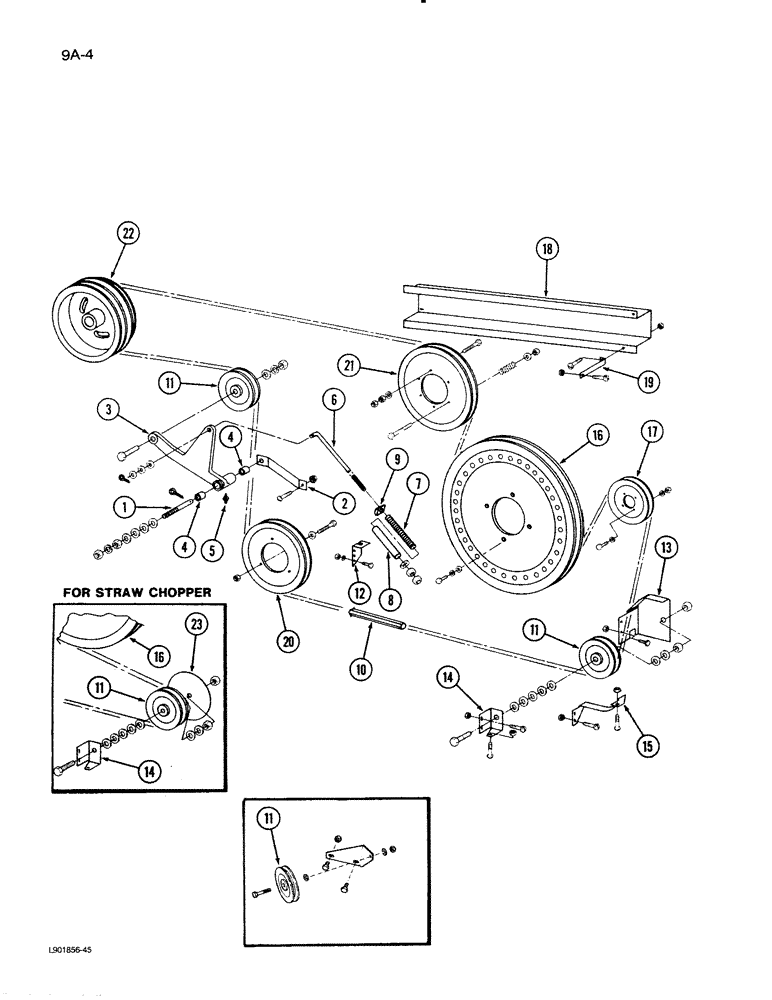

Запчасти Case IH 1620 (9A-04) - RIGHT SIDE BELT DRIVE (13) - FEEDER

1

188298C2

STUD

- elevator drive pivot arm

1шт.

2

181313C1

SUPPORT

- pivot right drive

1шт.

3

193447C91

ARM

LEVER ASSEMBLY - elevator jackshaft idler, Includes: Ref. 4

1шт.

4

556448R1

BUSHING,19.07mm ID x 22.23mm OD x 25.4mm L

- idler lever

2шт.

5

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

6

194315C1

ROD

- elevator drive idler lever

1шт.

7

155311C1

SPRING

- elevator drive idler lever

1шт.

8

1310264C1

TUBE,1.185" ID, 1.38" OD

- idler lever spring

1шт.

9

194652C1

PIVOT

BAR - elevator drive pivot

1шт.

10

183049C1

BELT,22.33 mm W x 7766.69 mm L

V-BELT , Drive, Right (Without straw chopper) 22.33 mm W x 7766.69 mm L

1шт.

10

186509C2

BELT,0.879" W x 255.99" L

V-BELT , Drive, Right (With straw chopper) 0.879" W x 255.99" L

1шт.

11

673214R91

PULLEY

- tightener, 7-5/16 inch O.D.

2шт.

12

193450C2

BRACKET

SUPPORT - elevator drive bar

1шт.

13

183089C2

SHIELD

- fixed idler

1шт.

14

1310448C1

SUPPORT ASSY.

SUPPORT - fixed idler

1шт.

15

1303028C1

GUIDE

- belt (Not for use with straw chopper)

1шт.

16

1979876C1

PULLEY

- shaker shaft driven, 24 inch O.D.

1шт.

17

195161C1

PULLEY

- beater drive, 8-3/8 inch O.D.

1шт.

18

186637C1

SHIELD

- beater drive

1шт.

19

186352C1

SUPPORT

- beater drive shield

2шт.

20

193948C1

PULLEY,39.61mm W x 254mm OD

- fan driven, 9-3/4 inch O.D.

1шт.

21

183325C1

PULLEY

- jackshaft driven

1шт.

22

182677C1

PULLEY

- feeder drive, 10 inch O.D.

1шт.

23

186483C1

GUARD ASSY.

SHIELD - idler pulley (For straw chopper)

1шт.
